Wartsila RT-flex50-D User Manual

Maintenance
2751−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 7

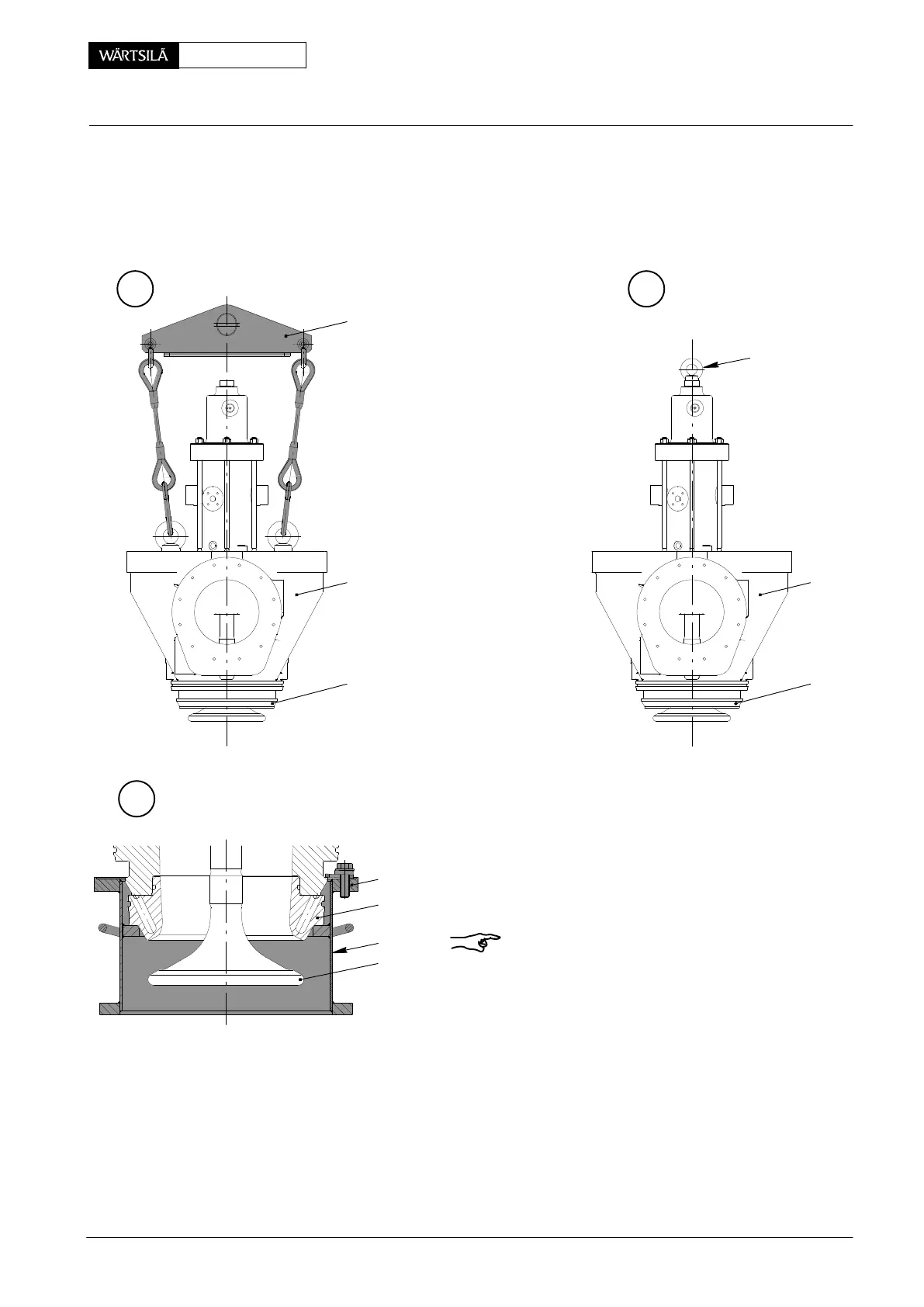

1.2 Transport of exhaust valve
⇒ Use suspension device 94265 (Fig. ’D’) or RUD-eye bolt ’RC’ (Fig. ’E’) to pull
the complete exhaust valve out of the cylinder cover and for transport.
1.3 Laying down the exhaust valve
⇒ If the exhaust valve should be laid down, fir
st
put it in valve protector 94262, then fix it b
y
clamping it with three straps 13 and the co
r-
responding screws.
Remark: Never place the exhaust valve on it
s
spindle.
Every turn of valve spindle 6 with regard to valv
e
seat 14 may cause scratches on the joint faces!
D
F
E
013.497/05
7
14
94265
7
14
13
14
94262
6
RC
013.498/05
2010
R
emoval and Fitting of Exhaust Valve, Replacing of Waisted Studs
