Wartsila RT-flex50-D User Manual

Maintenance
5801−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 3
3. Fitting of connecting element

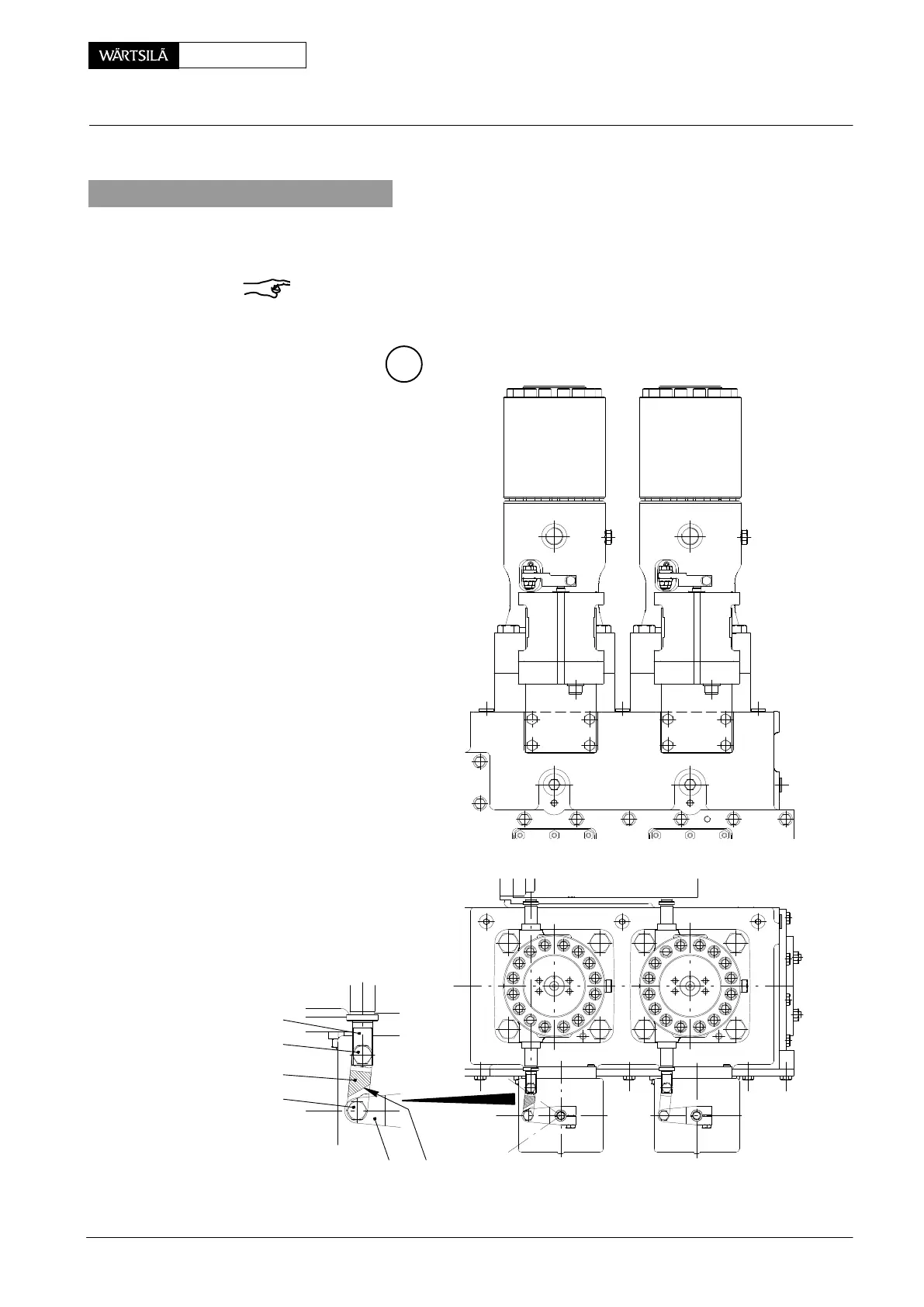

⇒ Join connecting element 8 with lever 5 and toothed rack 9 of fuel pump 1 using
set screws 10.
Remark: The connecting element must be fitted in such a way that its spot-face 11
points to lever 5.
C
012.882/05
9
10
10
8
5 11
R
egulating Linkage: Adjusting with Heinzmann StG 10-01 Actuato
r
2010
