Maintenance5556−1/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
8/ 9
(

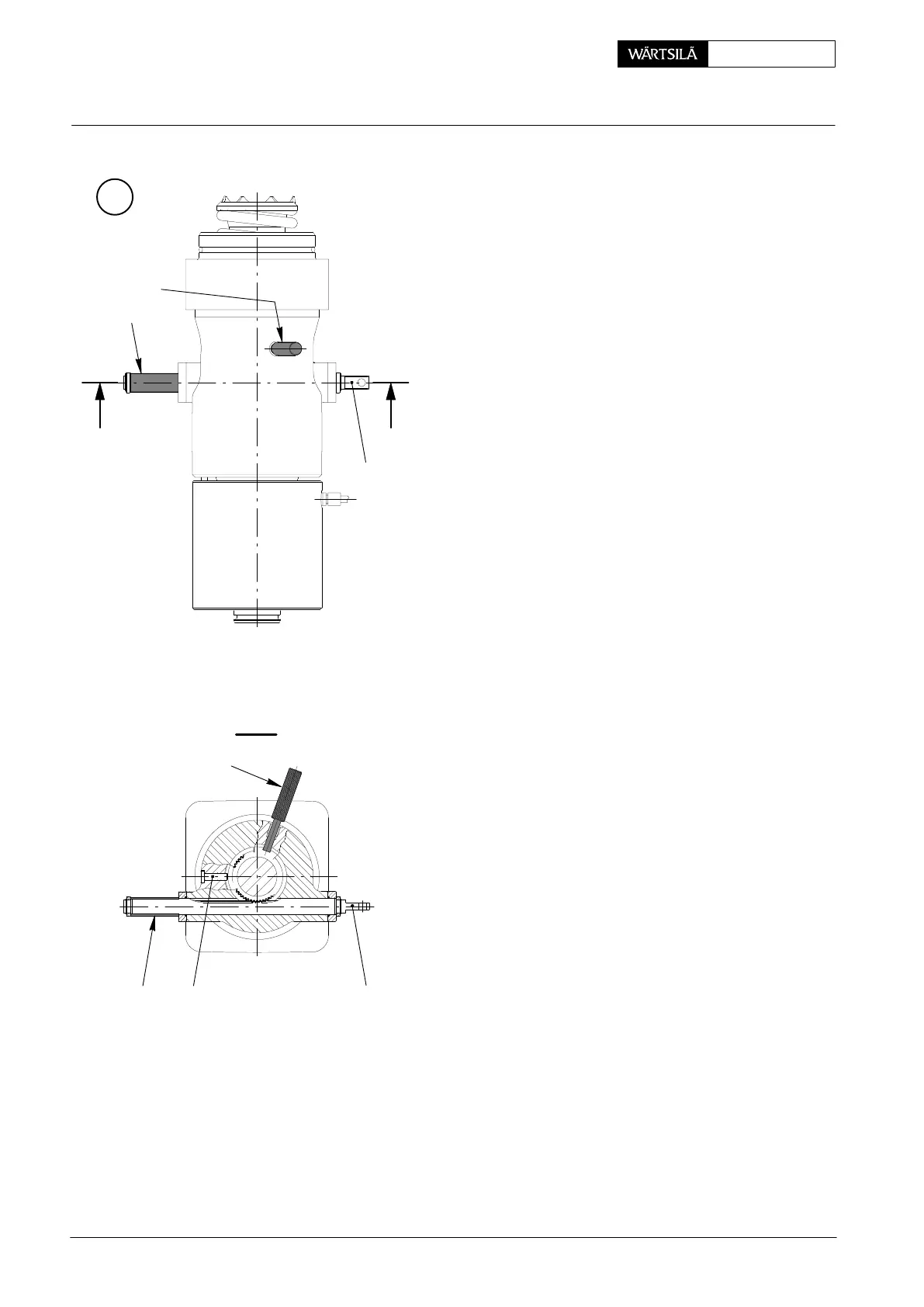

4.7 Checking the plunger position
⇒ Bring regulating rack 25 to the position shown in Fi
g.
’N’ and place spacer 94555.
⇒ Remove screw plug from the checking bore and in
-
sert checking gauge 94556 in its place till the sto
p.
⇒ Remove spacer 94555 again and check whethe
r
the regulating rack is blocked.
With blocked regulating rack the plunger is correct
ly
fitted.
⇒ After checking remove checking gauge, refit an
d
tighten screw plug with Cu-joint.
N
I I
I - I
94556
2094555 25
94555
008.657/00
008.658/00
94556
25
2010
F
uel Pump: Dismantling and Assembling
