Wartsila RT-flex50-D User Manual

Maintenance
6420−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
1/ 2
Key to Illustrations:
1 Scavenge air receiver 6 Screw
2 Auxiliary blower 7 Locking plate
3 Cover 8 Holder
4 Cover 9 Relief valve
5 Air flap 10 Drain
1. Inspection of air flaps
In the course of periodic cleaning of the scavenge air receiver, the air flaps must be
checked for damage, movability and fouling.
To check air flaps 5 (Fig. ’B’) in scavenge air receiver 1, the relevant covers 3 and 4
are to be opened.
For the removal of several air flaps, first unbend locking plates 7 and loosen
screws 6. Subsequently the air flaps can be removed as single unit.

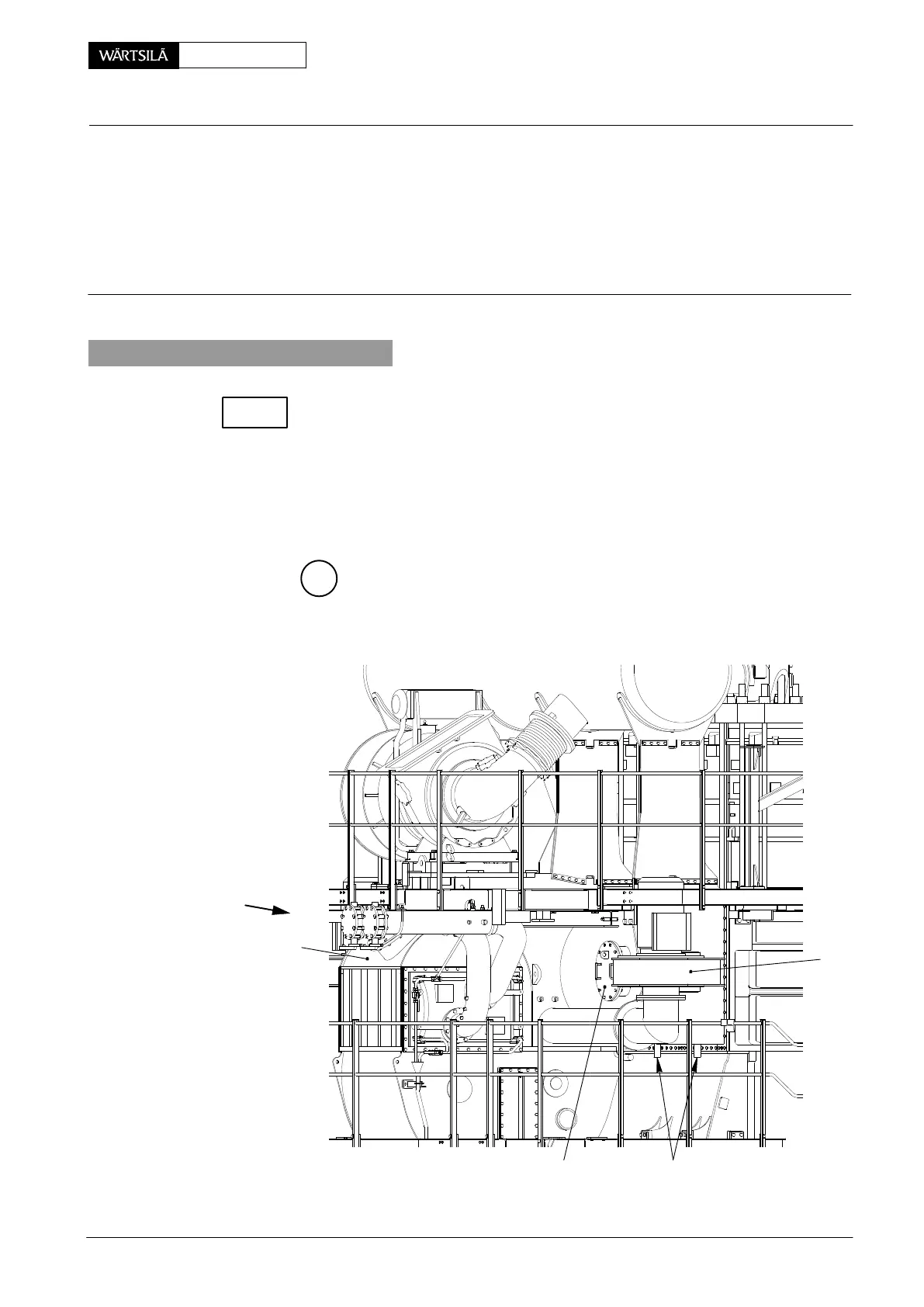

A
018.395/09
10
2
1
I
VIEW FROM
DRIVING END
4
S
cavenge Air Receiver
C
hecking the Air Flaps and Cleaning the Scavenge Air Receiver
2010
CHECK
