Wartsila RT-flex50-D User Manual

Maintenance
6708−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 10
2. Removal and fitting of 1 x water separator
2.1 Removal
018.322/09
I
I
C
x
H
1
H
2
12
94667
94667
b
94667f
H
3
94667d
3

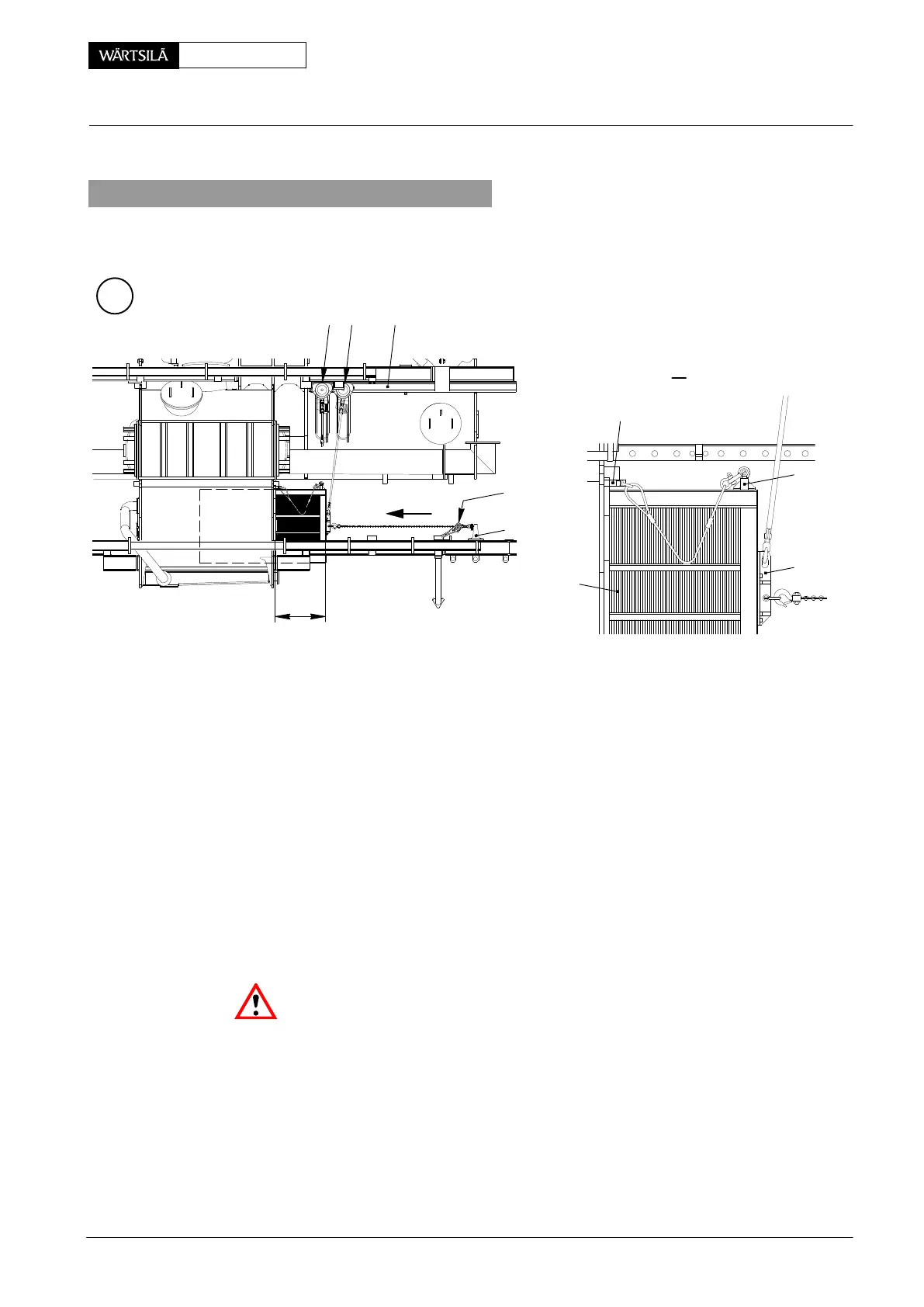

⇒ Mount the trolleys with spur-geared chain blocks H
1
and H
2
(WLL 500 kg
each) on rail 12.
⇒ Attach lifting and withdrawing gear 94667 and holder 94667f.
⇒ Fasten manual ratchet H
3
to the holder and connect it to the shackle of gear
94667.
⇒ Hook spur-geared chain block H
2
in gear 94667.
⇒ Using manual ratchet H
3
carefully pull out water separator 3 (242 kg) from the
receiver by approx. ’x’ = 660 mm.
⇒ Install lifting tool 94667b and limiter 94667d.
Attention! Note the length = 1187 mm of the wire rope corresponding to a water
separator combined with one SAC.
2010
R
emoval and Fitting of Water Separator
