Maintenance
9403−5/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
27/ 38

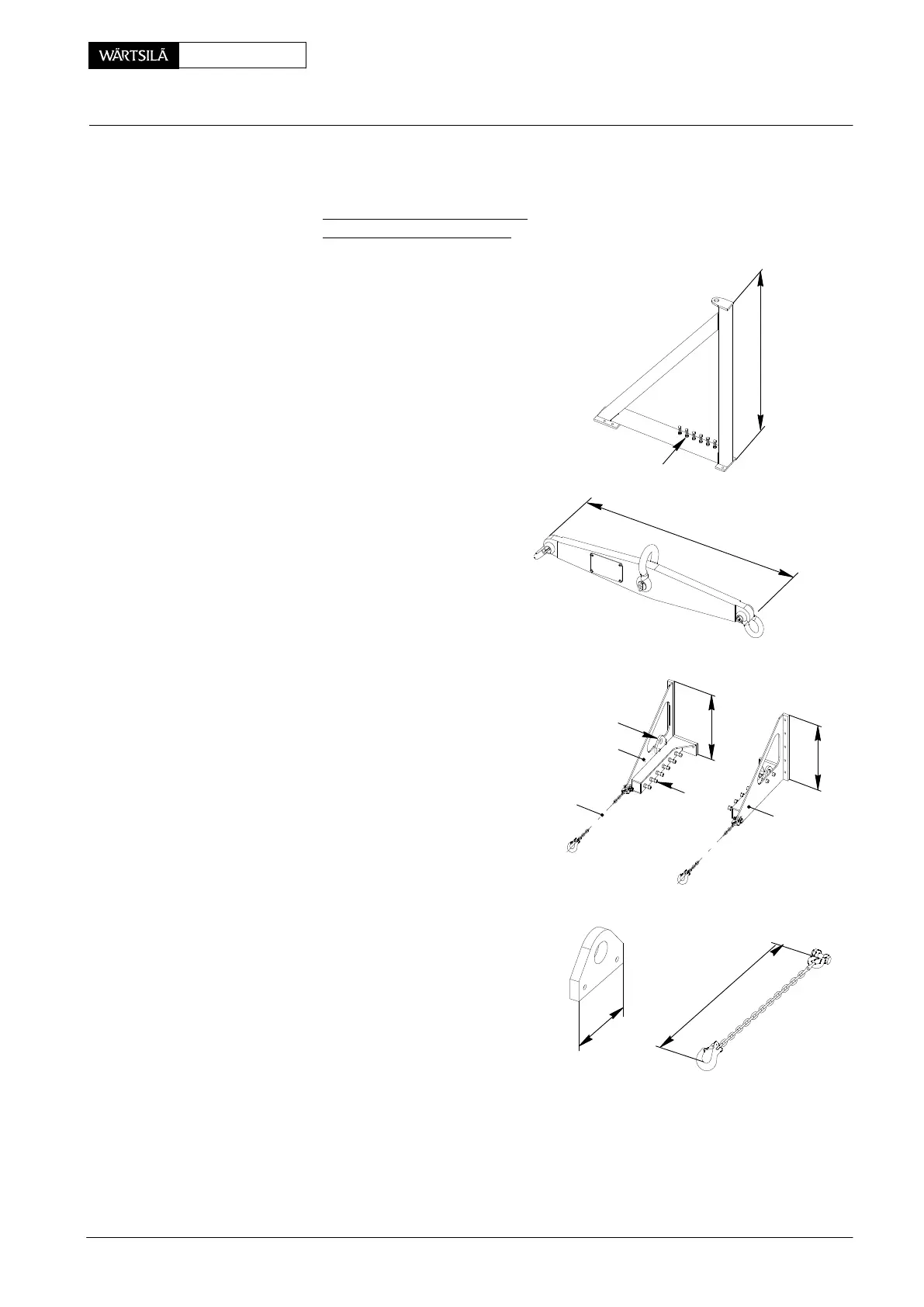

Tools for removal and fitting of
scavenge air cooler SAC261 & SAC265 types
engines with ABB−A165, A170, A175
turbochargers or
engines with MET53MB, MET60MB
turbochargers
(with Integrated Lifting IL)
94661−IL 1 Support
including: 6 Screws M12x45
X = 1220 mm
X
DP
WCH00113
94663−IL 1 Lifting plate
including: 1 Shackle (WLL 6500 kg)
2 Shackles (WLL 4750 kg)
X = 779 mm
(SAC261: WLL 900 kg at ( max. 135_)*
(SAC265: WLL 1200 kg at ( max. 135_)*
WCH00113
X
*
94663a−IL
94663b−IL
1
1
Support LEFT
including: 1 Lug
1 Safety chain
8 Screws M16x40
X = 600 mm
Support RIGHT
including: 1 Lug
1 Safety chain
8 Screws M16x40
X = 600 mm
X
94663b−IL
X
94663a−IL
94663d
94663c−IL (DP)
DP
94663c−IL
94663d
2
2
Lugs
X = 155 mm
Safety chains
X =1222 mm (SAC261)
X =1654 mm (SAC265)
(WLL 1000 kg)
X
016.822/08
X
2010
