Maintenance
3326−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
1/ 3

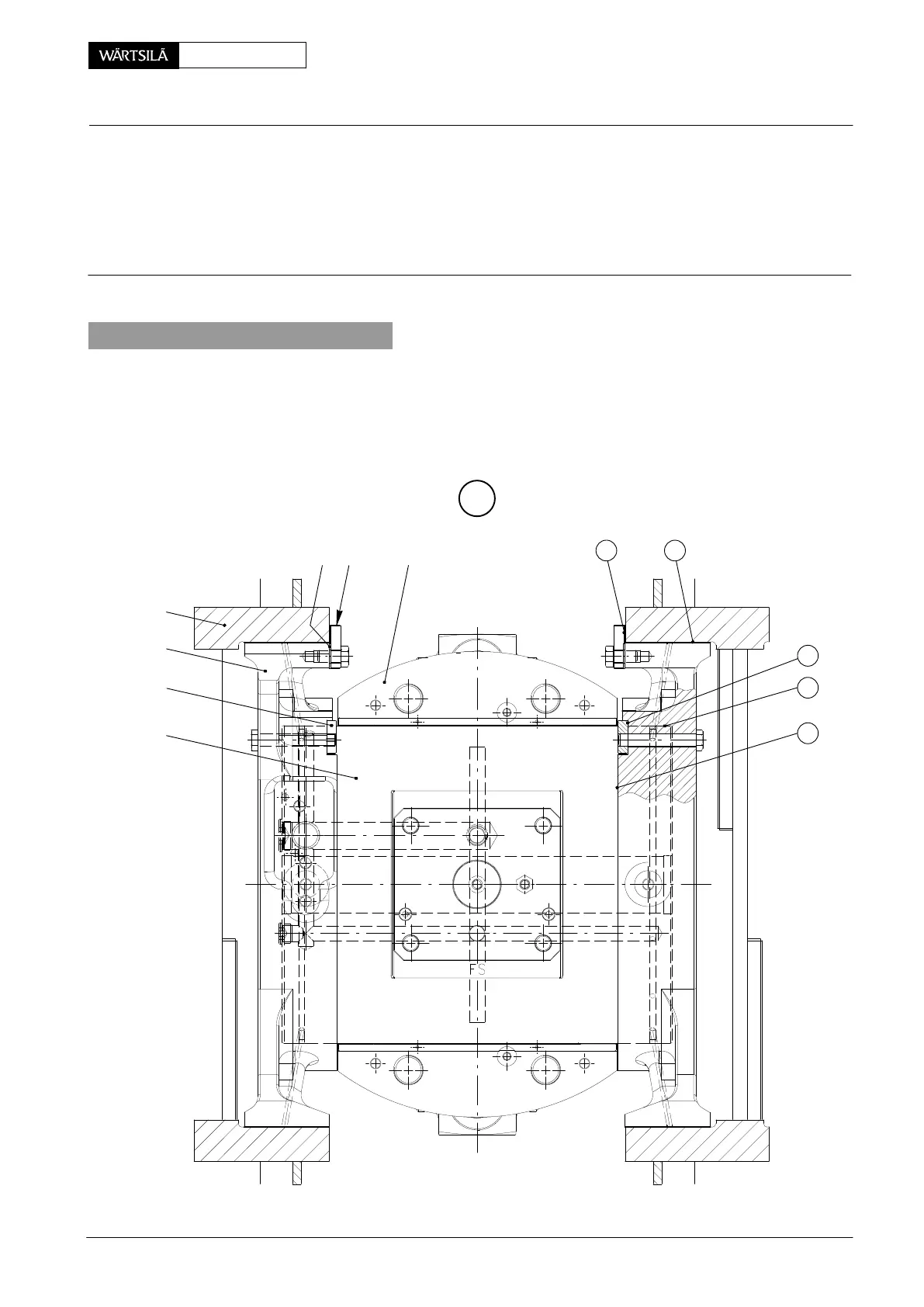

Tools: Key to Illustrations:
1 Feeler gauge 94238 1 Crosshead pin 5 Top end bearing
2 Guide shoe 6 Guide rail
3 Holding plate 7 Shim
4 Guide way in engine column 8 Screw
1. General
On the occasion of an overhaul or when a crosshead has been removed, the vari-
ous running clearances have to be measured and compared with the values found
in the Clearance Table 0330−1.
4
5
3
1
A
4
013.402/05
2
2
3
1
67 5
FUEL SIDE
rosshead
hecking the Clearances and Fitting the Guide Shoes
