Wartsila RT-flex50-D User Manual

Maintenance5552−2/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
4/ 11
4. Removal of camshaft
4.1 Removal of supports

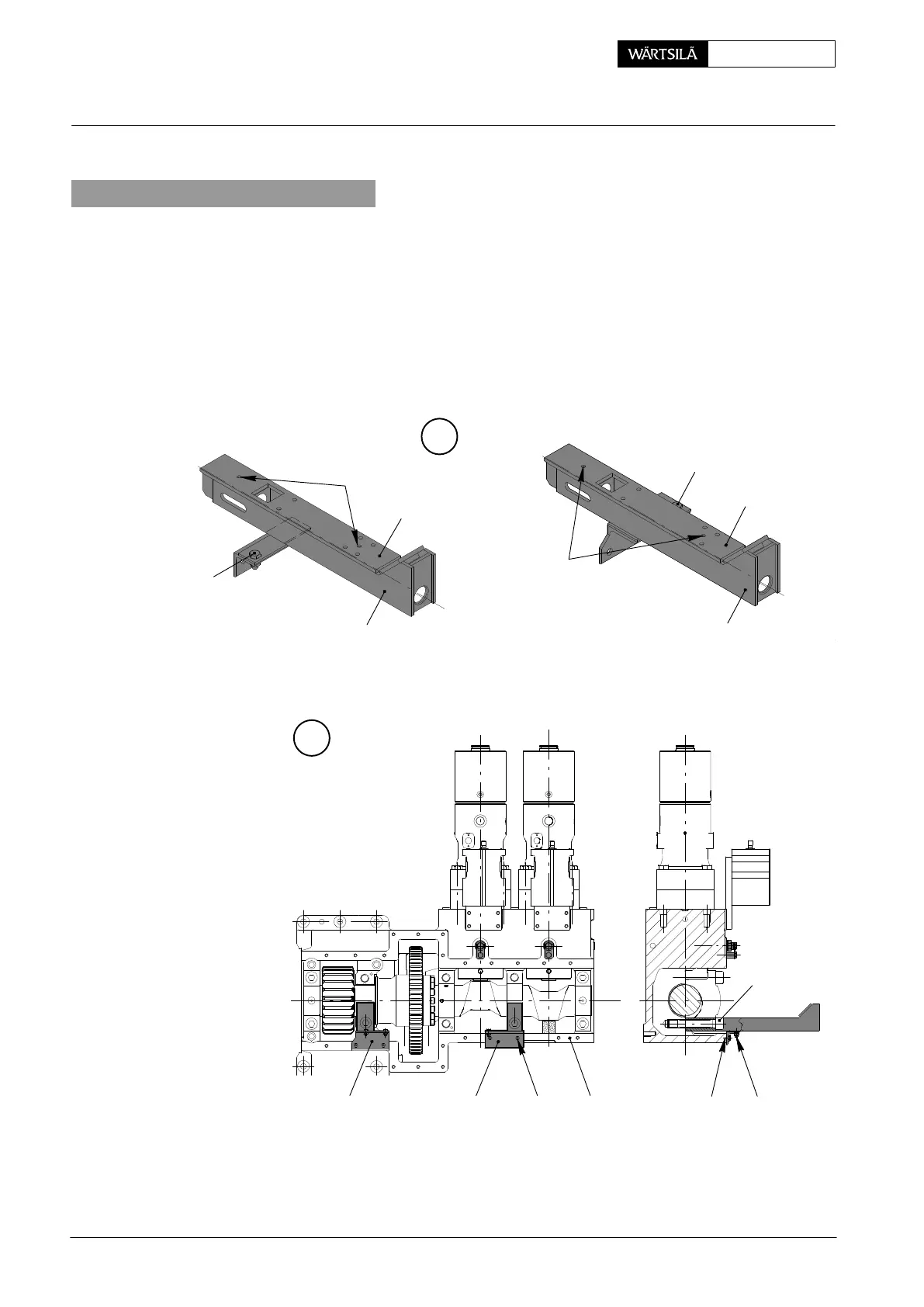

⇒ Loosen screws 13 and remove covers 14 from supports 94566 and 94566a.
⇒ Loosen screws 15 a bit.
⇒ Fasten supports 94566 and 94566a to housing 10 as follows, using:
− waisted screws 7 belonging to the bearing cover as shown in Fig. ’G’ and
− screws 16 (to cover 3 in Fig. ’A’) and then tighten screws 15.
F
13
013.132/0
5
13
15
14
94566a
15
14
94566
012.984/05
94566a 94566 16 10
7
16 15
G
2010
S
upply Unit: Removal and Fitting of Camshaft and Bearing Shells
