Maintenance
3130−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 4
B
3
KS
3
5
M10x1
PB
M10x1
4
KS
PB
7
7
007.964/97

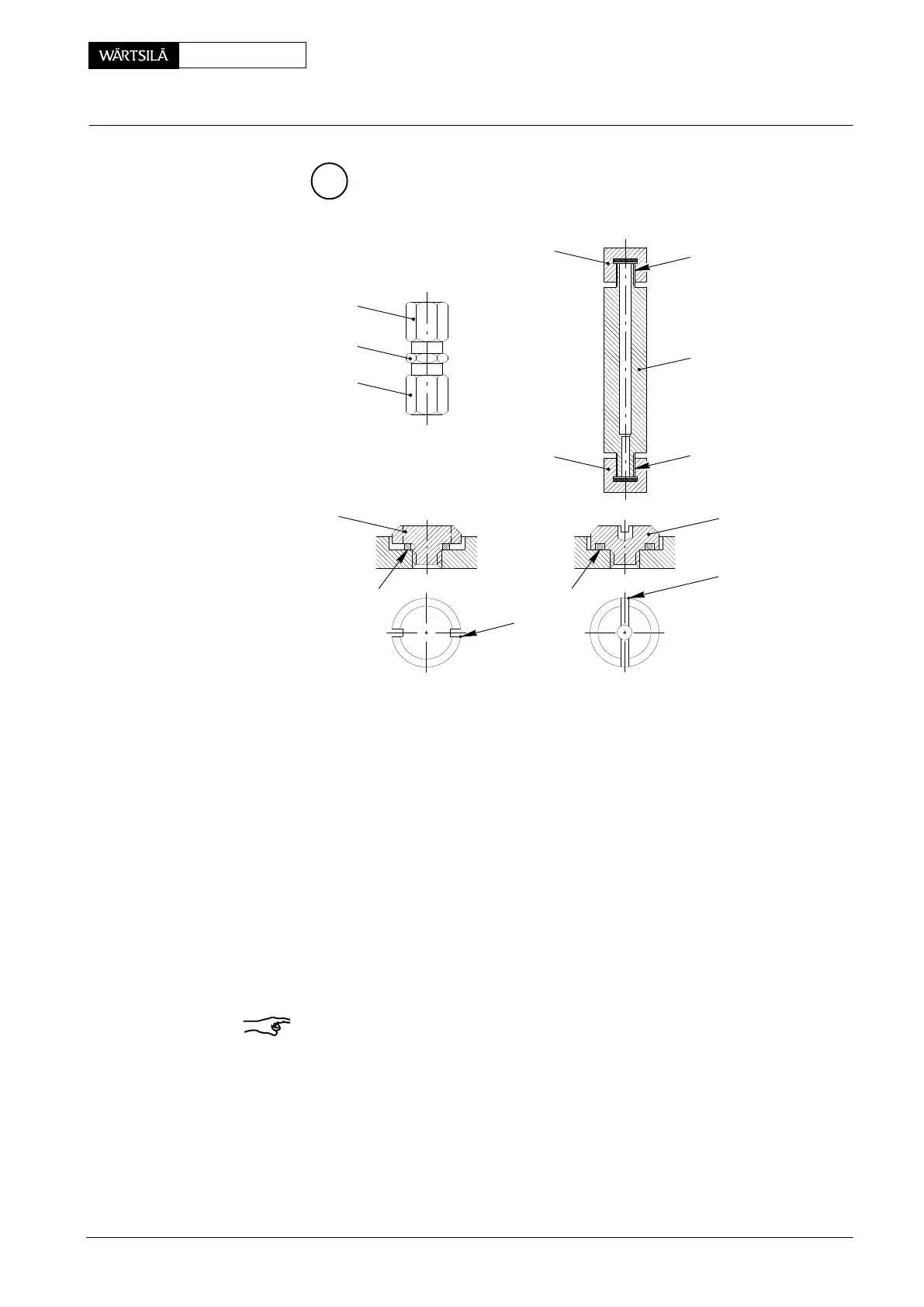

SAMPLE CONTAINERS
Hasse & Wrede
Metaldyne
and STE
5
/
16
” BSF (M10)
3
/
8
” BSF (M16)
If a sample is not obtained by the method described, proceed as follows:
D Leave sample container in position.
⇒ Remove the opposite screw plug, connect a compressed air supply and apply
about 3.5 bar pressure.
D Only dried and filtered air may be used (connections and air hose must be
clean, free from any fouling).
⇒ As soon as fluid reaches open end of sample container shut off compressed
air supply and then fit one of the two cap nuts 7 to the sampling container.
⇒ Disconnect compressed air supply. Remove sample container and fit the
other cap nut 7.
⇒ Re-fit the corresponding screw plugs to all withdrawal openings.
⇒ Tighten and lock the screw plugs as already mentioned under ’Taking the
sample’.
Remark: The special sample container permits drawing a specific quantity of sili-
cone oil from the damper. The total number of samplings should be limited to 10.
