Maintenance
3403−1/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
5/ 8
4.2 Removal
Remark: Loosen and remove all screws for the screwing piston rod gland / cylin-
der block (see 2303−1).
Remove the antipolishing ring from the collar of the cylinder liner (see 2124−2).

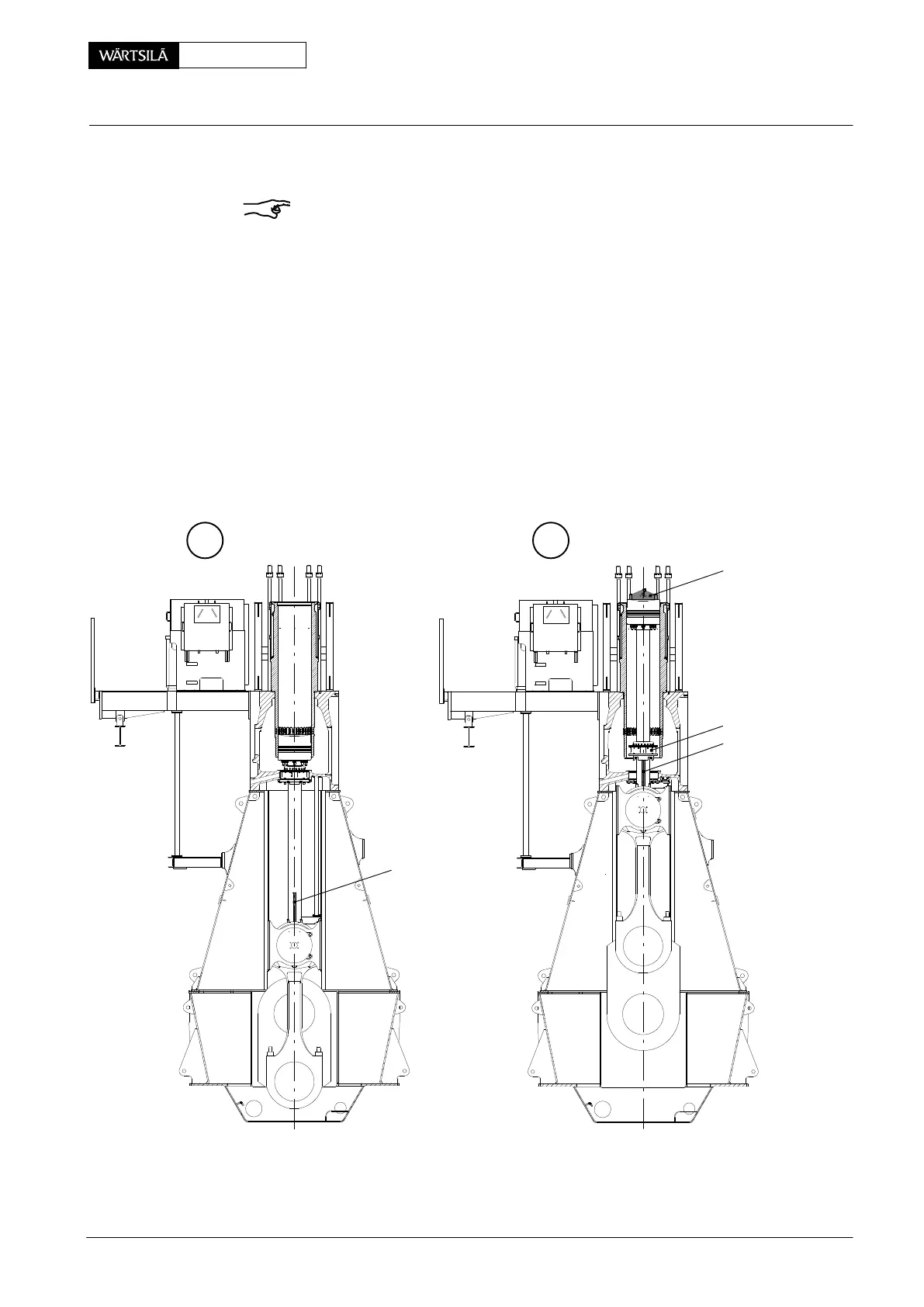

Screw fasten both distance holders 94345 to the piston foot (Fig. ’D’).
Turn crank to T.D.C. whereby the piston rod gland is pushed out of its seating
in the cylinder block by distance holders 94345 (Fig. ’E’).
Use tap 94348 to clean threaded holes of combustion residue in the piston
crown.
Mount suspension device 94341 to piston crown.
D Before pulling the piston out, the crosshead pin and the top end bearing must
be protected, so that entry of dirt into the top end bearing is absolutely pre-
vented.
D E
94345
94345
12
94341
018.387/09
018.388/09
50−D / 2010
Piston: Removal and Fitting
