Wartsila RT-flex50-D User Manual

Maintenance
3303−3/A1
RT-flex50-D
Wärtsilä Switzerland Ltd
3/ 6

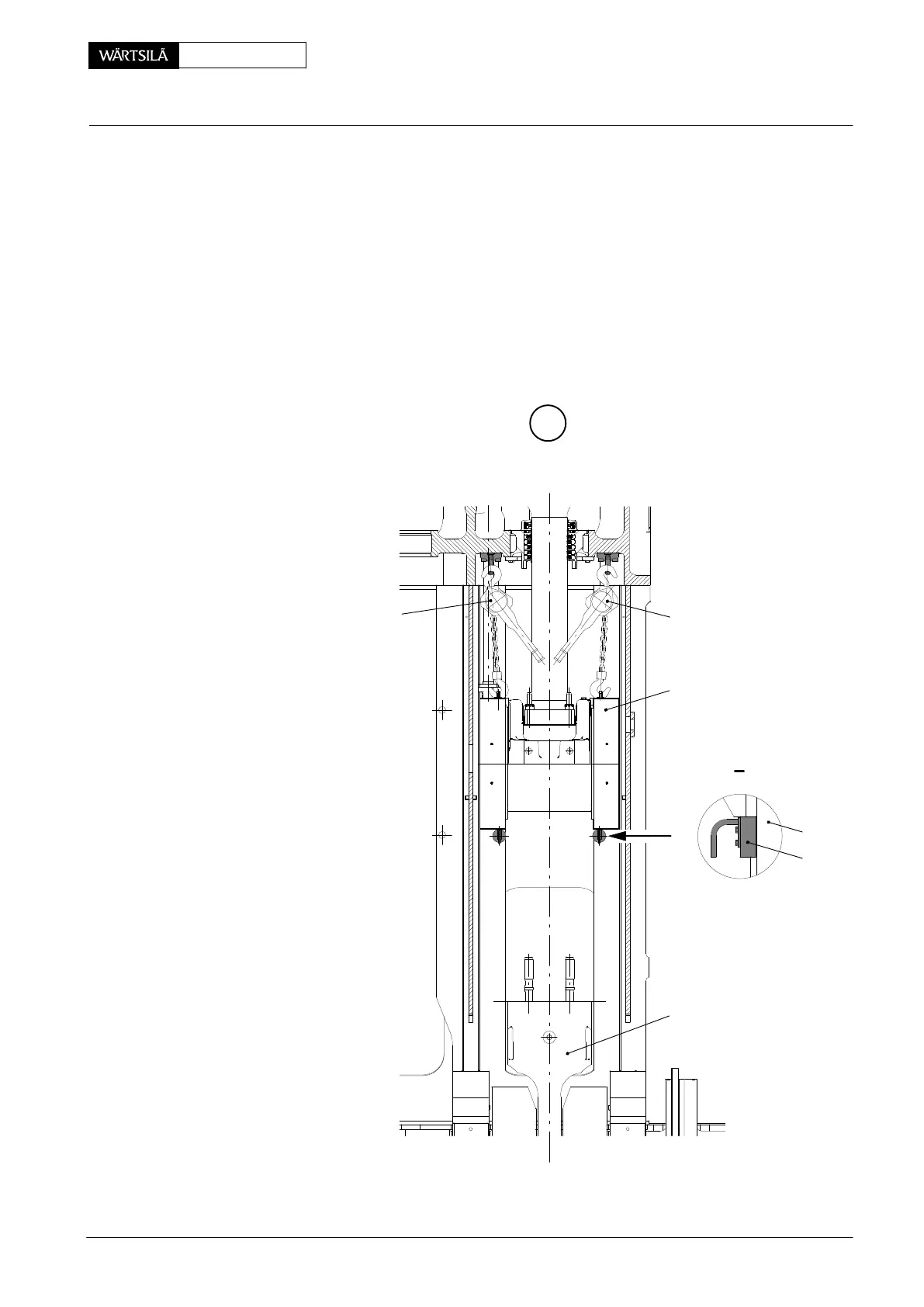

⇒ Lift crosshead pin 3 beyond the lower bores in guide ways 9 provided for re-
taining pins 94323.
⇒ Insert four retaining pins into the guide ways.
⇒ Carefully relieve lifting tackles ’HZ’ till the guide shoes come to rest on the re-
taining pins.
If, however, not all retaining pins touch the guide shoes, turn them such that
their eccentrics contact the guide shoes.
⇒ Disconnect and remove the lifting tackles ’HZ’.
C
2
HZ
HZ
6
9
9432
3
I
I
013.627/05
2010
