Maintenance9403−5/A1 RT-flex50-D
Wärtsilä Switzerland Ltd
10/ 38
94201
94202
94202b
94202c
94202e
94202f
94202g
94202h
1
1
2
4
2
4
2
4

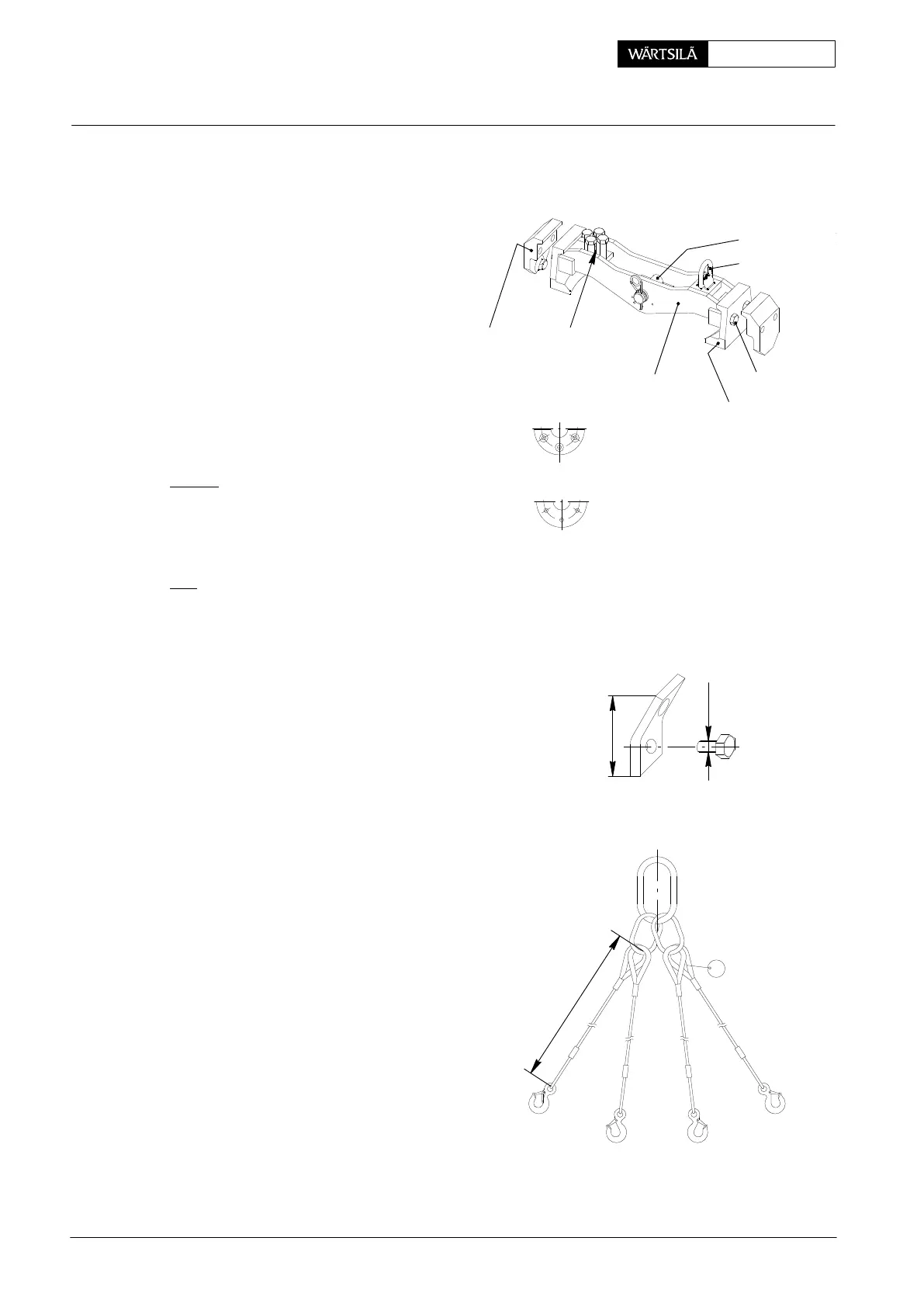

Device
for fitting and transporting a cylinder liner,
consisting of:
Lifting gear
X = 786 mm
(WLL 2470 kg at pin)
(WLL 2240 kg at lifting ring)
Distance plates
Distance plates
Fixing blocks
for removal and fitting of a cylinder liner
(without
water guide jacket)
Screws M24x55
Fixing blocks
for removal and fitting of a cylinder liner
(with
water guide jacket)
Screws M24x90
94202g 94202h
94202
94202e
94202f
013.571/05
013.572/05
013.573/05
Lifting ring
Pin
94208 4 Suspension straps
with screws M12x16
for removal and fitting of antipolishing ring
X = 100 mm
X
010.129/02
M12
94209 1 Lifting hook
for removal and fitting of antipolishing ring
X = 1000 mm
(WLL 800 kg)
012.242/04
X
2010
Standard Tools
