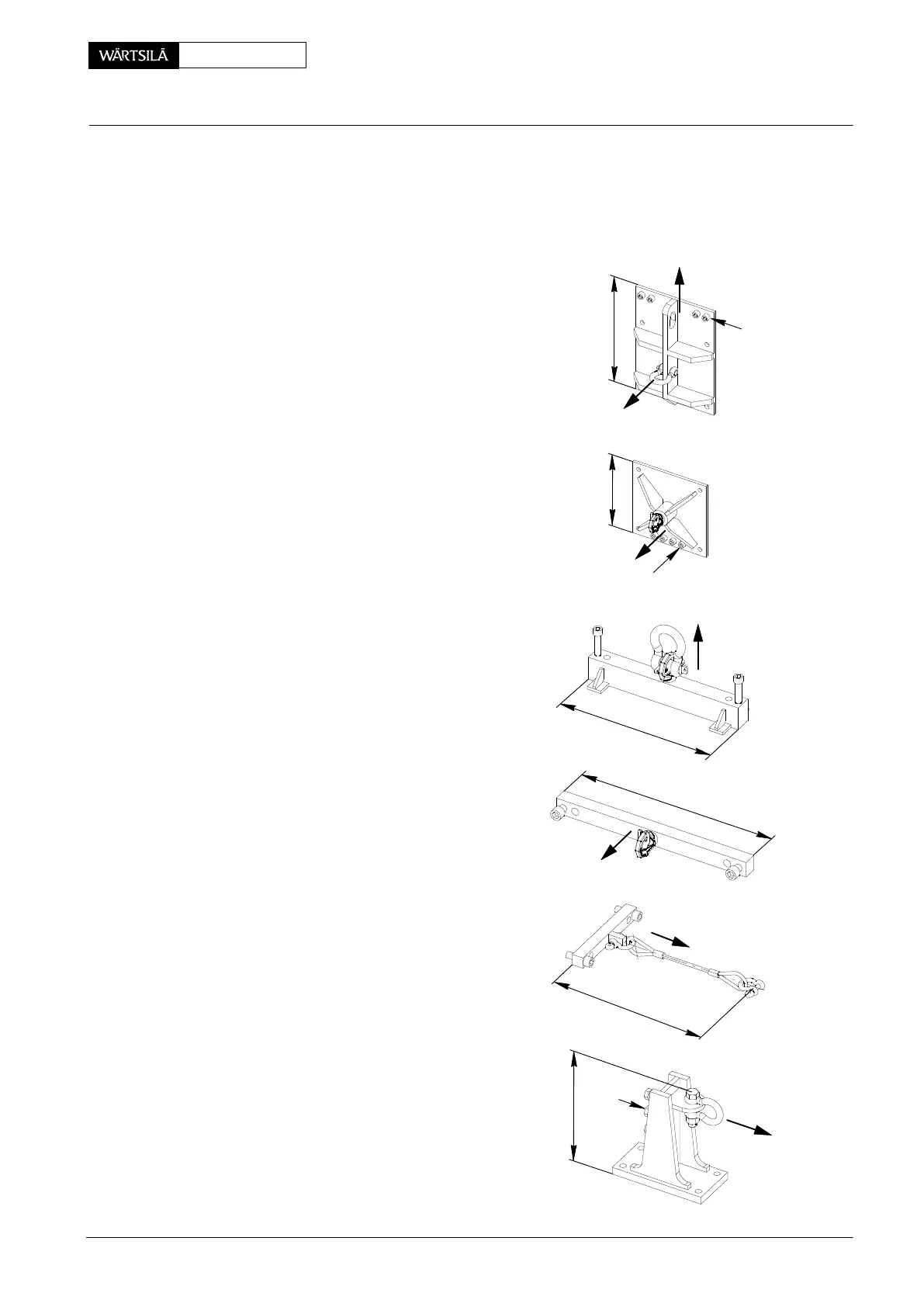

Tools for removal and fitting of water separator
engines with 2 scavenge air coolers
(underslung SAR design)
94667 1 Lifting and withdrawing gear
including: 1 Shackle
4 Screws M12x25
X = 330 mm
(WLL 400 kg and 6000 N)
X
016.829/08
kg
N
DP
94667a 1 Withdrawing gear
including: 1 RUD-eye bolt
4 Screws M12x25
X = 240 mm
(WLL 6000 N)
DP
X
016.829/08
94667b 1 Lifting tool
including: 1 RUD-eye bolt
1 Shackle
2 Screws M12x65
X = 330 mm
(WLL 400 kg)
X
016.829/08
94667c 1 Bracket
including: 1 RUD-eye bolt
2 Screws M16x45
X = 440 mm
(WLL 6000 N)
X
016.829/08
94667e 1 Limiter
including: 1 Wire rope ∅10 mm
2 Shackles
2 Screws M16x50
X = 741 mm (for two SACs)
(WLL 6000 N)
X
018.229/09
94667f 1 Holder
including: 1 Shackle
4 Screws M12x40
X = 217 mm
(WLL 6000 N)
X
018.229/09
