Tool Function Reference
Digital Operator Fn020
& Σ-7-Series Digital Oper-
ator Operating Manual
(Manual No.: SIEP
S800001 33)
SigmaWin+ Setup - Set Origin
Ä
‘Operating Procedure’
page 192
Use the following procedure to set the origin of an absolute linear encoder.
1.
Click the Servo Drive Button in the workspace of the Main Window of the Sig-
maWin+.
2. Select Set Origin in the Menu Dialog Box.
ð
The Set Origin Dialog Box will be displayed.
3. Click the Continue Button.

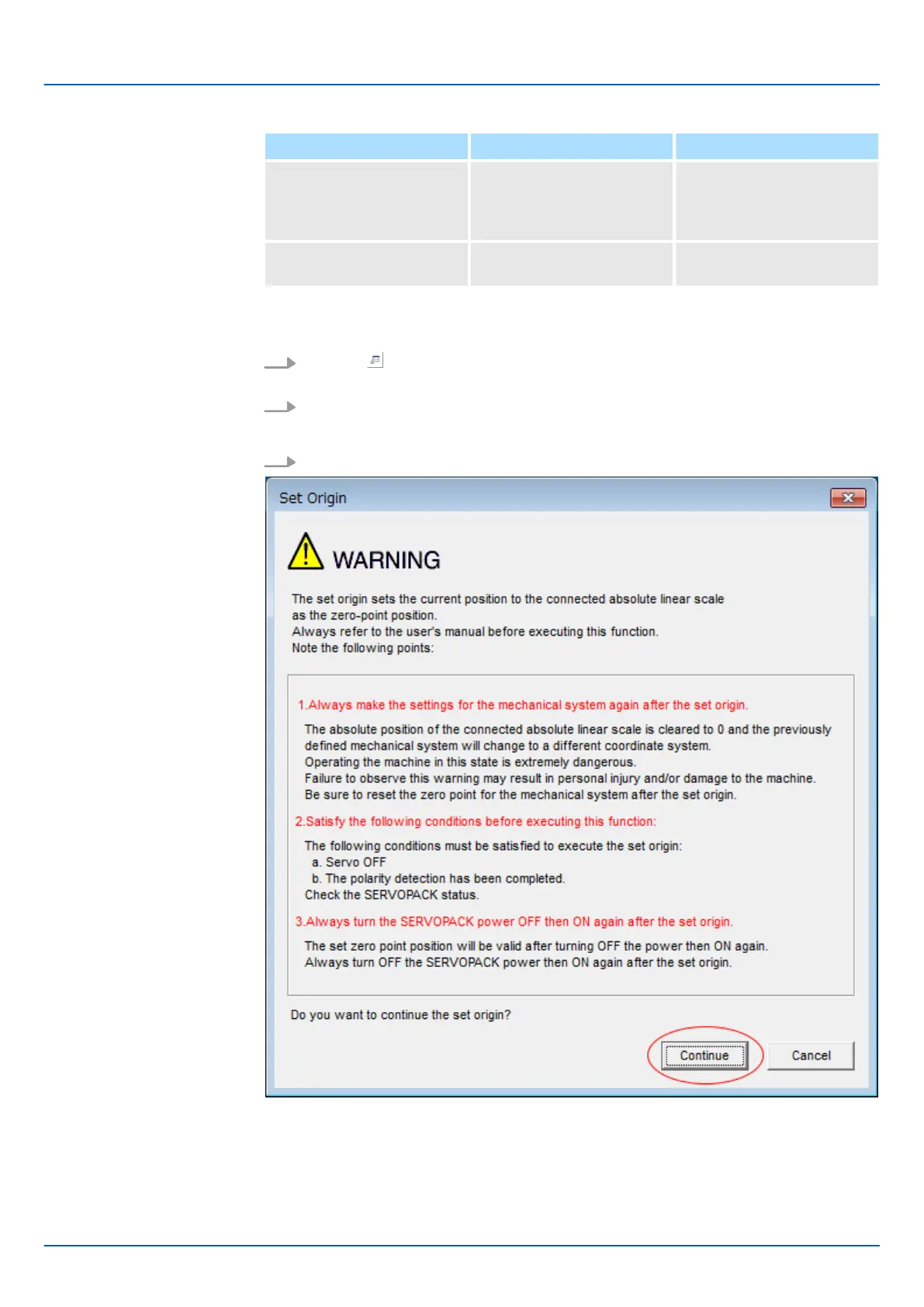

Fig. 141: Set Origin - Warning
Operating Procedure
Sigma-7 Series SERVOPACKs
Basic Functions That Require Setting before Operation
Setting the Origin of the Absolute Encoder > Setting the Origin of the Absolute Linear Encoder
| | PROFINET Communications - SIEP YEUOC7P 02A Revision 0 | en | 192
