Blackmagicdesign URSA - URSA Overview and Connectivity; Top Panel and Underside; Touchscreen Interfaces

Connectors on the right side of the panel let you plug in 12V power via the 4 pin XLR connector.
Video signals up to 12G-SDI can be connected to and from your Blackmagic URSA via the SDI in
and out BNC connectors. A timecode input and output is also provided, plus a reference
BNCinput for syncing your video to an external reference signal.

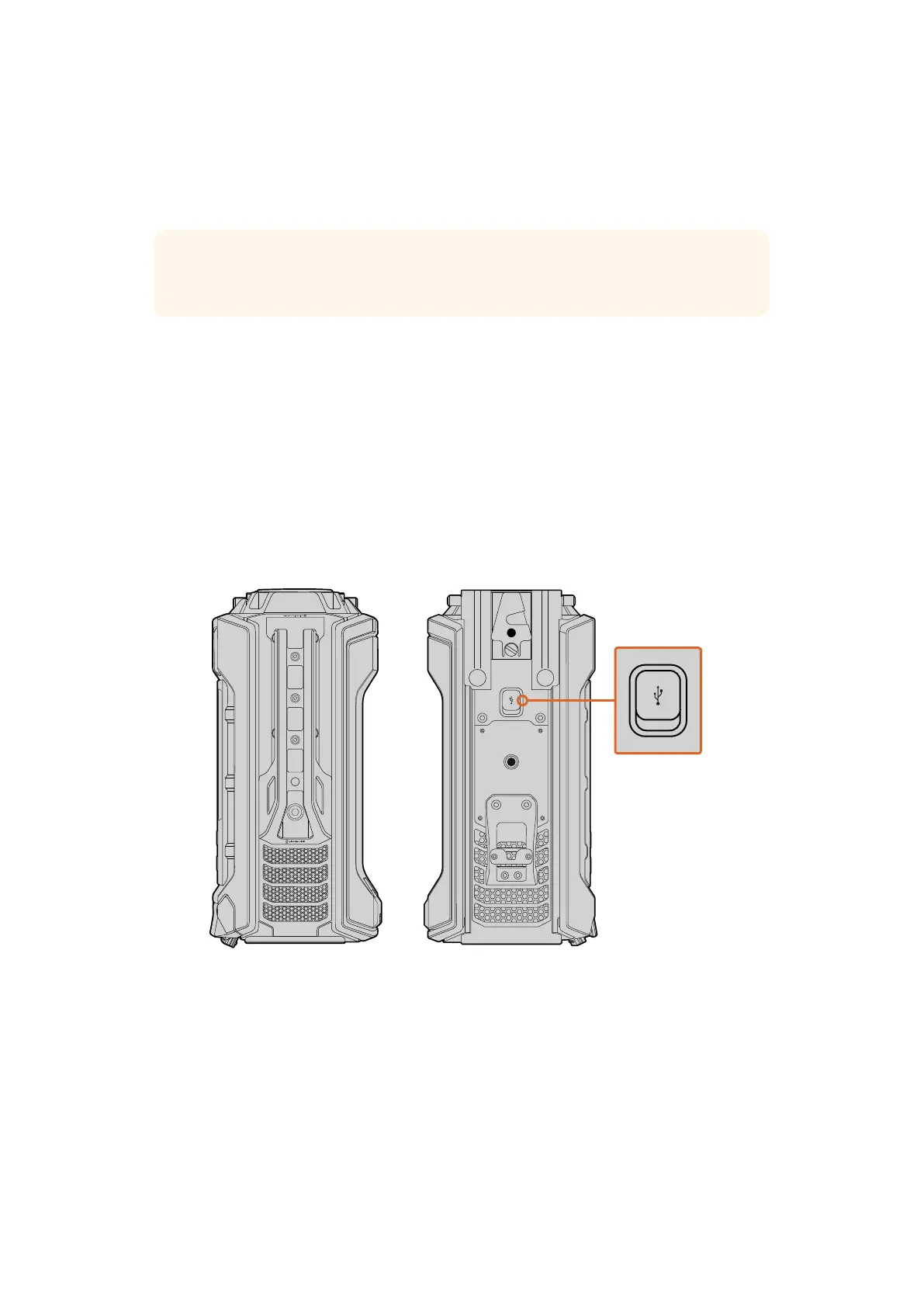

Top Panel and Underside
The top panel contains a series of heavy duty 3/8” mounting points for adjusting the position of
the top handle, or for mounting accessories to your camera.
On the underside you’ll find 15mm LWS rod mounts and VCT 14 base plate support. The rod
mounts conform to the LWS lightweight standard and the base plate support mounts to a
standard V-lock VCT-14 tripod plate commonly used in production environments.
Connect the USB 2.0 port to your computer when updating your Blackmagic URSA’s internal
software. Refer to the Blackmagic Camera Setup Utility section for more information.
Touchscreens
Each work station features a touchscreen so you can monitor your recordings, view scopes,
apply settings and activate camera features.
TIP For more information about the side connectors on your Blackmagic URSA’s rear
panel, refer to the ‘Camera Assist and AudioStation Connectors’ section.
REC
ZOOM
DISP
PGM
1
CFAST
IRIS
FOCUS
REC
IRIS
FOCUS PEAK DISP MENU SLATE
2
IRIS
SDI OUT
0
-6
-12
-18
-24
-30
-36
-42
-48
L R
SDI IN
REF IN
TIMECODE IN
TIMECODE OUT
12V
CH1
SOLO
CH1
MUTE
CH2
MUTE
CH2
SOLO
FOCUS PEAK DISP MENU SLATE
PUSH PUSHPUSH
REC
ZOOM
DISP
PGM
1
CFAST
IRIS
FOCUS
REC
IRIS
FOCUS PEAK DISP MENU SLATE
2
IRIS
SDI OUT
0
-6
-12
-18
-24
-30
-36
-42
-48
L R
SDI IN
REF IN
TIMECODE IN
TIMECODE OUT
12V
CH1
SOLO
CH1
MUTE
CH2
MUTE
CH2
SOLO
FOCUS PEAK DISP MENU SLATE
PUSH PUSHPUSH
2525Blackmagic URSA Overviewand Connectors
