Mounting Batteries
Connecting a third party battery plate lets you
mount V-mount or gold mount batteries.
Mounting V-mount or GoldMount Batteries

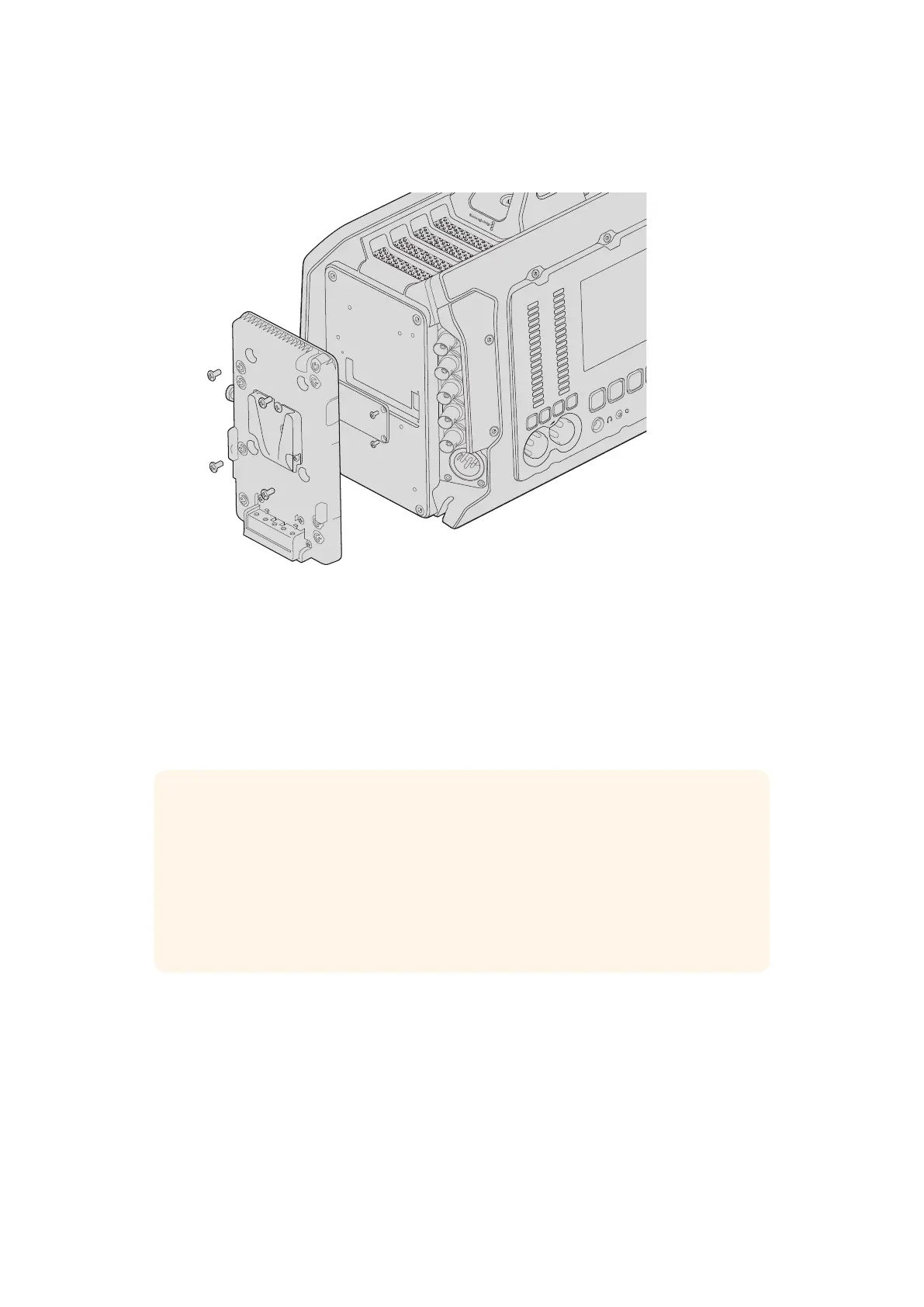

You can easily mount industry standard V-mount or gold mount batteries to Blackmagic URSA.
To mount a battery, you’ll need to attach a Blackmagic V-mount battery plate, a third party
V-mount or gold mount battery plate to your camera’s plate mount.
You can purchase V-mount battery plates from Blackmagic Design resellers, or V-mount and
gold mount battery plates from suppliers of professional digital cinema and video equipment.
Ifyou don’t have an off the shelf battery plate designed for Blackmagic URSA and you want to
modify your own battery plate, then you can use the supplied adapter cable and connector.
Refer to the ‘using your own battery plate’ section for information about how any battery plate
can be modified to use with URSA.
IRIS
SDI OUT
SDI IN
REF IN
TIMECODE IN
L
R
TIMECODE OUT
+12V
CH1
SOLO
CH1
MUTE
CH2
SOLO
CH1
MUTE
FOCUS
PEAK
DISP
AUDIO IN
12V OUT
SDI OUT
MENU
SLATE
0
-6
-12
-18
-24
-30
-36
-42
-48
TIP Some third party battery plates such as IDX’s ET-PV2UR, Blueshape’s MVURSA
and Anton Bauer’s QRC-BMURSA come pre-terminated with the correctly wired
connector for plugging straight into URSA's molex power connector. IDX ENDURA
batteries with Digi View functionality such as E-HL9 and ELITE models, Blueshape
V-lock batteries and Anton Bauer DIGITAL and Logic Series® will all show accurate
percentage power information with their corresponding plates on URSA. The standard
Blackmagic V-mount battery plate supports displaying percentage information with
Switronix Hypercore batteries.
48Mounting Batteries
