Blackmagicdesign URSA - URSA Viewfinder Operation; Viewfinder Button Controls; Eyepiece Adjustment

To connect your URSA Viewfinder to your URSA, simply connect the viewfinder’s attached
cables to URSA’s front 12V power and 3G-SDI outputs. Your URSA Viewfinder will turn on
automatically when your camera is powered.

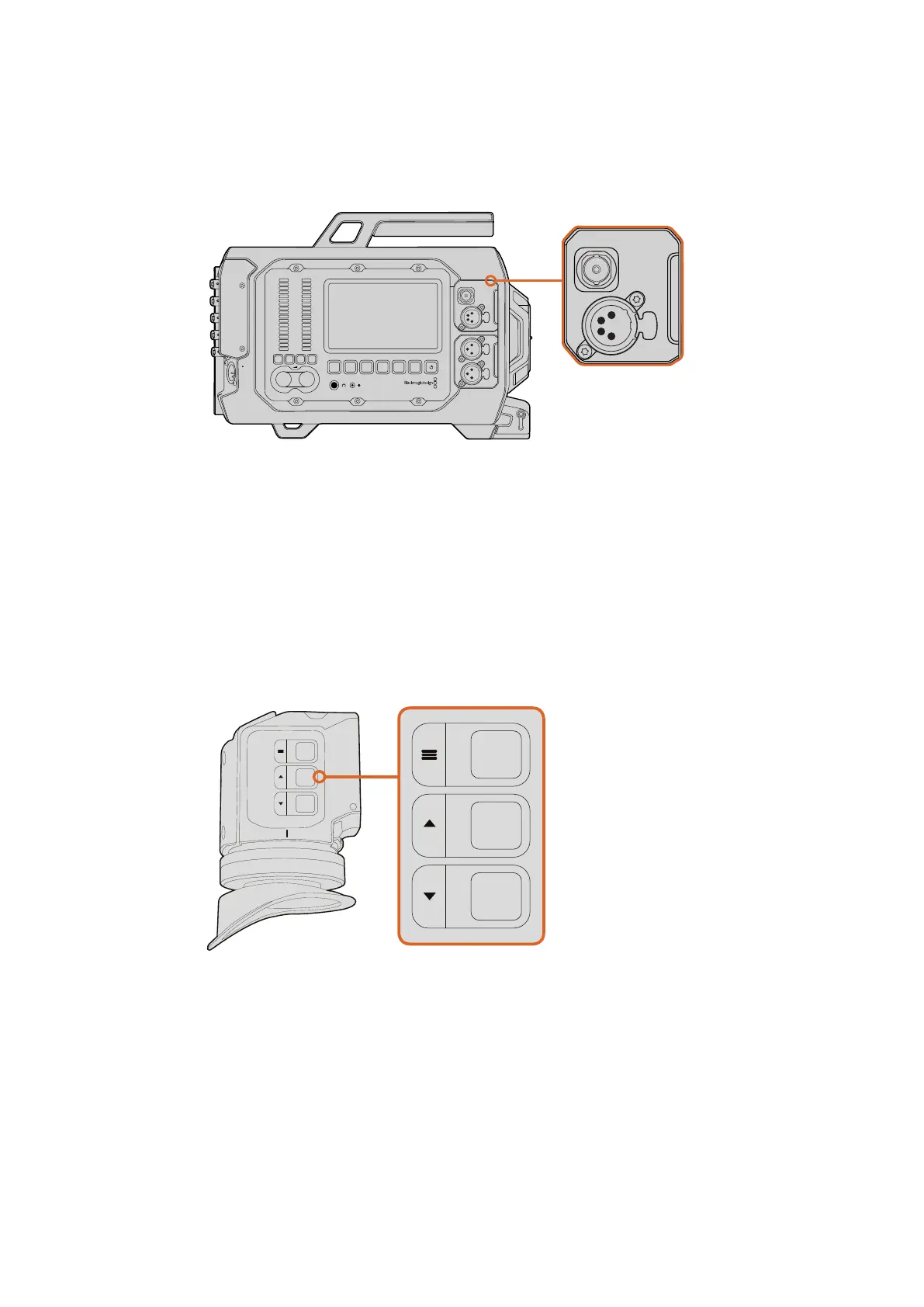

Connect your viewfinder’s SDI and power cables to your
URSA’sHD-SDI monitoring output and +12 volt output.
Adjusting the Eyepiece
The detachable rubber eyepiece can be adjusted to fit your left or right eye. Adjust the
viewfinder arm by loosening the knob on the bottom of the arm and sliding it left or right to
comfortably fit your eye.
Button Features
On the top of the viewfinder you’ll find the zoom, display and peak buttons. These buttons are
used for zooming into your image, and turning overlays and focus peaking on or off.
The Zoom (F1), Display (F2) and Peak (F3) buttons
are located on top of the URSA Viewfinder.
They are also used for additional features, such as opening the menu and navigating settings.
Icons printed on the side of the buttons show you which buttons are used to control the
viewfinder menu and navigation features. The buttons also have a customizable function
feature so you can assign shortcuts to quickly enable common features you may use frequently.
For example you may wish to assign the false color feature to the zoom button. Refer to the
‘shortcuts’ section for more information.
REC
ZOOM
DISP
PGM
1
CFAST
IRIS
FOCUS
REC
IRIS
FOCUS PEAK DISP MENU SLATE
2
IRIS
SDI OUT
0
-6
-12
-18
-24
-30
-36
-42
-48
L R
SDI IN
REF IN
TIMECODE IN
TIMECODE OUT
12V
CH1
SOLO
CH1
MUTE
CH2
MUTE
CH2
SOLO
FOCUS PEAK DISP MENU SLATE
PUSH PUSHPUSH
REC
ZOOM
DISP
PGM
1
CFAST
IRIS
FOCUS
REC
IRIS
FOCUS PEAK DISP MENU SLATE
2
IRIS
SDI OUT
0
-6
-12
-18
-24
-30
-36
-42
-48
L R
SDI IN
REF IN
TIMECODE IN
TIMECODE OUT
12V
CH1
SOLO
CH1
MUTE
CH2
MUTE
CH2
SOLO
FOCUS PEAK DISP MENU SLATE
PUSH PUSHPUSH
ZOOM
F1
F2
F3
DISP
PEAK
ZOOM
F1
F2
F3
DISP
PEAK
43Blackmagic URSA Viewfinder
