CAPINTEC, INC. CAPTUS
®
4000e
16-10 CLEANING AND MAINTENANCE July 16

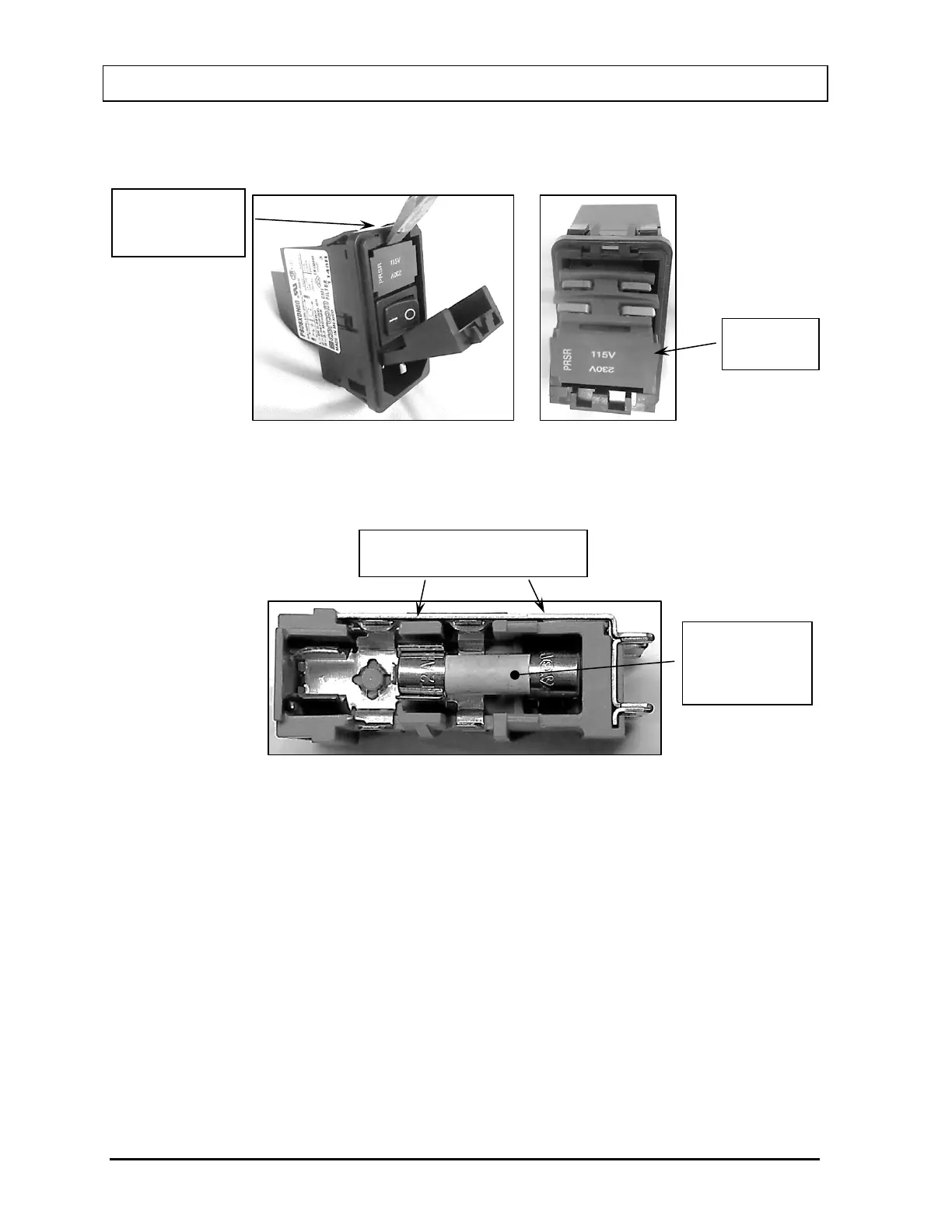

4. Once the door is opened, again use a screwdriver to pry out the fuse drawer behind
the door. The drawer will slide out. (Refer to Figure 16-6)
Figure 16-6
5. The two fuses will be exposed on both sides of the fuse drawer as shown in Figure
16-7.
Figure 16-7
here and pry fuse
drawer out
slid out
are located on
each side of the
fuse drawer
Note that the installed fuses
contact these two terminals
To Next Page
