AlterPath ACS Installation, Administration, and User’s Guide 87
Serial Port Settings and Security Profiles
All serial ports on ACS units shipped from the factory are disabled by default.
The administrator can enable ports individually or collectively and assign
specific users to individual ports.
The following figure shows the default factory settings of serial ports.

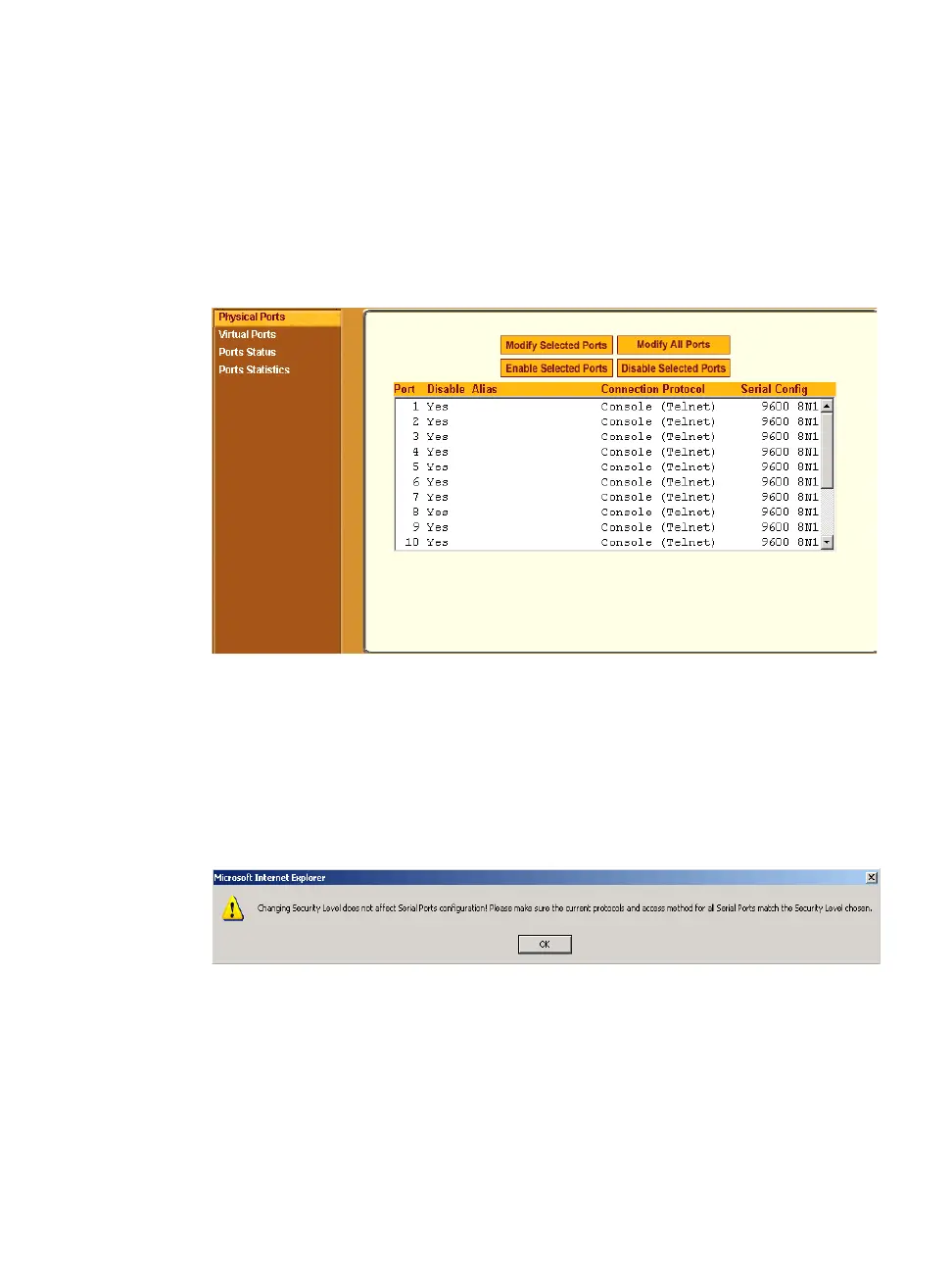

Figure 5-1: Administrator > Physical Ports Factory Settings
If you reconfigure the Security Profile and restart the Web manager, you need
to make sure the serial ports protocols and access methods match the selected
security profile.
The following reminder dialog box appears before you proceed to Step2:
Network Setting.
Figure 5-2: Security and Serial Ports Configuration Alert
