Cyclades AlterPath ACS - Figure 10-36: Expert > Ports > Virtual Ports > New;Modify > Port Names Dialog Box; To Assign Names to Slave Ports in the Cluster

AlterPath ACS Installation, Administration, and User’s Guide 297
This is the first TCP port number of the slave. The default is 7001.
8. Select the communication protocol between the master and the slave from
the “Protocol” pull-down menu.
The options are Telnet or SSH.
T To Assign Names to Slave ports in the Cluster
Pressing the “Port Names” button on the New/Modify Port dialog box, brings
up the form shown in the following figure.

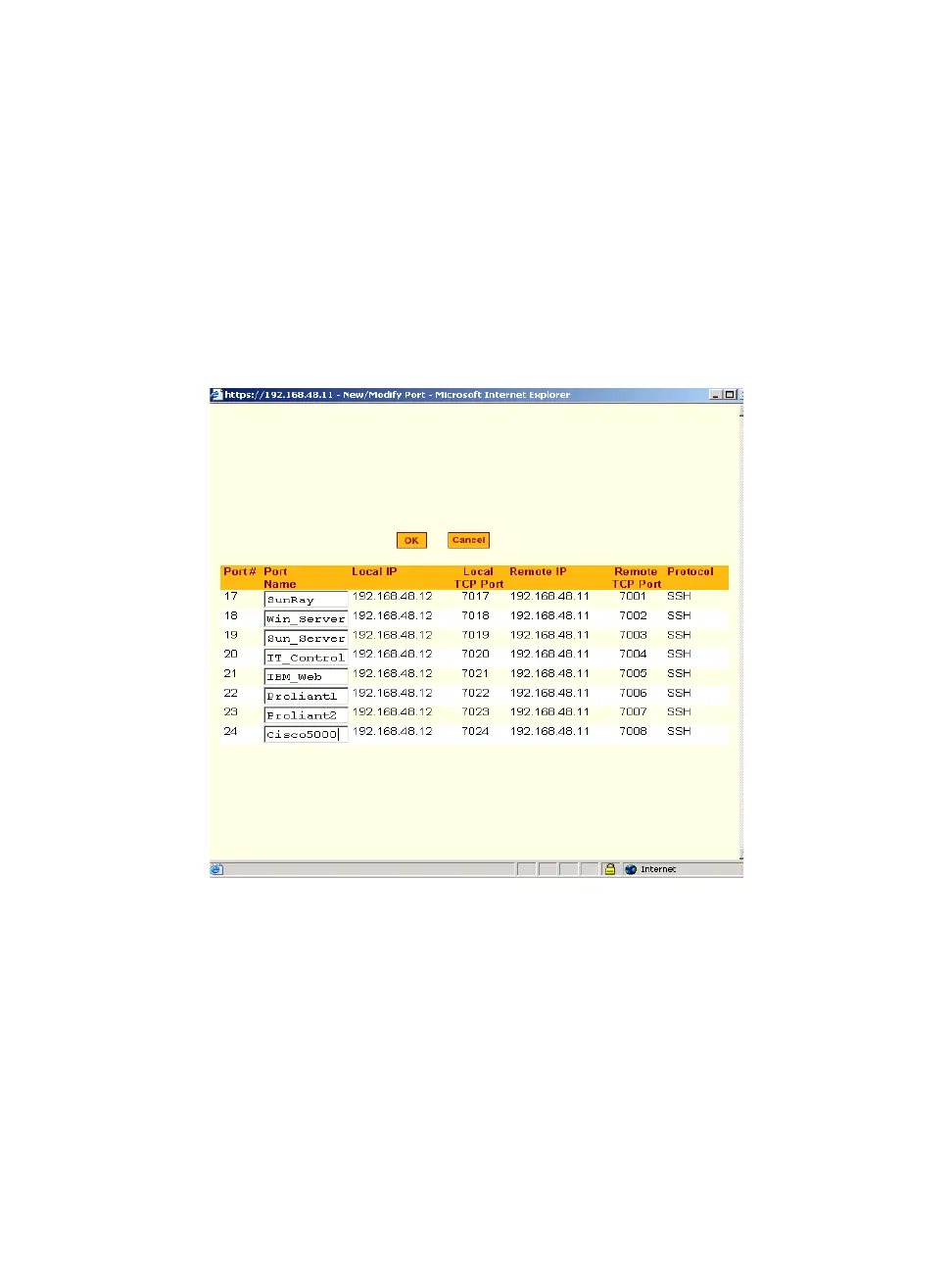

Figure 10-36: Expert > Ports > Virtual Ports > New/Modify > Port Names
Dialog box
Use this form to assign a name or alias to the slave ports in the cluster. Use a
naming convention for effective management of the ACS units and the
connected devices on your network.
