Applications Menu & Forms

150

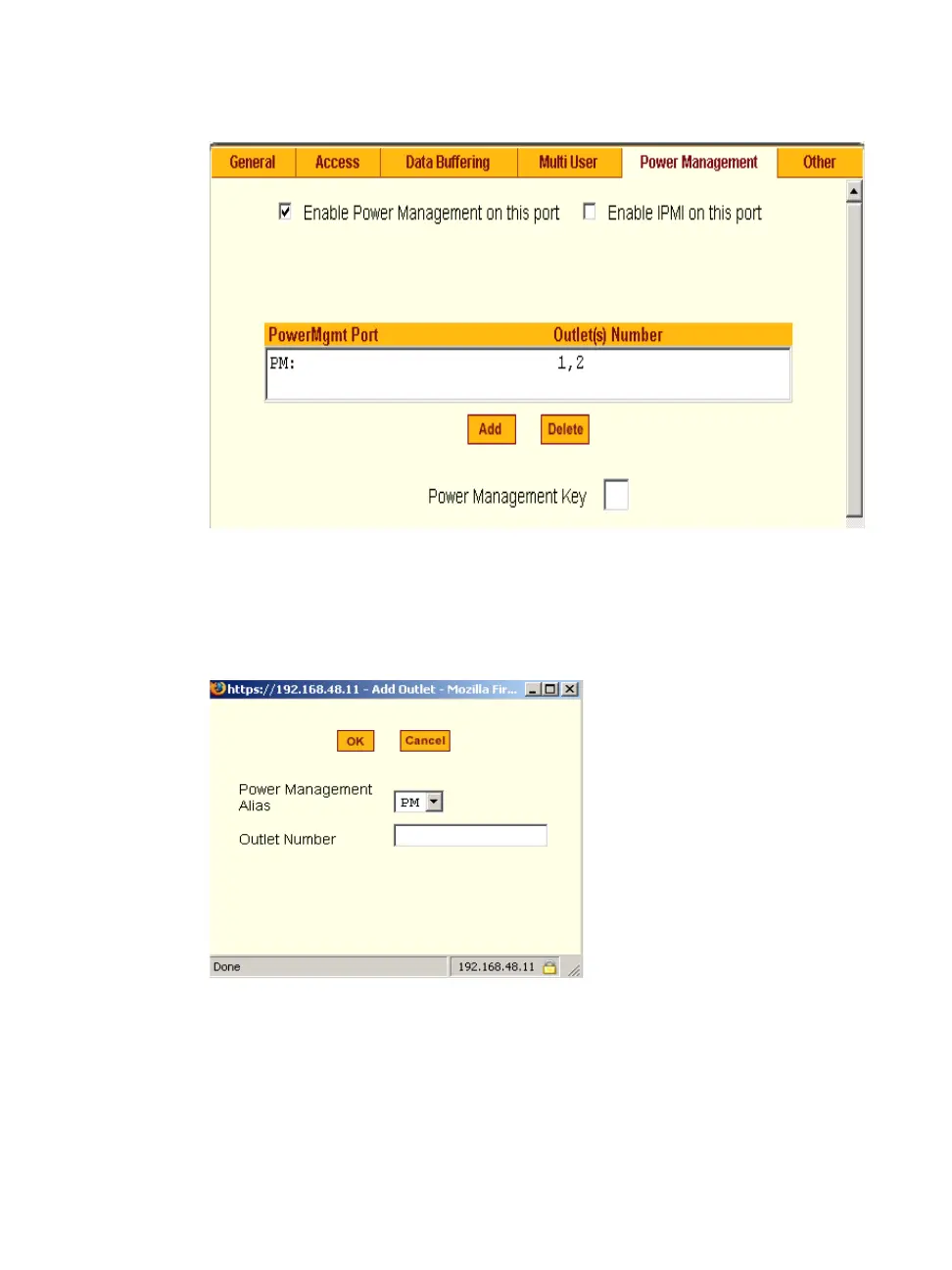

Figure 7-20: Expert > Serial Port > Power Management > Enable Power

Management

4. Click the “Add” button

The “Add Outlet” dialog box appears.

Figure 7-21: Expert > Power Management Add Outlet Dialog Box

5. Enter the outlet number(s) - separated by comma - into which the device

is connected to.

6. Click OK.
