AlterPath ACS Installation, Administration, and User’s Guide 197
Network
Note: Default chains cannot be deleted. If one of the default chains is selected and
the “Delete” button is pressed the message shown in the following figure
appears.

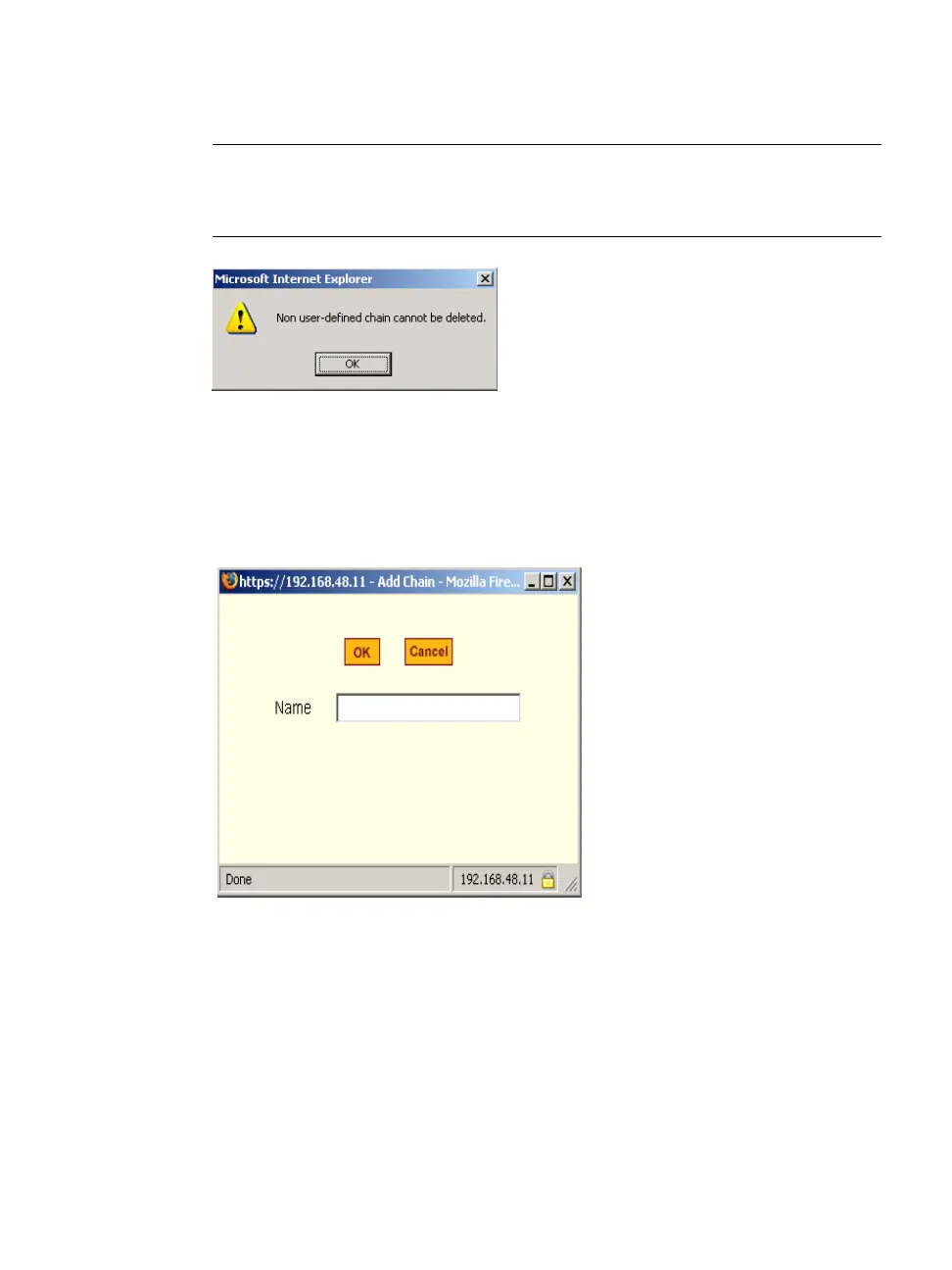

Figure 8-24:Firewall Configuration “Delete Default Chain” Message
“Add” Button
If the “Add” button is pressed under, the “Add Chain” dialog box shown in
the following figure appears.
Figure 8-25:Expert > Firewall Configuration “Add Chain” Dialog Box
Adding a chain only creates a named entry for the chain. Rules must be
configured for the chain after it is added to the list of chains.
