Cyclades AlterPath ACS - Figure 10-37: Expert > Ports > Ports Status (Read-Only); Ports Status; Table 10-14: Expert > Port Status Read-Only Form

Ports Menu & Forms
298
Ports Status
Selecting Ports > Port Status in Expert mode, brings up the following read-
only form, which displays tabular serial port status information.

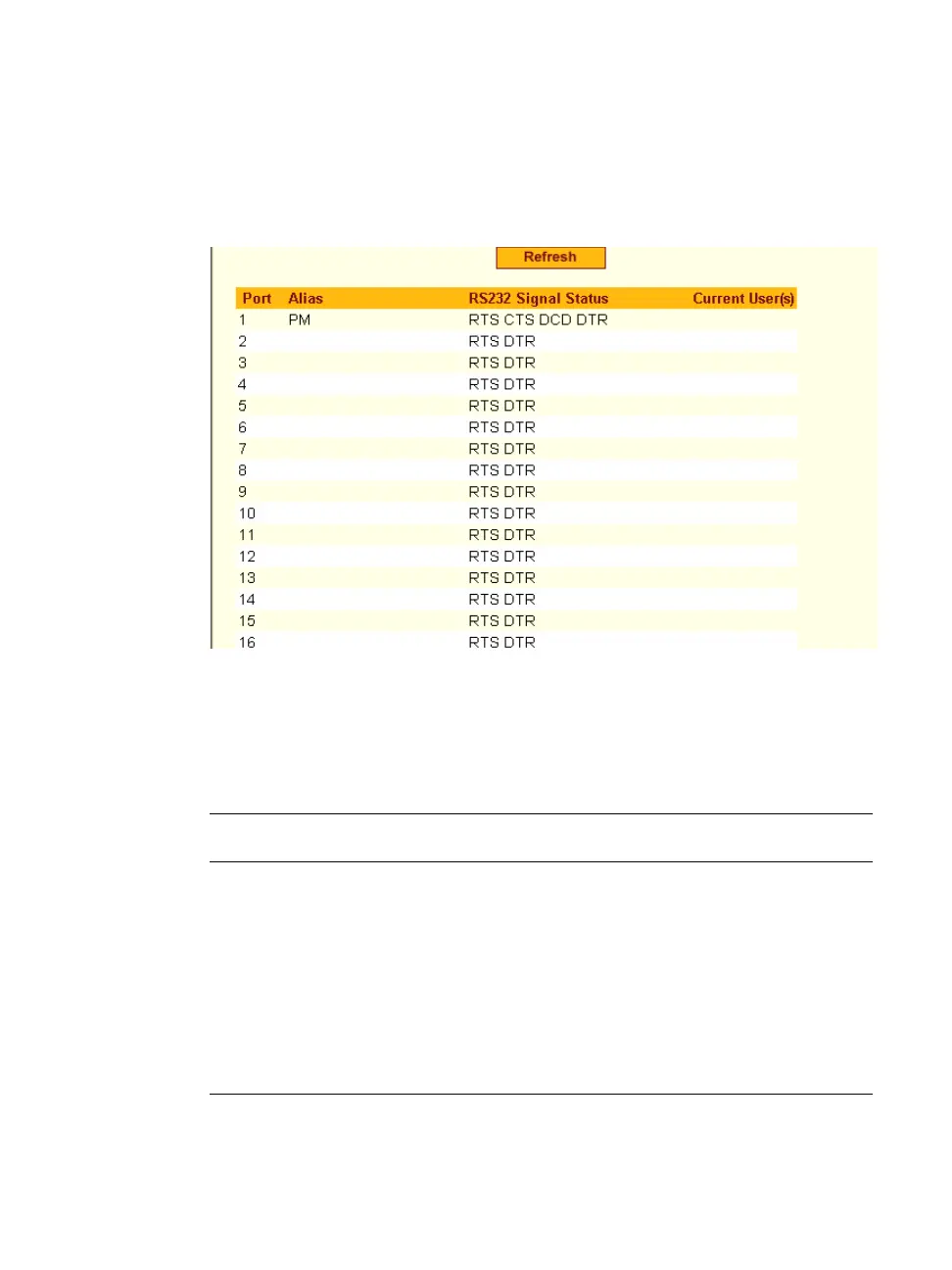

Figure 10-37: Expert > Ports > Ports Status (Read-Only)
The information in the following table is available in the Ports Status read-
only form. All users have access to this form. The information on this page
gets updated when you click the “Refresh” button.
Table 10-14: Expert > Port Status Read-Only Form
Column Name Description
Port
The serial port number.
Alias
Displays the name (alias) for the serial port if
one is assigned by the administrator.
RS232 Signal Status
Serial Communication Signal Status
Current User(s)
Displays the user(s) connected to each serial
port.
