Cyclades AlterPath ACS - Figure 10-34: Expert > Applications > Connect > Serial Pull-Down; To Cluster ACS Units or Modify Cluster Configuration

AlterPath ACS Installation, Administration, and User’s Guide 295

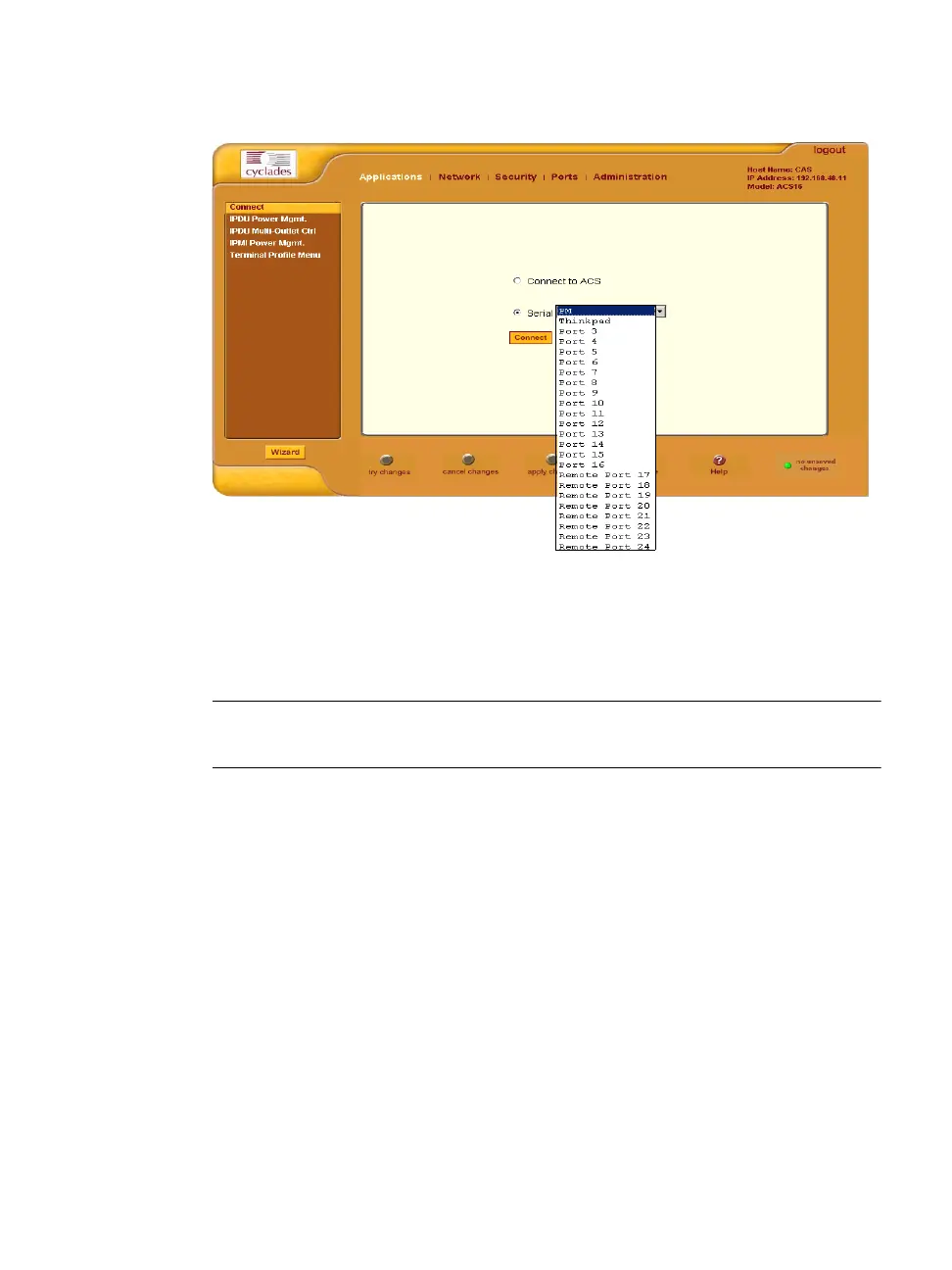

Figure 10-34: Expert > Applications > Connect > Serial pull-down menu
T To Cluster ACS Units or Modify Cluster Configuration
Use this procedure if you want to cluster ACS units and add or modify ports.
Note: ACS boxes should be connected individually to an IP network. The units
should not be cascaded.
1. Go to Ports > Virtual Ports in Expert mode, and click the “Add” button to
add new slave ports, or click the “Edit” button to edit a slave port.
The New/Modify Port dialog box appears.
