Cyclades AlterPath ACS - Figure 8-22: Expert > Firewall Configuration Edit Chain Dialog; Figure 8-23:Firewall Configuration User-Defined Chain Message

Network Menu & Forms
196

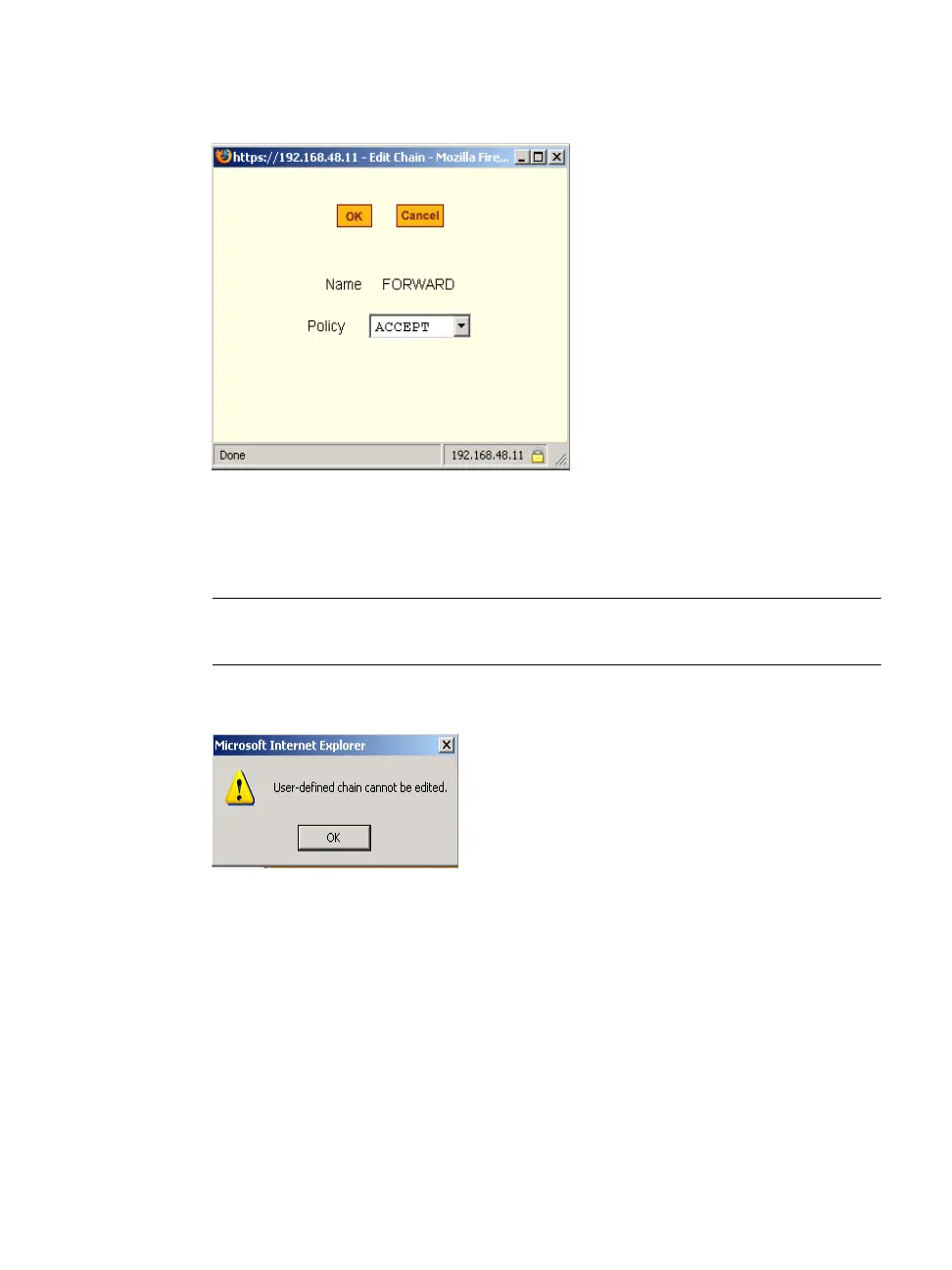

Figure 8-22: Expert > Firewall Configuration “Edit Chain” Dialog Box
Only the policy can be edited for a default chain. The options are “ACCEPT,”
and “DROP.”
Note: User-defined chains cannot be edited. If a user-defined chain is selected for
editing, the message shown in the following figure appears.
Figure 8-23:Firewall Configuration “User-defined Chain” Message
“Delete” Button
If one of the user-defined chains is selected and the “Delete” button is pressed
the chain is deleted.
