1F–316 ENGINE CONTROLS
DAEWOO M-150 BL2
D21F010

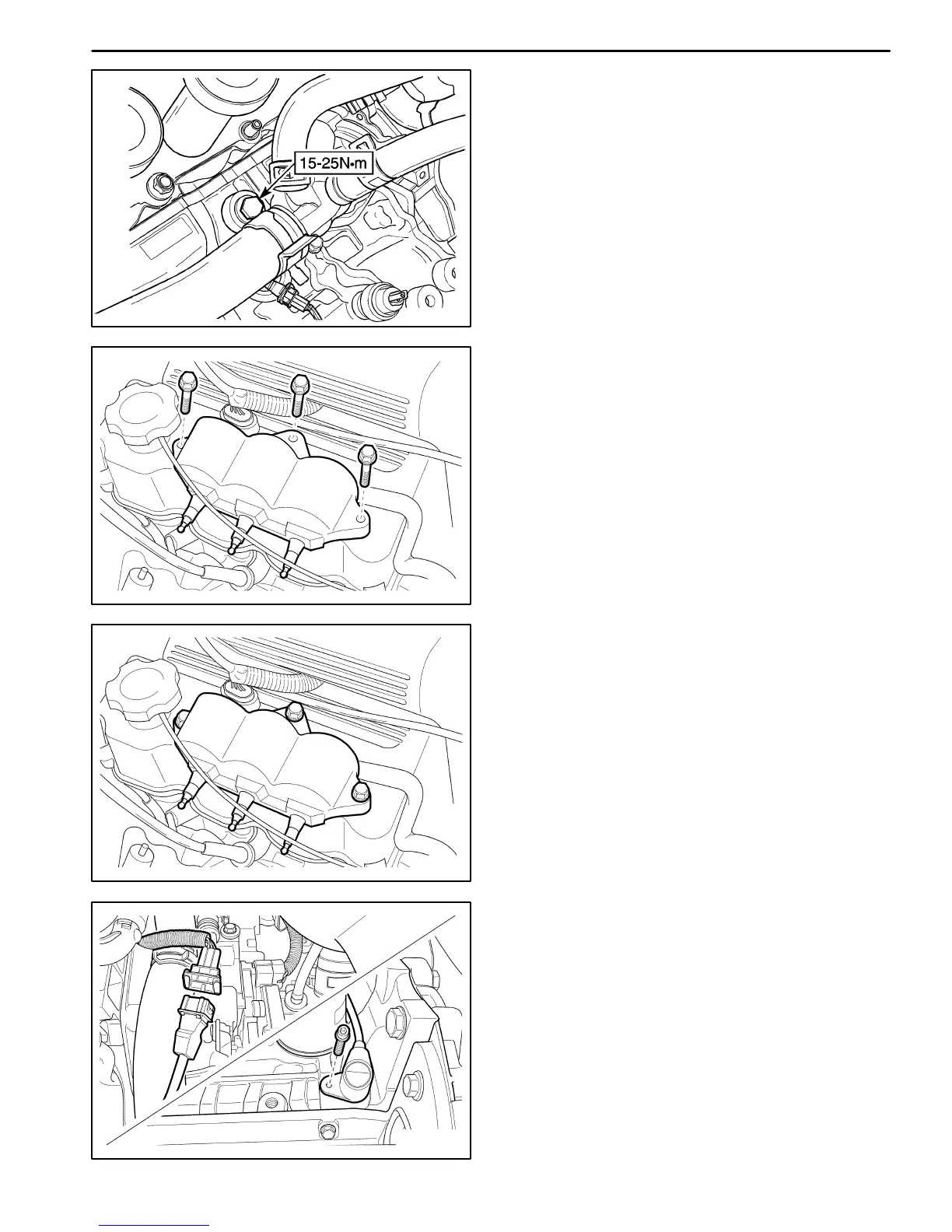

Installation Procedure
1. Install the knock sensor with the bolt.
Tighten
Tighten the knock sensor retaining bolt to 15–25 NSm
(11–18 lb-ft).
2. Connect the electrical connector to the knock sensor.
3. Install the starter. Refer to Section 1E, Engine Electri-
cal.
4. Connect the negative battery cable.
MAA1F490
ELECTRONIC IGNITION (EI) SYSTEM
IGNITION COIL
Removal Procedure
1. Disconnect the negative battery cable.
2. Note the ignition wire location and disconnect the
ignition wires from the EI system ignition coil.
3. Disconnect the EI system ignition coil connector.
4. Remove the EI system ignition coil retaining bolts.
5. Remove the EI system ignition coil.
MAA1F500
Installation Procedure
1. Install the EI system ignition coil.
2. Tighten the EI system ignition coil to 8–12 NSm
(71–106 lb-in).
UAA1F2C0
CRANKSHAFT POSITION (CKP)
SENSOR
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the air cleaner assembly.
3. Disconnect the crankshaft position (CKP) sensor
connector.
4. Remove the CKP sensor retaining bolt.
