ENGINE CONTROLS 1F–317
DAEWOO M-150 BL2
MAA1F550

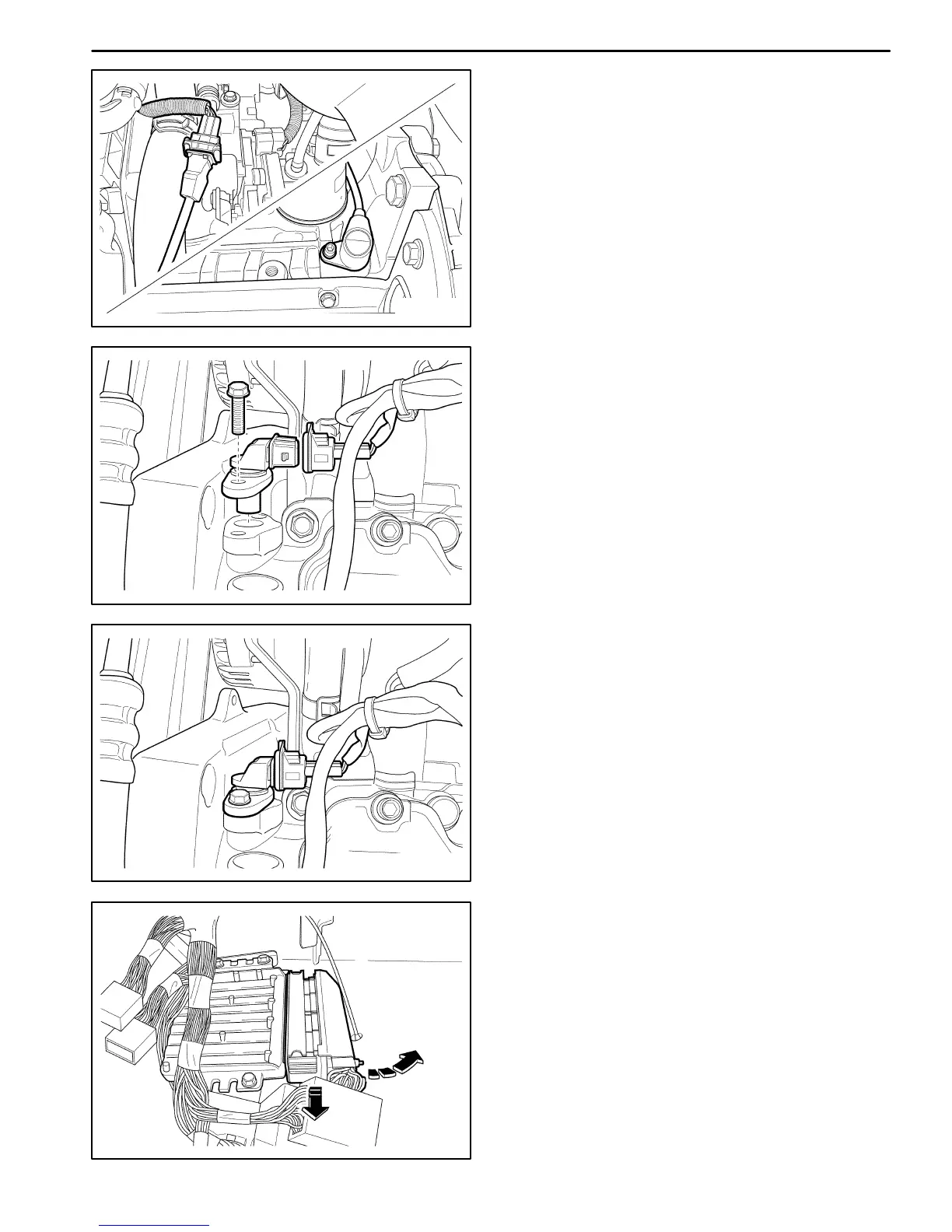

Installation Procedure
1. Install the CKP sensor.
2. Tighten the CKP sensor retaining bolt to 5–8 NSm
(44–71 lb-in).
UAA1F2E0
CAMSHAFT POSITION (CMP)
SENSOR
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the camshaft position (CMP) sensor con-
nector.
3. Remove the CMP sensor retaining bolt.
4. Remove the CMP sensor.
MAA1F540
Installation Procedure
1. Install the CMP sensor.
2. Tighten the CMP sensor retaining bolt to 10–14 NSm
(89–124 lb-in).
MAA1F510
ENGINE CONTROL MODULE (ECM)
Removal Procedure
1. Disconnect the ECM connector.
To Next Page
