1F–318 ENGINE CONTROLS

DAEWOO M-150 BL2

MAA1F520

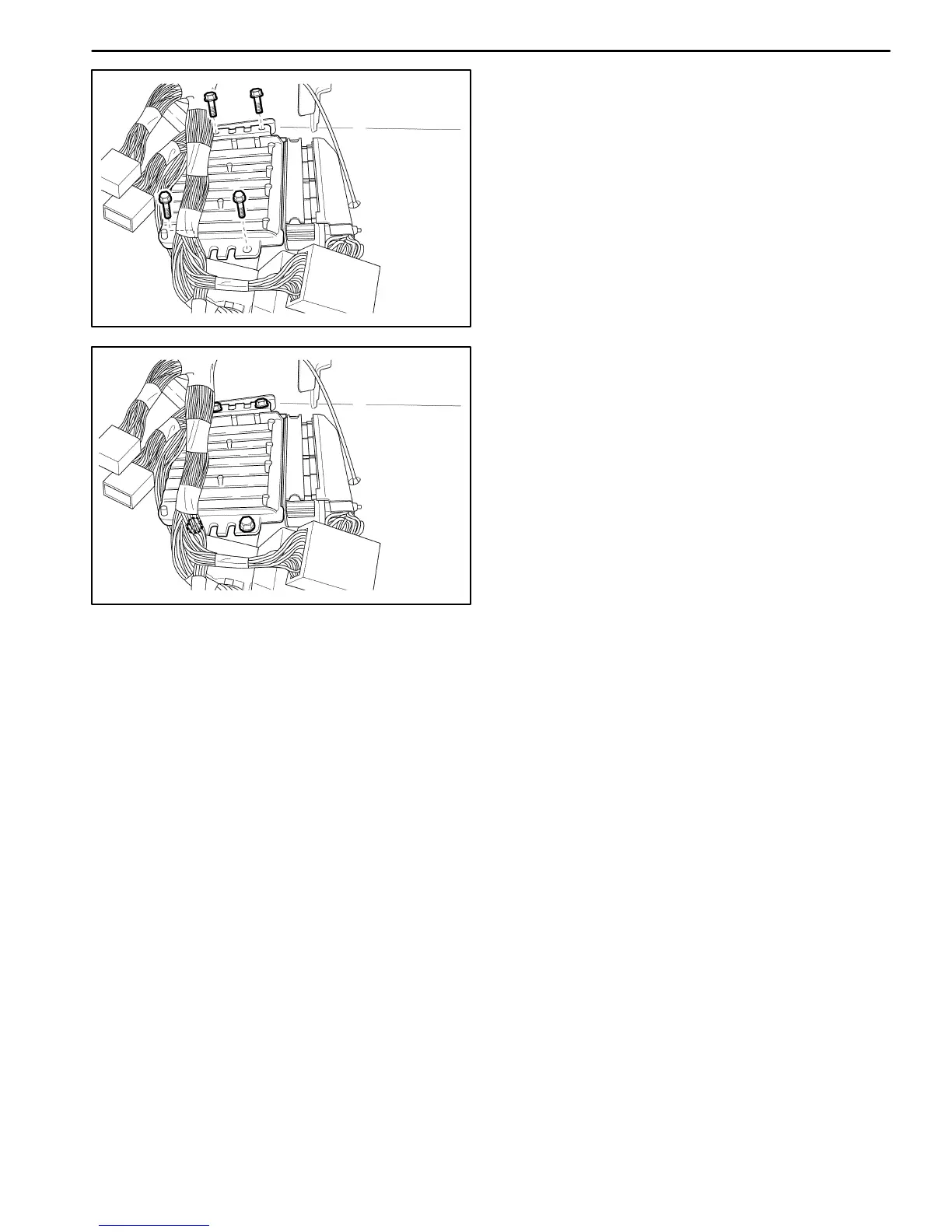

2. Remove the ECM.

D Remove the bolts.

D Remove the ECM.

MAA1F530

Installation Procedure

1. Install in the reverse order of removal.

Notice: If disconnecting the battery cable to the ECM,

the IAC valve resetting should be proceeded.

2. install the ECM with the bolts.

Tighten

Tighten the ECM mounting bolts to 6–8 NSm (53–71

lb-in).
