FIVE-SPEED MANUAL TRANSAXLE 5B–31
DAEWOO M-150 BL2
D13B727A

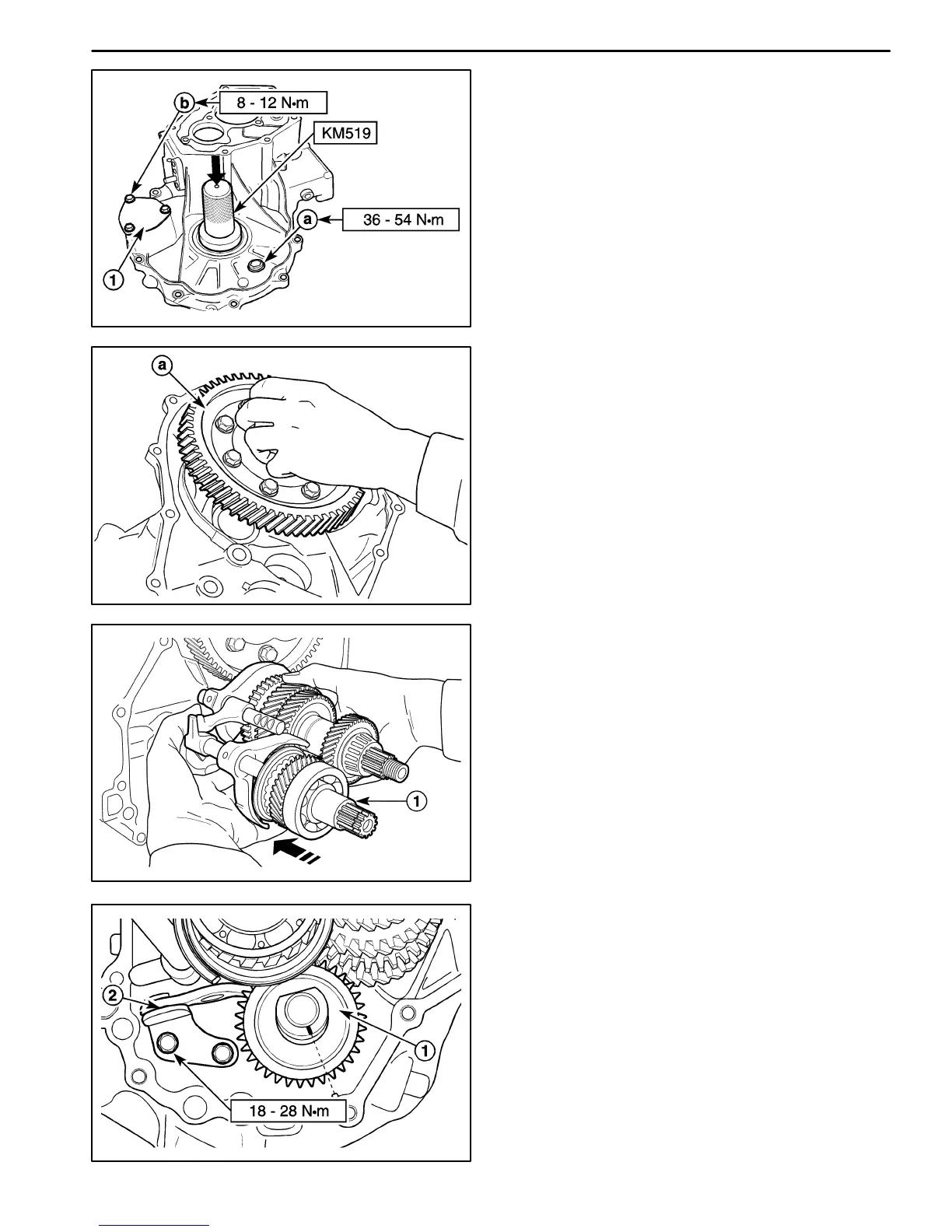

Tighten
Tighten the bolt to 8–12 NSm (71–106 lb-in).
b. Case cap retaining bolt.
D Install the differential left side oil seal using the oil,
seal installer KM519.
D103B728
3. Install the differential assembly to the right side of
transaxle case.
a. Differential assembly.
D When the differential ring gear surface is lower
than the right side of transaxle case surface, it is
installed correctly.
D103B729
4. Install the low and the high speed shift shaft assem-
bly to the gear unit.
5. Install the gear unit.
D Push the gear unit by matching it with the input and
the counter shaft hole (1).
Notice: Be careful not to damage teeth of the counter
shaft pinion and the differential ring gear.
D13B730A
6. Install the fifth–reverse gear shift shaft.
7. Install the reverse idle gear shaft assembly and the
reverse gear shift lever.
D Install the reverse idle gear shaft assembly (1).
Important: Match the marking of the reverse idle gear
shaft bolt hole with the protrusion of the transaxle case
(Right Side).
D Install the reverse gear shift lever (2).
Tighten
Tighten the bolts to 18–28 NSm (13–21 lb-ft).
