5B–32 FIVE-SPEED MANUAL TRANSAXLE
DAEWOO M-150 BL2
D13B731A

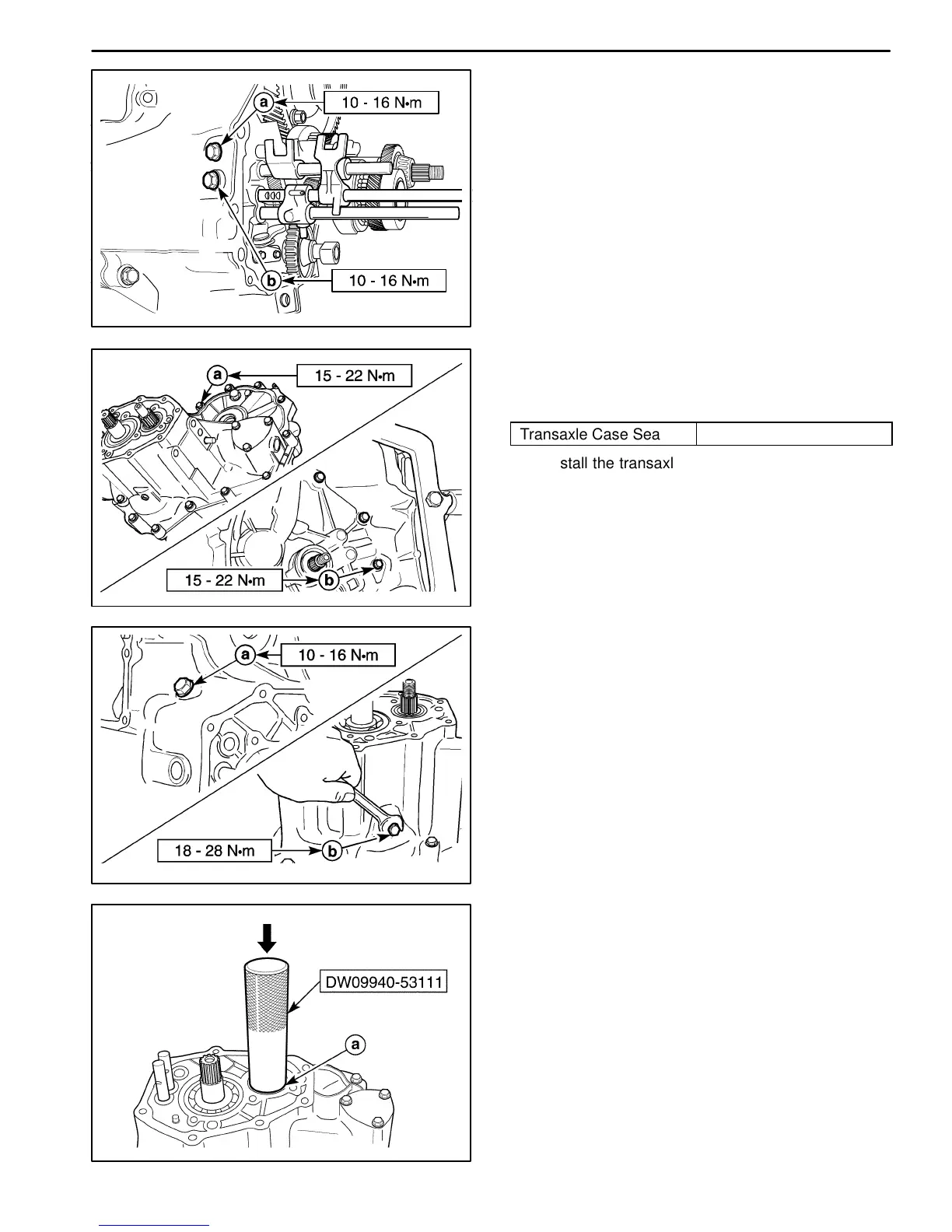

8. Install the shift shaft ball and spring.
D Install the third–fourth gear shift shaft ball and
spring.
Tighten
Tighten the bolt to 10–16 NSm (7–12 lb-ft) (a).
D Install the fifth–reverse gear shift shaft ball and
spring.
Tighten
Tighten the bolt to 10–16 NSm (7–12 lb-ft) (b).
Important: Install the fifth–reverse gear shift shaft
spring marked when removing.
D13B732A
9. Install the transaxle left side case.
D Coat the transaxle case with recommended seal-
ant.
Transaxle Case Sealant
THREE BOND 1215
D Install the transaxle left side case to the transaxle
right side case.
Tighten
Tighten the bolts to 15–22 NSm (11–16 lb-ft) (a).
D Tighten the bolts (8), stud bolts (3) if equipped with
auto clutch.
Tighten the bolts to 15–22 NSm (11–16 lb-ft) (b).
D13B733A
10. Install the first–second gear shift shaft ball and
spring.
Tighten
Tighten the bolt to10–16 NSm (7–12 lb-ft) (a).
11. Install the reverse idle gear shaft bolt.
Tighten
Tighten the bolt to 18–28 NSm (13–21 lb-ft) (b).
D103B734
12. Install the counter shaft bearing outer race.
D Install the counter shaft bearing outer race using
the gear, bearing installer DW09940–53111.
a. Bearing outer race.
Important: Check if the bearing and the outer race are
correctly installed by rotating counter shaft.
To Next Page
