Dell 3115CN - Page 139

1‑113
Chapter 1 Troubleshooting
Version 2 2007.05.22

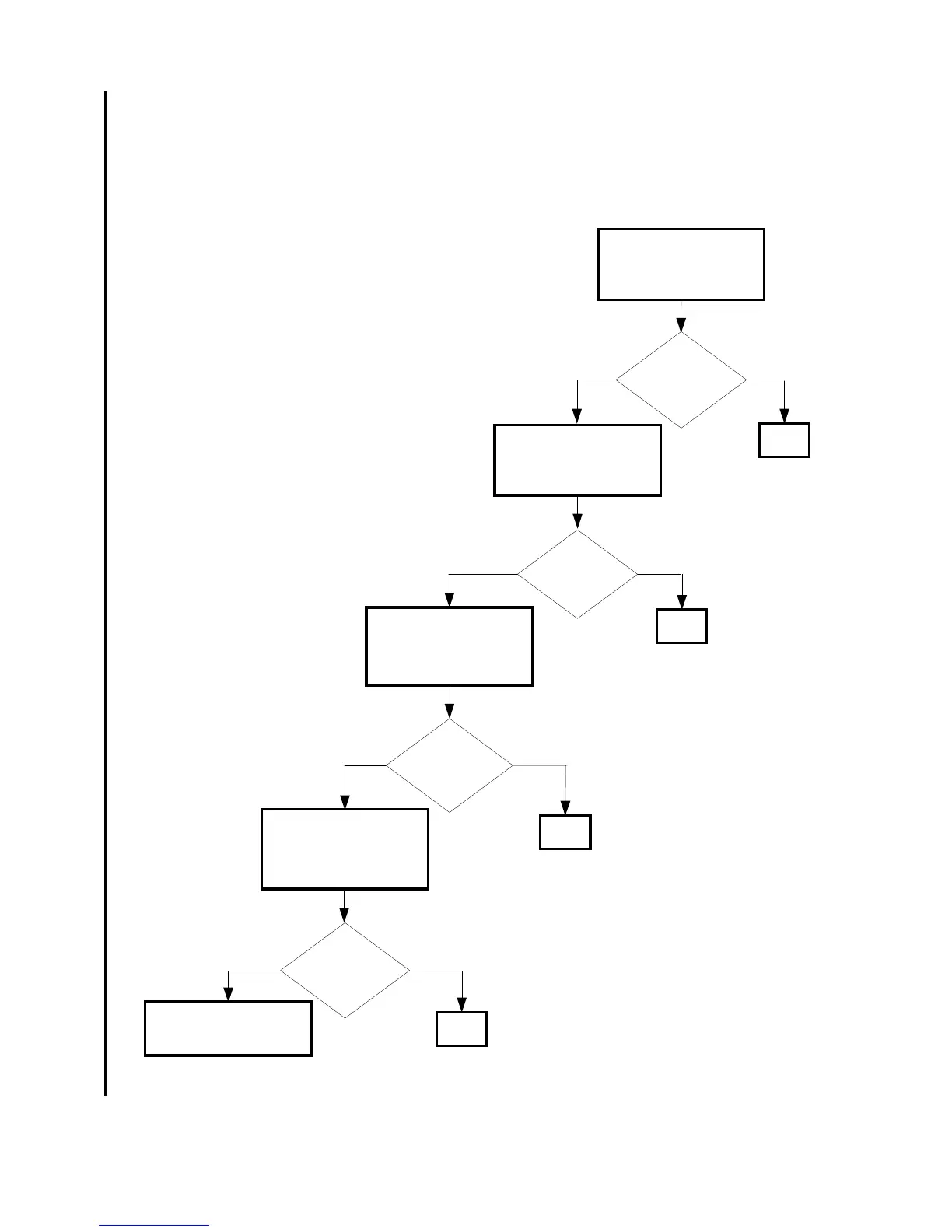

FIP-1. 28 Restart Printer 016-398 /117-313/117-323/117-324/117-325/001-326/117-329
117-354/117-355/117-356/117-357/117-358/117-359/117-360
Possible causative parts: PWBA HYUI (PL13.4.1)
PWBA ESS(PL13.4.20)
Checking the connector
connection
Reseat the connector (P/
J480) on the PWBA ESS.
Does the error
still occur when
copying?
NoYes
Checking the connector
connection
Reseat the connector (P/
J48) on the PWBA HYUI.
Does the error
still occur when
copying?
NoYes
END
Checking after replacing
the PWBA HUYI
Replace the PWBA HYUI.
(Removal64/Replacement
58)
Does the error still
occur when
copying?
NoYes
END
Replace the PWBA ESS.
(Removal61/Replacement
61)
END
Checking the error
Wait for five seconds and
turn ON the power after the
power is turned OFF.
Does the error still
occur when
copying?
NoYes
END
