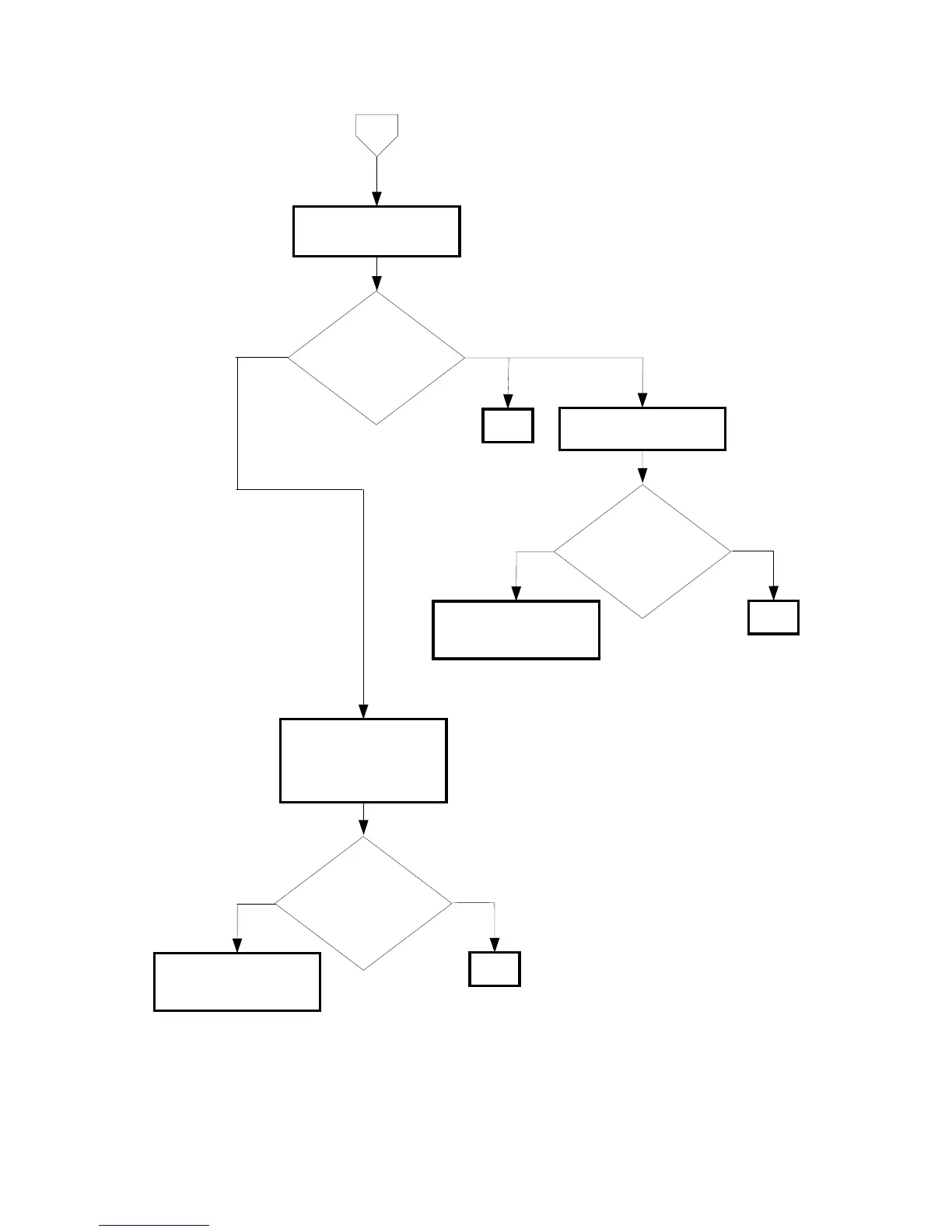

Chapter 1 Troubleshooting
Version 1 2006.11.21
D
Checking the DRIVE ASSY
PH.
No
Yes
Checking the DRIVE ASSY
PH installation
Reseat the DRIVE ASSY
PH. (Removal 15/
Replacement 31)
No
Yes
Try replacing the DRIVE
ASSY PH. (Removal 15/
Replacement 31)
END
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-a] in [IOT
Diagnosis].
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-a] in [IOT
Diagnosis].
No
Yes
Try replacing the Option
Feeder ASSY. (Removal
43/Replacement 4)
END
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-19] in [IOT
Diagnosis].
END
Checking the Option
Feeder Motor
If the option tray
attached
