Chapter 1 Troubleshooting
Version 1 2006.11.21
C

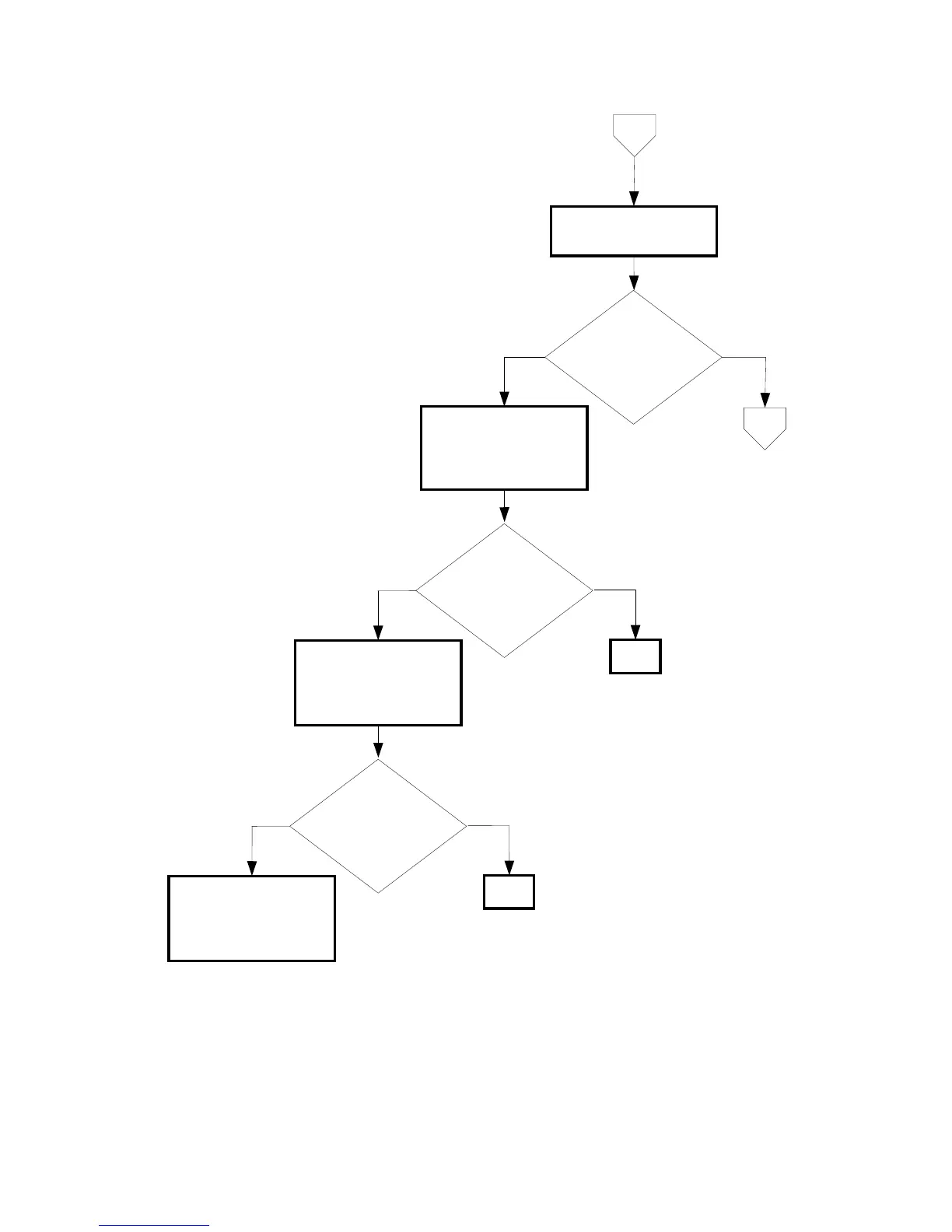

Checking the Deve Motor.
No
Yes
Checking the Toner
Cartridges installation
Reseat the Yellow,
Magenta and Cyan Toner
Cartridges.
No
Yes
Checking the DRIVE ASSY
MAIN installation
Reseat the DRIVE ASSY
MAIN. (Removal 36/
Replcement 10)
END
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-f] in [IOT
Diagnosis].
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-f] in [IOT
Diagnosis].
No
Yes
Try replacing the Yellow,
Magenta, Cyan Toner
Cartridges and the DRIVE
ASSY MAIN one after
another.
END
Does the noise
arise from the printer?
Checked by [Digital
Output]-[DO-f] in [IOT
Diagnosis].
