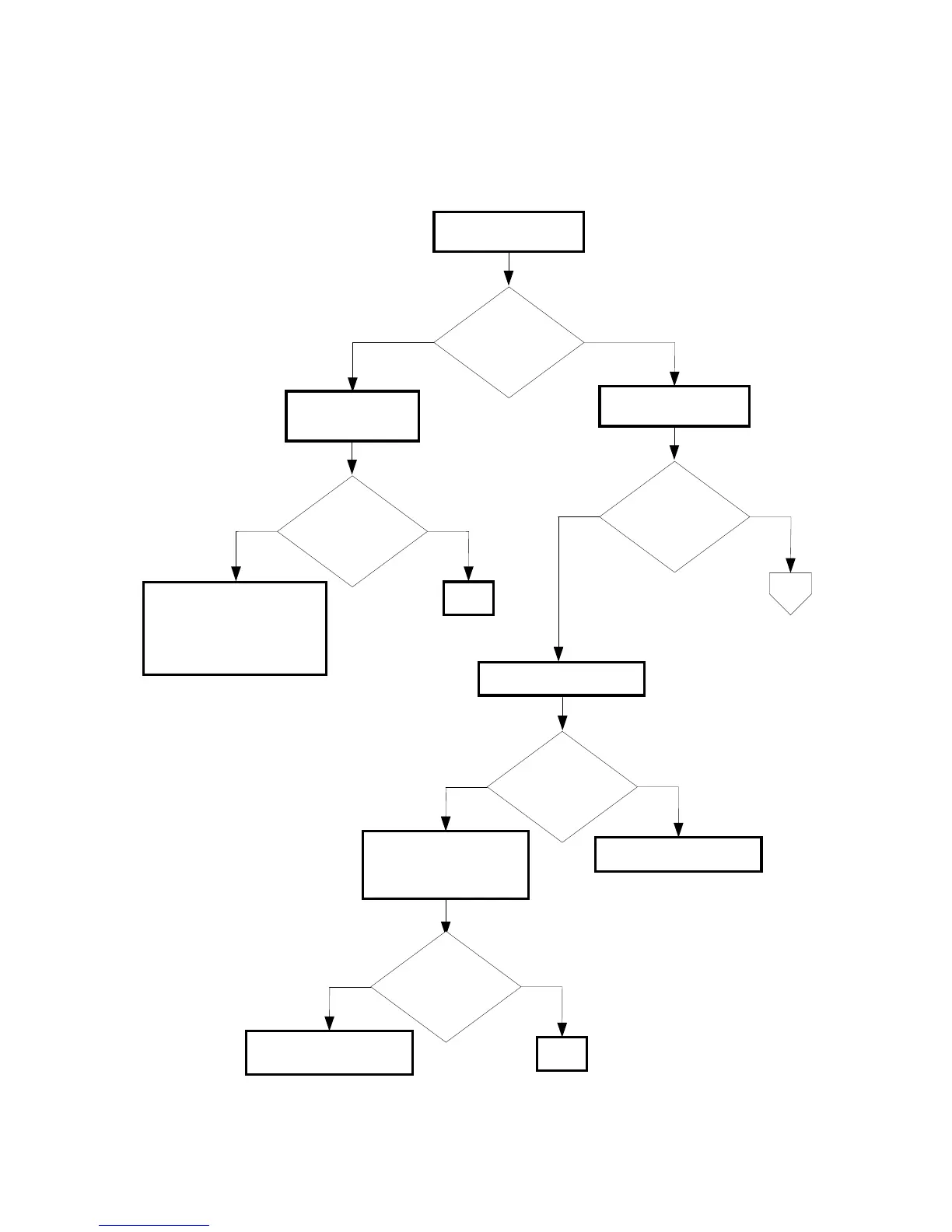

FIP-Multiple feed
Multi feed occurred in
the MPF?
NoYes
Possible causative parts:KIT SEPARATOR ROLLER ASSEMBLY (PL2.1.99)
KIT SEPARATOR AND FEEDER ROLLER (PL2.2.99/PL12.3.99)
Checking the MPF fed.
Checking the media
Replace to the new
paper.
Does the multi feed
still occur when
printing?
NoYes
END
Checking after replacing the
SEPARATOR ROLLER
ASSEMBLY.
Replace the SEPARATOR
ROLLER ASSEMBLY.
(Removal 38/Replacement 8)
END
Does the
document meet the
ADF spec.?
NoYes
Checking the side guide
setting
Reset the side guide of the
ADF.
Checking the document
Change the paper type.
Does the multi feed
still occur when
feeding?
NoYes
Replace the Feed Roll and
the Separator Pad.
Multi feed occurred in
the ADF?
NoYes
Checking the ADF fed
A
