3 - 28
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Removal 16 INTEGRATED FEEDER ASSEMBLY (PL3.2.99)
When performing the step described below, it is not necessary to remove the SENSOR
PHOTO (PL3.1.15) and COVER SNR (PL3.1.16).

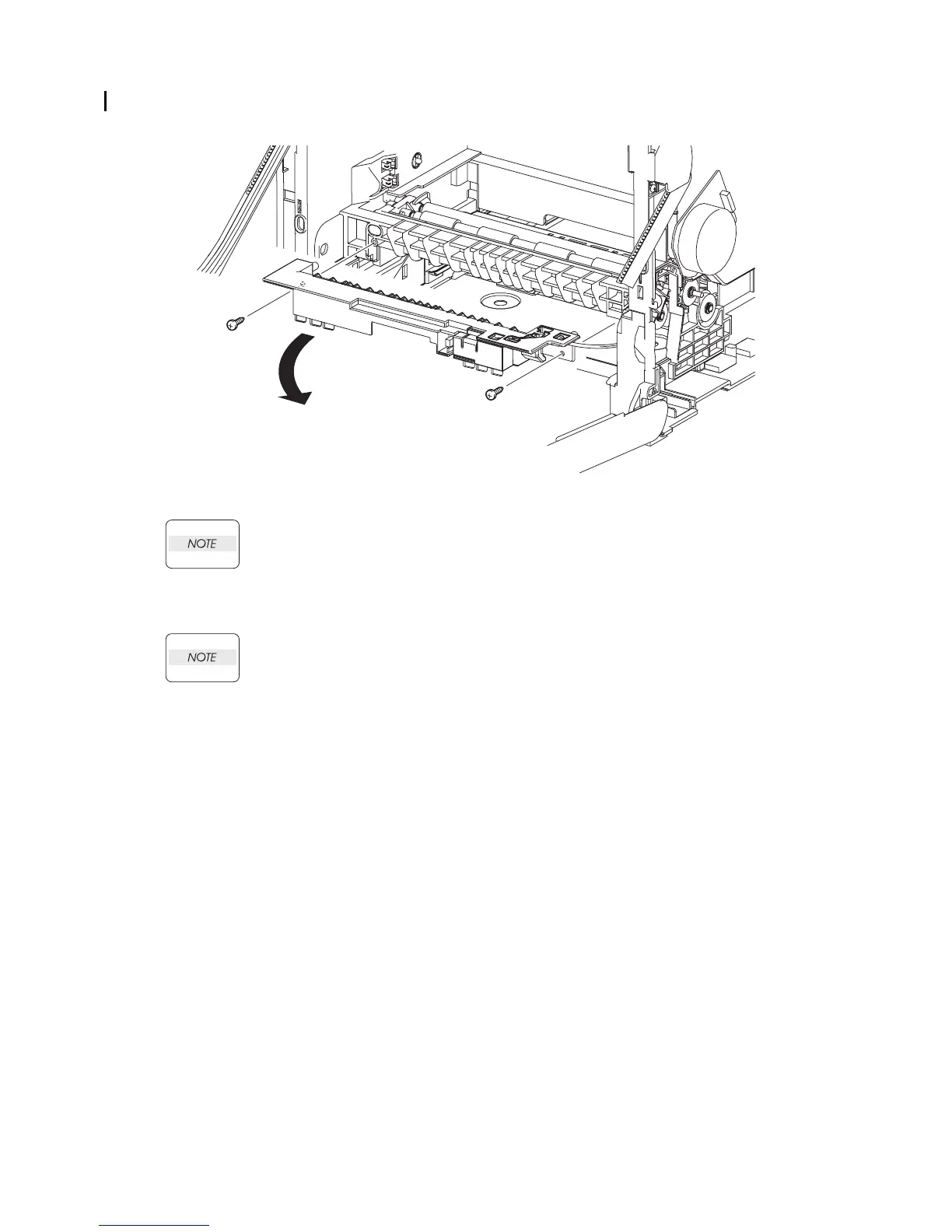

11) Remove the two screws (silver, tap, 10mm) that fix the CHUTE MSI (PL3.1.14) to the printer.
When performing the step described below, take care not to move the CHUTE MSI from
the printer too far because they are connected with the harness.
12) Remove the CHUTE MSI from the printer.
Continues to the next page.
Gnb03022KA
11)
11)
12)
To Next Page
