3 - 82
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 2 2007.03.20
Removal 56 OPERATOR PANEL (PL13.2.97)

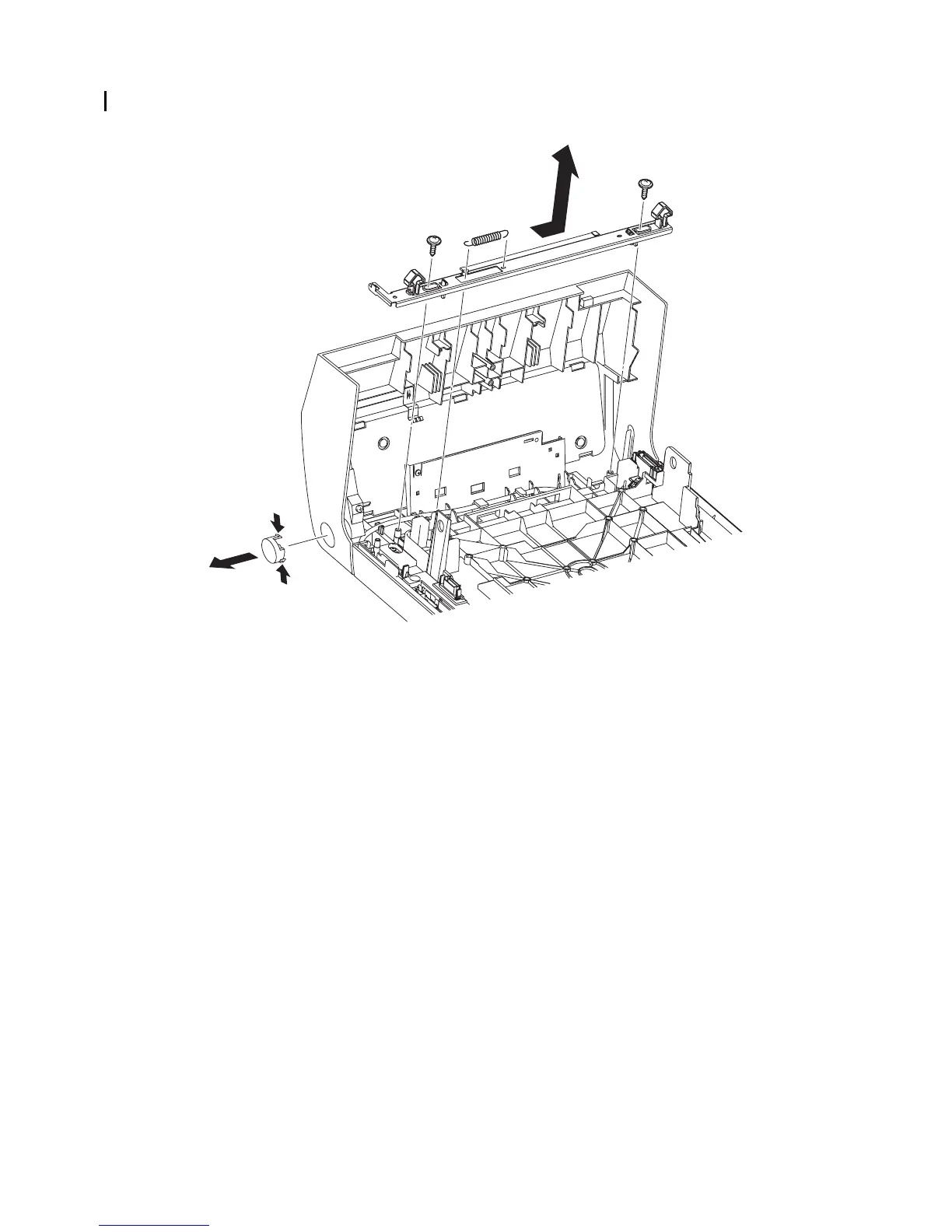

12) Remove the BUTTON TOP by releasing the two hooks that fix the BUTTON TOP (PL13.2.8)
to the FRONT COVER (PL13.2.1).
13) Remove the SPRING LATCH (PL13.2.6) from the hooks on the PLATE LATCH (PL13.2.5) and
the FRONT COVER.
14) Remove the two screws (silver, with flange, tap, 10mm) that fix the left and right sides of the
LATCH FRONT (PL13.2.4) to the FRONT COVER.
15) Slide the PLATE LATCH and LATCH FRONT to the left, and then remove the PLATE
LATCH and LATCH FRONT from the FRONT COVER.
Continues to the next page.
Gnb03160KA
13)
14)
12)-1
12)-1
12)-2
14)
15)
