3 - 130
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 14 HIGH VOLTAGE POWER SUPPLY (PL5.1.17)

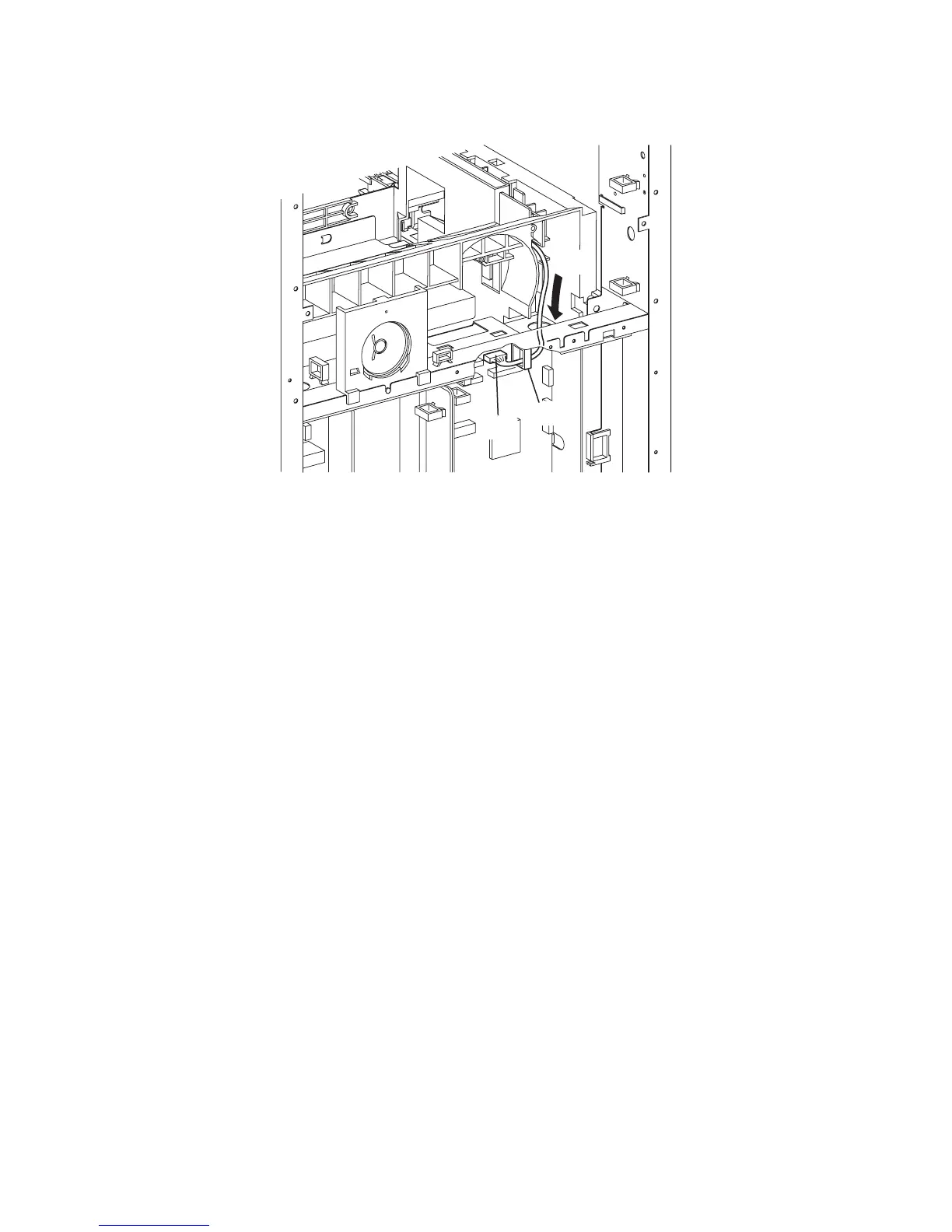

5) Route the harness of the HIGH VOLTAGE POWER SUPPLY through the hole of the printer.
6) Engage the connector (P/J16) of the HIGH VOLTAGE POWER SUPPLY to the connector of
the MACHINE CONTROL UNIT.
Continues to the next page.
Gnb03106KA
6)-2
5)
6)-1
To Next Page
