Dell 3115CN - Page 592

3 - 183
Chapter 3 Removal and Replacement Procedures (RRPs)
Version 1 2006.11.28
Replacement 50 ADF SCANNER ASSY (PL13.8.1)

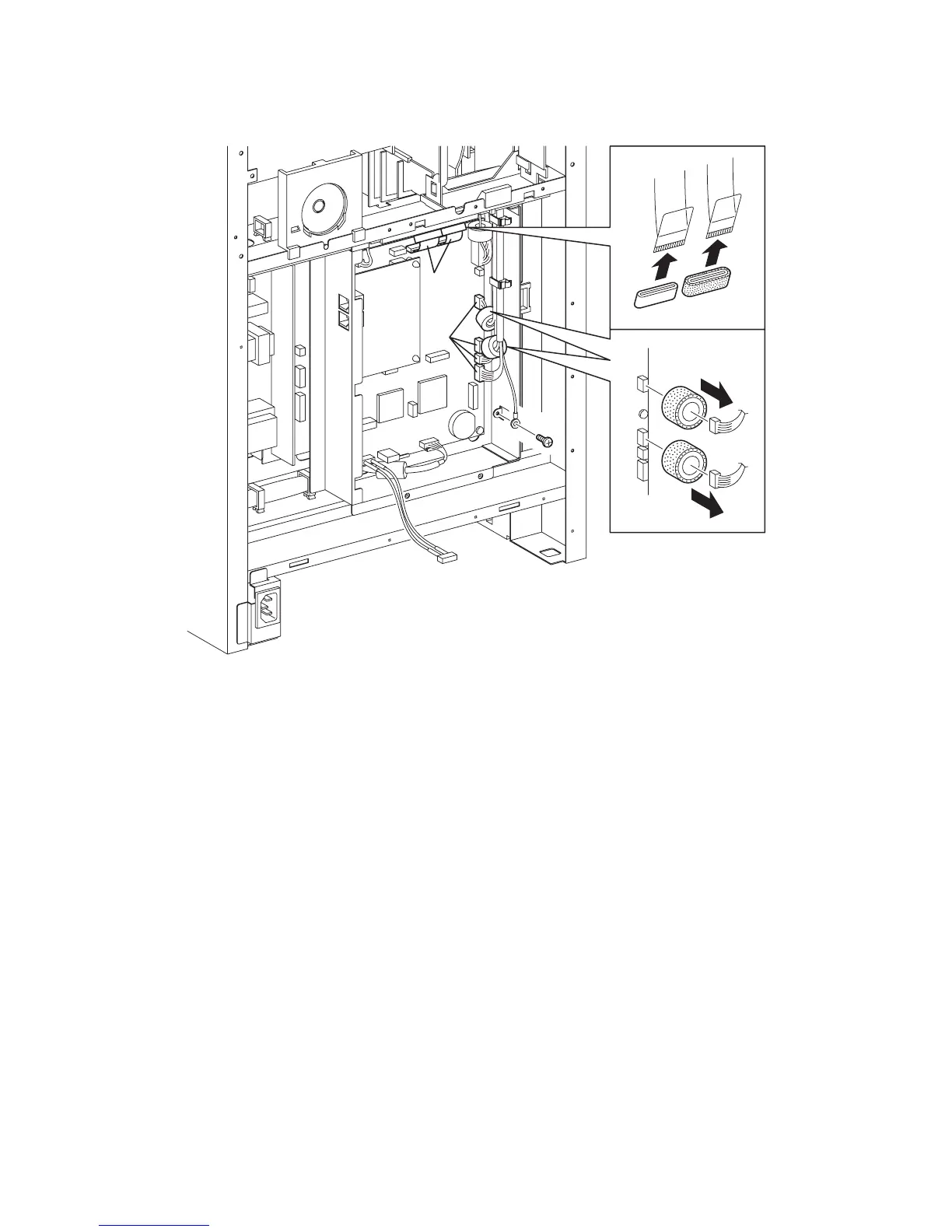

13) Attach the CORE FRC27-12-1.3 to the wider flat cable.
14) Attach the CORE ASSY FRC27 to the narrower flat cable.
15) Attach the CORE ASSY SC-18 to each harness of the connectors (J62, J63).
16) Secure the grand wire of the ADF SCANNER ASSY to the BOX ASSY FAX AIO using the one
screw (silver, 6mm).
17) Engage the four connectors (P/J60, 61, 62, 63) of the harness and connect the two flat cables
(P/J64, 65) to the PWBA HYUI.
Gnb03194KB
17)
17)
16)
13)
14)
15)
15)
