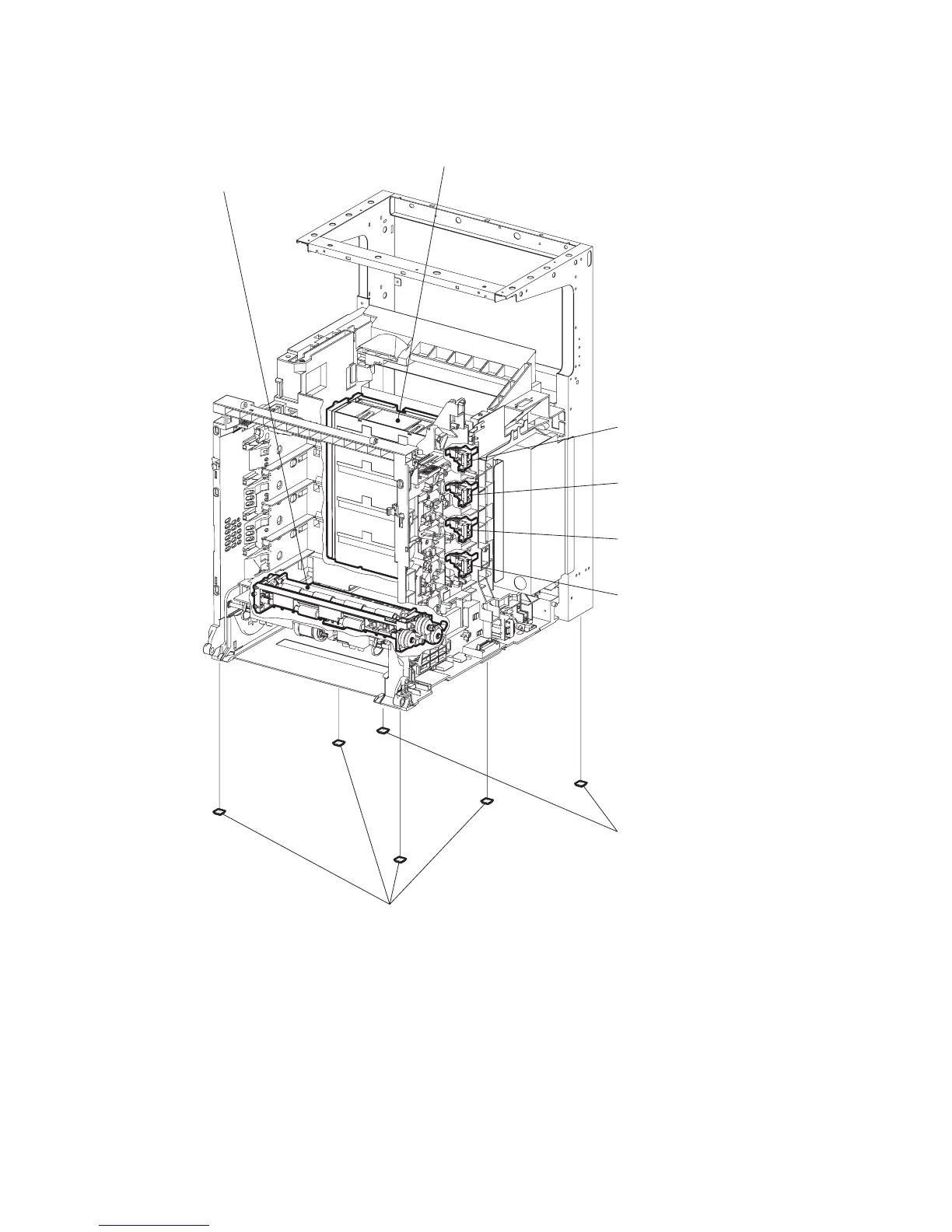

Chapter 5 Parts List
Version 2 2007.03.20
TONER CARTRIDGE
SENSOR ASSEMBLY (K)

[Ref PL5.1.4]
PRINT HEAD
[Ref PL13.3.99]
RUBBER FEET
[Ref PL7.1.99]
TONER CARTRIDGE
SENSOR ASSEMBLY (C)

[Ref PL5.1.4]
TONER CARTRIDGE
SENSOR ASSEMBLY (M)

[Ref PL5.1.4]
TONER CARTRIDGE
SENSOR ASSEMBLY (Y)

[Ref PL5.1.4]
INTEGRATED FEEDER ASSEMBLY
[Ref PL3.2.99]
RUBBER FEET
[Ref PL13.3.7]
Gnb05106KC
