Dell 3115CN - Page 655

5 – 8
Chapter 5 Parts List
Version 1 2006.11.21
Gnb05107K
A

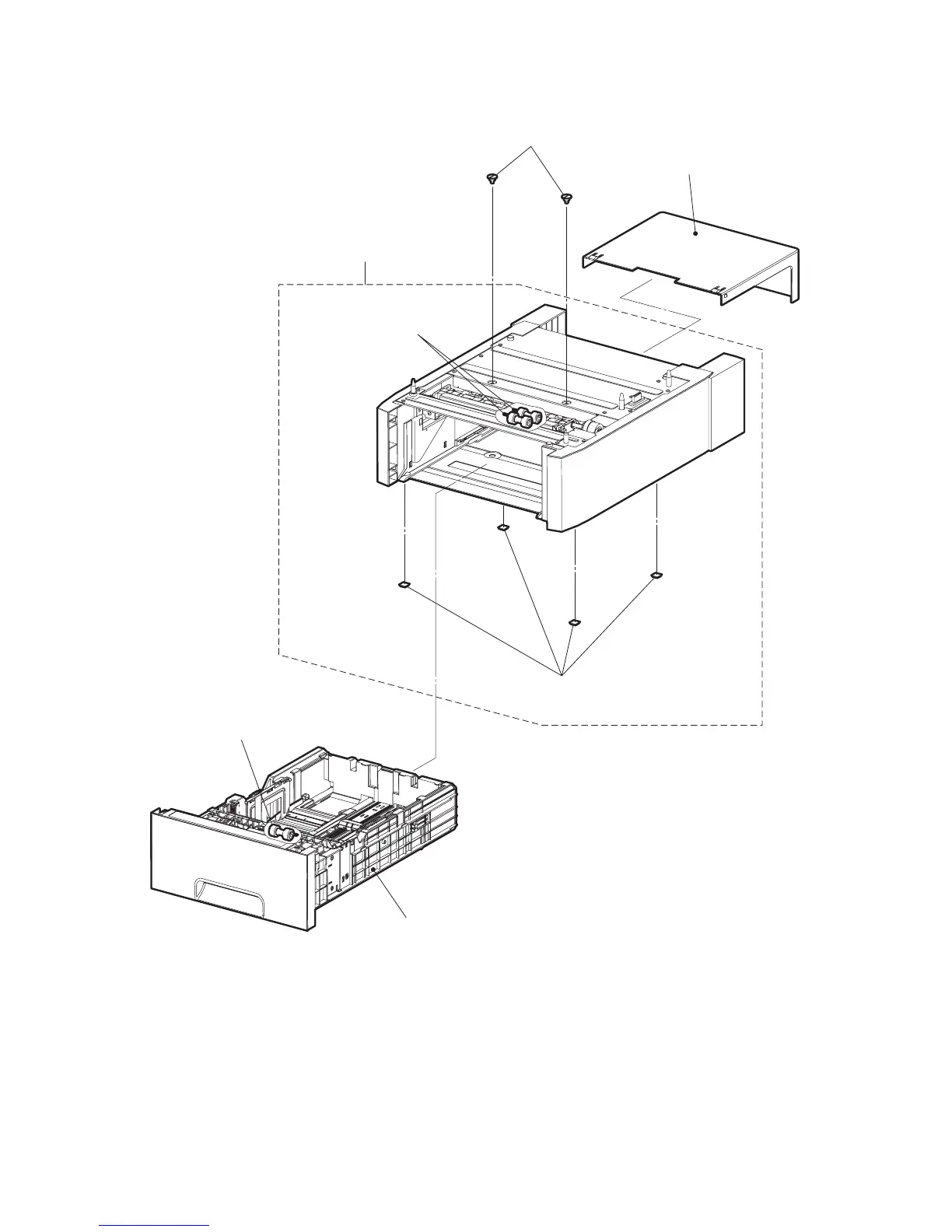

550 SHEET PAPER TRAY
[Ref PL12.4.1]
550 SHEET FEEDER ASSEMBLY
[Ref PL13.7.1]
550 FEEDER RUBBER
[Ref PL12.2.99]
550 TRAY SEPARATOR ROLLER
(Identical 550 TRAY FEED ROLLER)
[Ref PL12.3.99]
550 TRAY FEED ROLLER
[Ref PL12.3.99]
550 TRAY REAR COVER
[Ref PL13.7.4]
FEEDER SCREWS
[Ref PL13.7.99]
