Dell PowerConnect 8024 User Guide

Configuring System Information 145

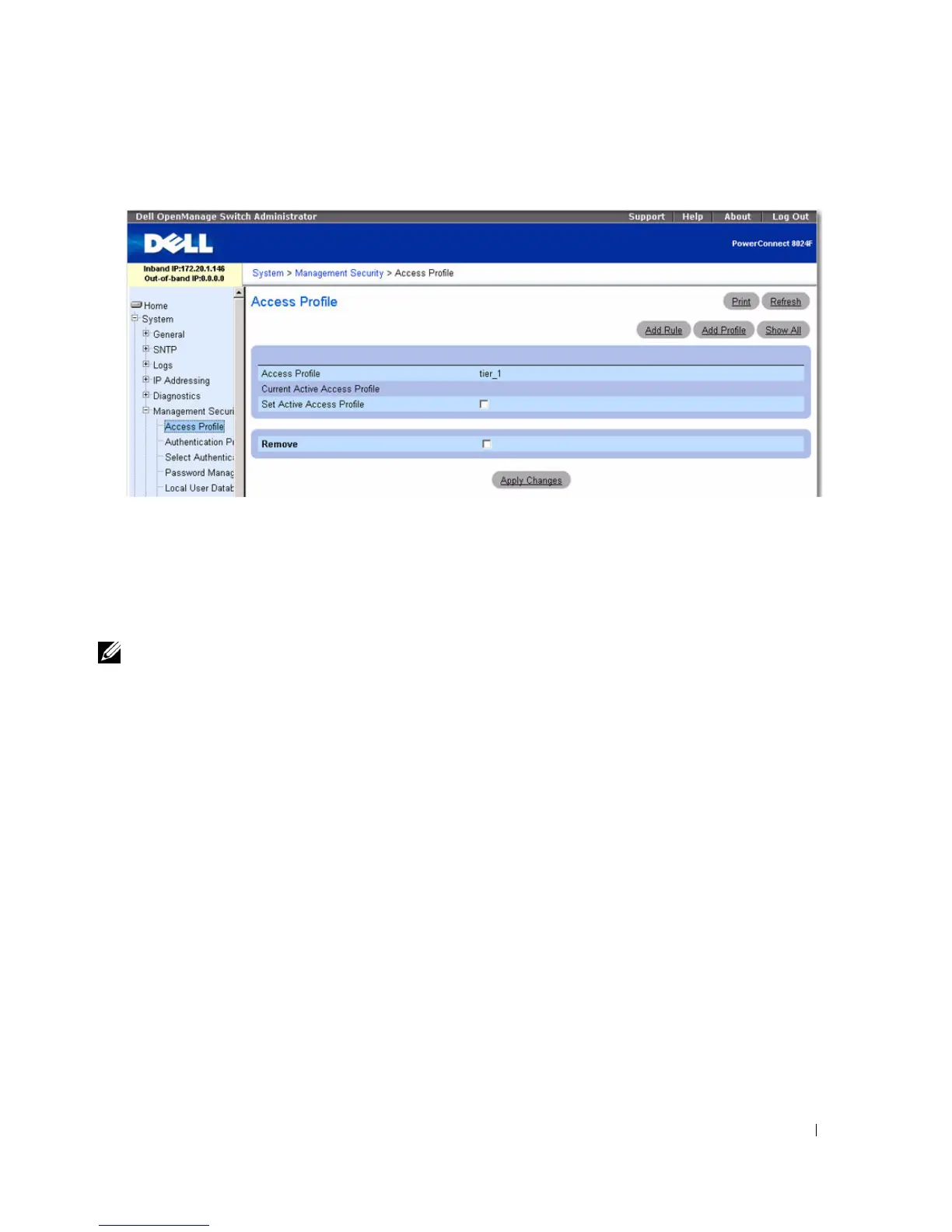

Figure 6-37. Access Profile
The Access Profile page contains the following fields:
• Access Profile — Shows the Access Profile.
•
Current Active Access Profile — Shows profile that is activated.
•
Set Active Access Profile — Activates the access profile.
•
Remove Profile — When checked, removes an access profile from the Access Profile list.
NOTE: Assigning an access profile to an interface implies that access through other interfaces is denied. If an
access profile is not activated, the device can be accessed by all.
Displaying the Access Profile
1. Open the Access Profile page.
2. Click Show All to display the Profile Rules Table page.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
