Dell PowerConnect 8024 User Guide

770 Configuring IP Multicast
BSR Candidate Summary
Use this page to display information about the configured BSR candidates. To display this page, click
IPv4 Multicast
→ PIM → BSR Candidate Summary or IPv6 Multicast → PIM → BSR Candidate
Summary.

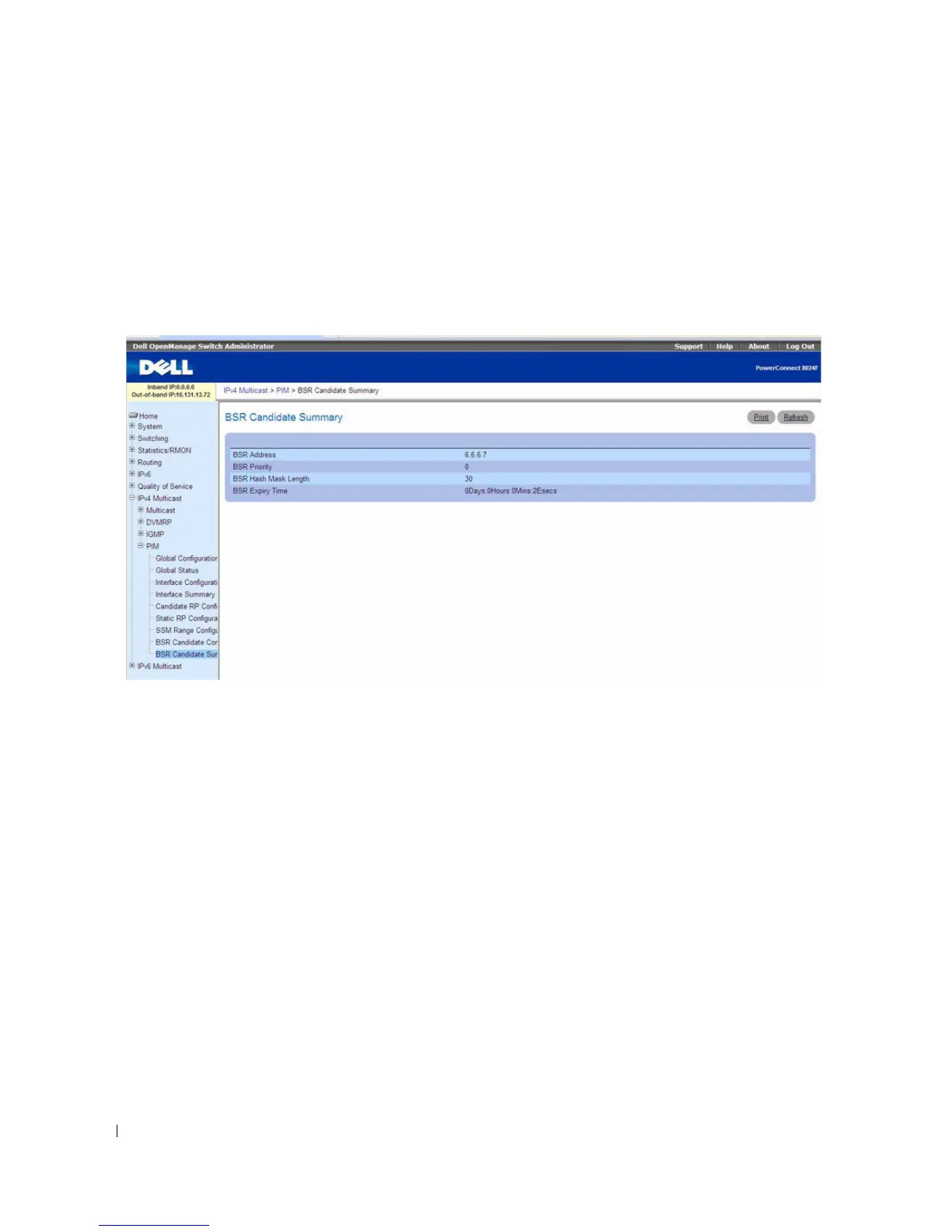

Figure 12-44. BSR Candidate Summary
The BSR Candidate Summary page contains the following fields:
• BSR Address — Displays the IP address of the elected bootstrap router (BSR).
•
BSR Priority — Displays the priority value of the elected BSR.
•
BSR Hash Mask Length — Displays the mask length of the elected BSR.
•
BSR Expiry Time — Time (in hours, minutes, and seconds) in which the learned elected BootStrap
Router (BSR) expires.
Viewing the BSR Candidate Summary Using CLI Commands
For information about the CLI commands that perform this function, see the following chapter in the
CLI Reference Guide:
• PIM-DM or PIM-SM Commands
The following table summarizes the equivalent CLI commands for this feature.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
