Configuring Routing 519
Neighbor Table
Use the OSPF Neighbor Table page to display the OSPF neighbor table list. When a particular neighbor
ID is specified, detailed information about a neighbor is given. The information below is only displayed if
OSPF is enabled.
To display the page, click Routing
→ OSPF → Neighbor Table in the tree view.

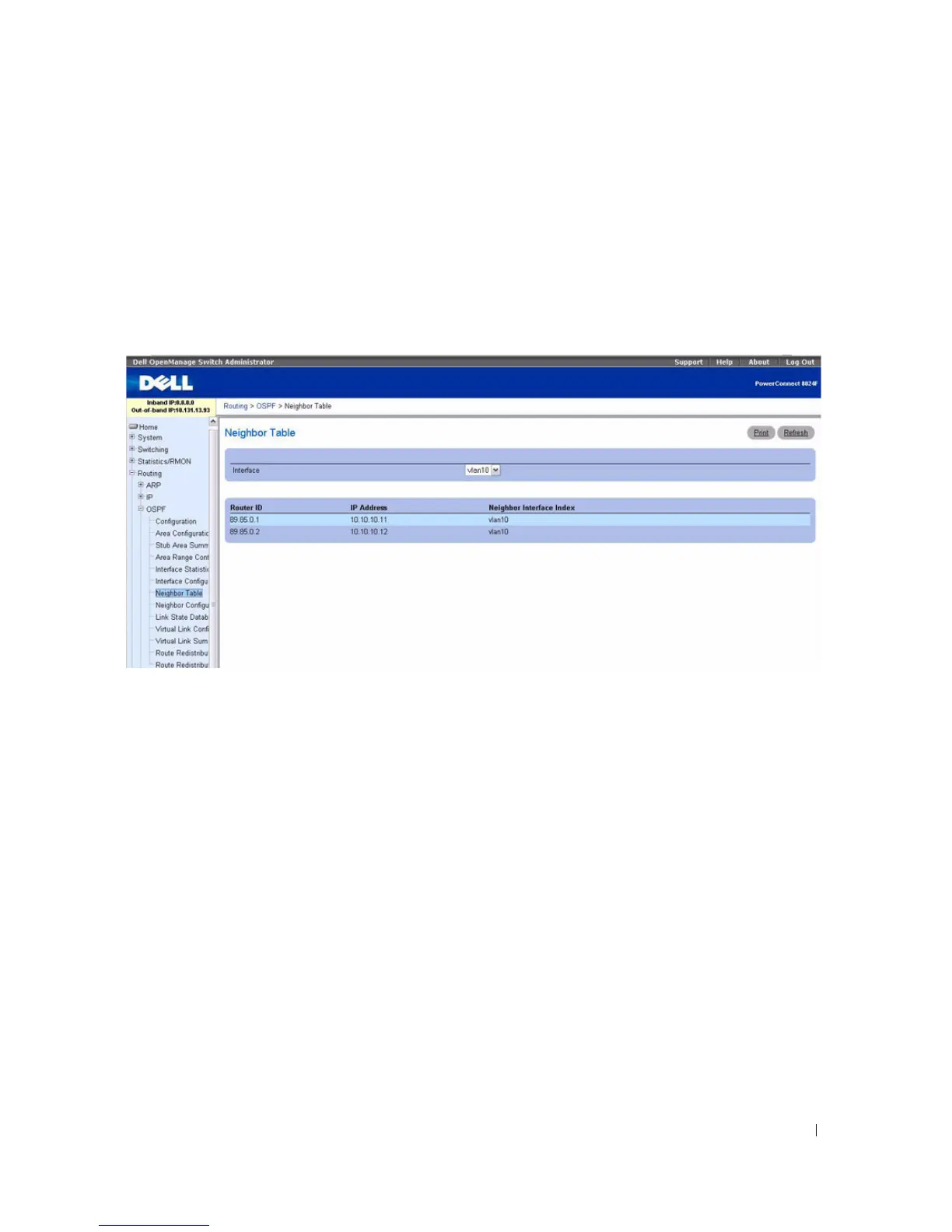

Figure 9-12. OSPF Neighbor Table
The OSPF Neighbor Table page displays the following fields:
• Interface — Select the interface for which data is to be displayed from a drop-down menu.
•
Router ID — A 32-bit integer in dotted decimal format representing the neighbor interface.
•
IP Address — The IP address of the neighboring router's interface to the attached network. It is used
as the destination IP address when protocol packets are sent as unicasts along this adjacency. Also used
in router-LSAs as the Link ID for the attached network if the neighboring router is selected to be
designated router. The Neighbor IP address is learned when Hello packets are received from the
neighbor. For virtual links, the Neighbor IP address is learned during the routing table build process.
•
Neighbor Interface Index — An interface identifying the neighbor interface index.
Displaying the OSPF Neighbor Table Using CLI Commands
For information about the CLI command that performs this function, see the following chapter in the
CLI Reference Guide:
• OSPF Commands
The following table summarizes the equivalent CLI commands for this feature.
