Dell PowerConnect 8024 User Guide

Configuring System Information 213

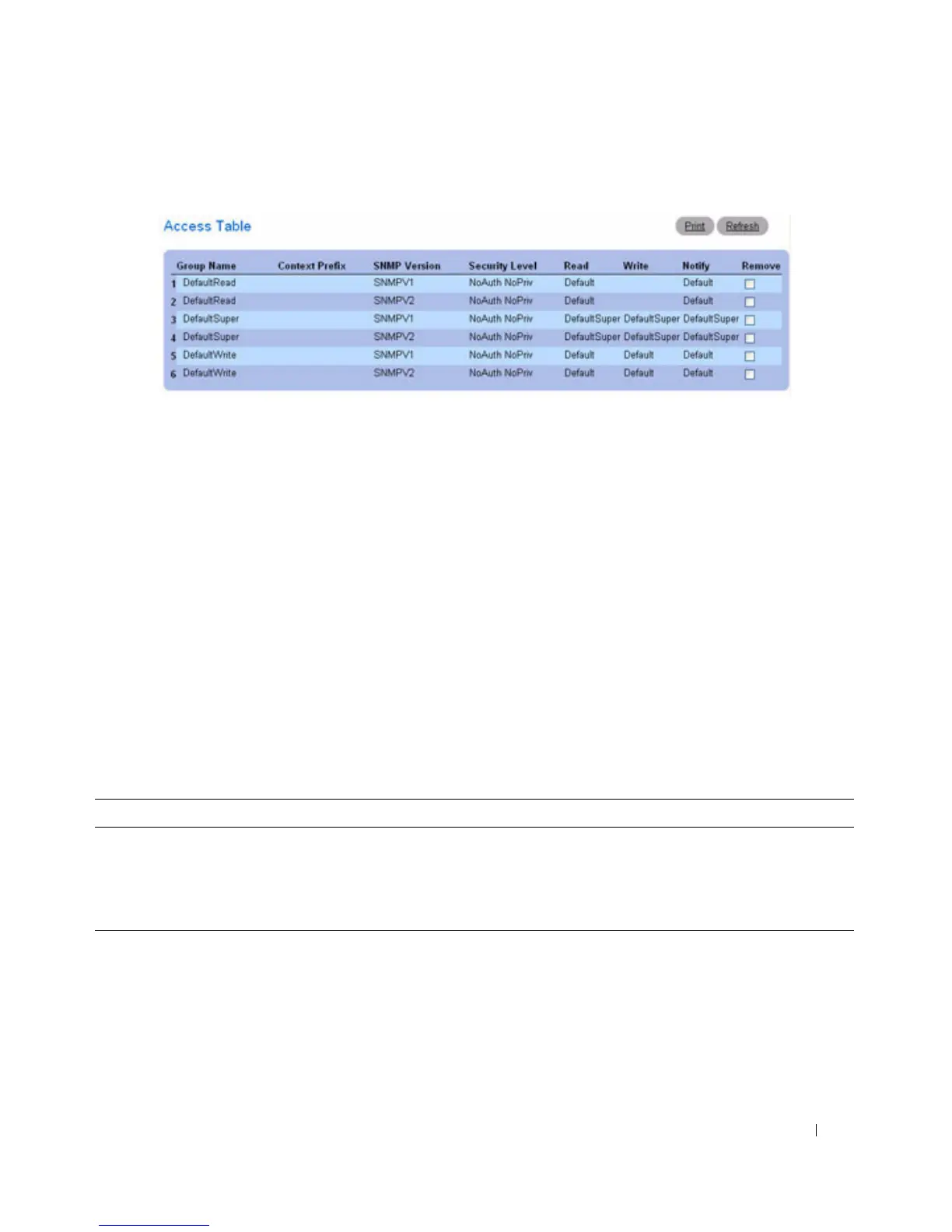

Figure 6-92. Access Table
Removing a Group
1. Open the Access Control Configuration page.
2. Click Show All .
The
Access Table opens.
3. Select a group.
4. Check Remove .
5. Click Apply Changes .
The group is removed, and the device is updated.
Defining SNMP Access Control Using CLI Commands
For information about the CLI commands that perform this function, see the SNMP Commands chapter
in the
CLI Reference Guide . The following table summarizes the equivalent CLI commands you use to
define SNMP Access Control.
SNMPv3 User Security Model (USM)
Use the SNMPv3 User Security Model (USM) page to assign system users to SNMP groups and to
define the user authentication method.
To display the SNMPv3 User Security Model (USM) page, click System
→ SNMP → User Security
Model in the
tree view.
Table 6-43. SNMP Access Control Commands
CLI Command Description
snmp-server group Configures a new SNMP group or a table that maps SNMP users to
SNMP views.
snmp-server community-group Maps SNMP v1 and v2 security models to the group name.
show snmp groups Displays the configuration of groups.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
