Dell PowerConnect 8024 User Guide

596 Configuring IPv6
Global Configuration
Use the Global Configuration page to enable IPv6 forwarding on the router, enable the forwarding of
IPv6 unicast datagrams, and configure global IPv6 settings.
To display the page, click IPv6
→ Global Configuration in the tree view.

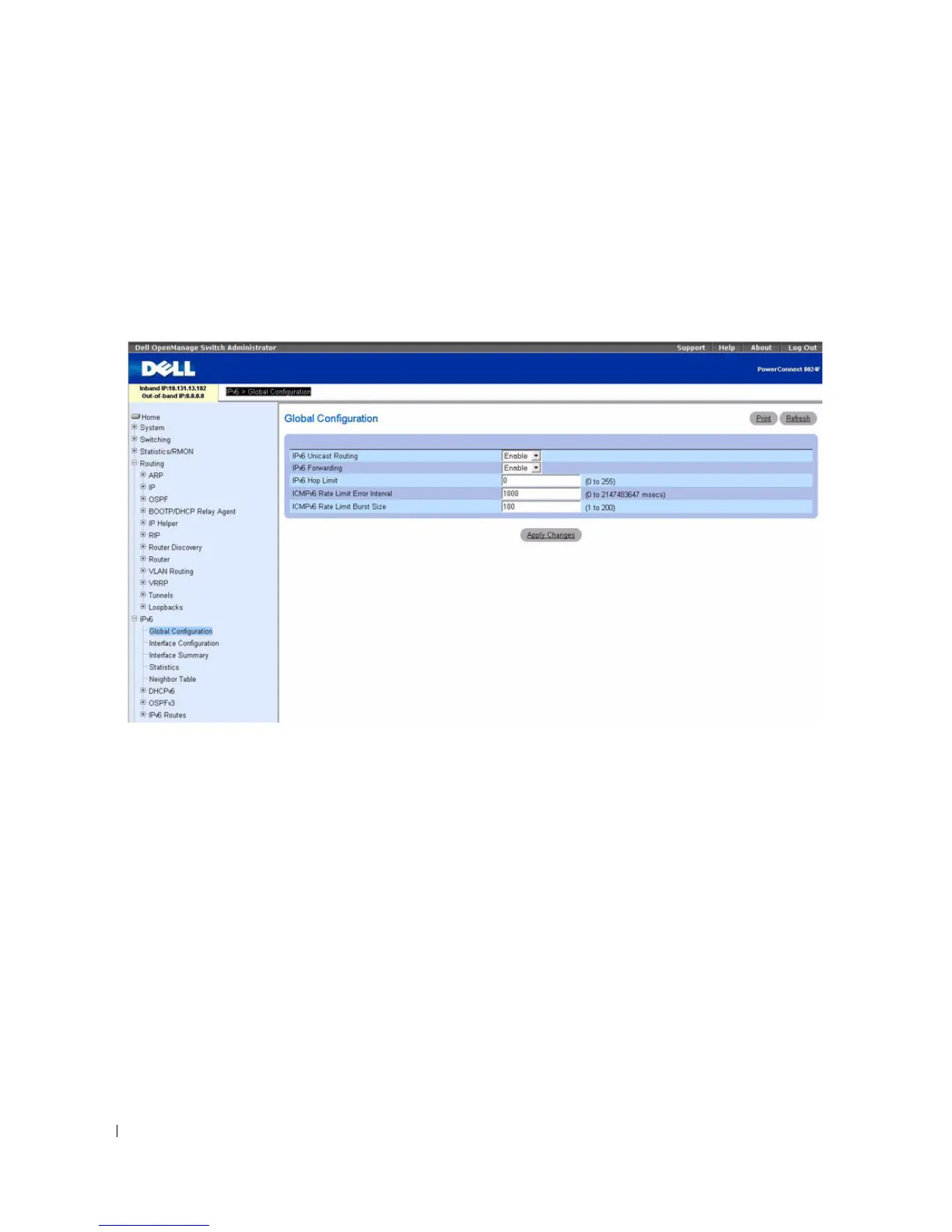

Figure 10-1. IPv6 Global Configuration
The IPv6 Global Configuration page contains the following fields:
• IPv6 Unicast Routing — Globally enable or disable IPv6 unicast routing on the router. The default is
Disable.
•
IPv6 Forwarding — Enable or disable forwarding of IPv6 frames on the router. The default is Enable.
•
IPv6 Hop Limit — Specifies the TTL value for the router.
•
ICMPv6 Rate Limit Error Interval — To control the ICMPv6 error packets, specify the number of
ICMP error packets that are allowed per burst interval. The default Rate Limit is 100 packets per
second. In other words, the burst interval is 1000 milliseconds. To disable ICMP Rate Limiting, set this
value to zero. The Error Interval range is 0–2147483647.
•
ICMPv6 Rate Limit Burst Size — To control the ICMPv6 error packets, specify the number of ICMP
error packets that are allowed per burst interval. The default Burst Size is 100 packets. The valid Burst
Size must be in the range of 1 to 200.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
