634 Configuring IPv6
OSPFv3 Area Range Configuration
Use the OSPFv3 Area Range Configuration page to configure OSPFv3 area ranges.
To display the page, click IPv6
→ OSPFv3 → Area Range Configuration in the tree view.

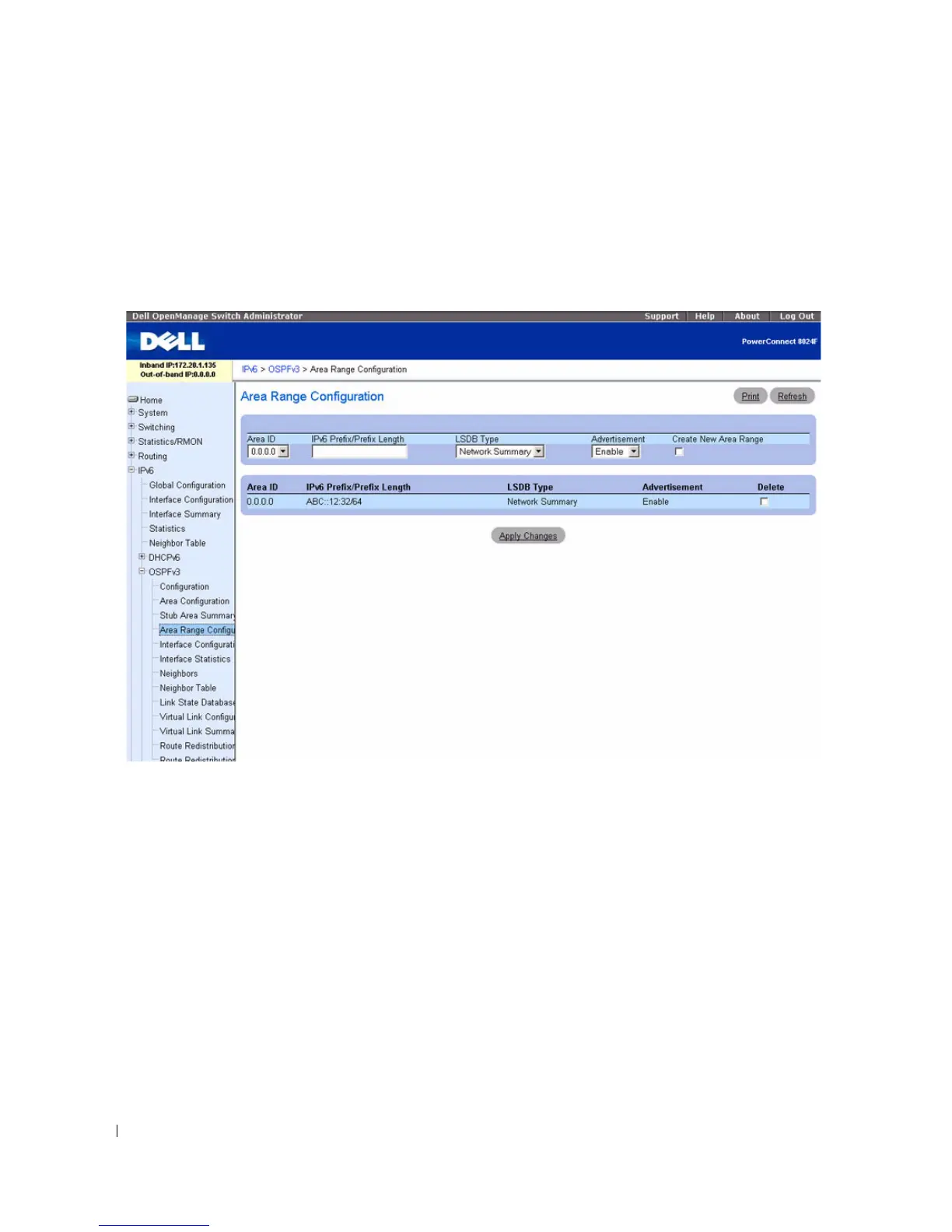

Figure 10-21. OSPFv3 Area Range Configuration
The OSPFv3 Area Range Configuration page contains the following fields:
• Area ID — Selects the area for which data is to be configured.
•
IPv6 Prefix/Prefix Length — Enter the IPv6 Prefix/Prefix Length for the address range for the selected
area.
•
LSDB Type — Select the type of Link Advertisement associated with the specified area and address
range. The default type is Network Summary.
•
Advertisement — Select Enable or Disable from the drop-down menu. If you selected Enable, the
address range is advertised outside the area through a Network Summary LSA. The default is Enable.
•
Create New Area Range — Click this check box to create a new OSPFv3 area range using the values
you specified.
•
Area ID — The OSPFv3 area.
•
IPv6 Prefix — The IPv6 Prefix of an address range for the area.
