Dell PowerConnect 8024 User Guide

452 Configuring Switching Information
The PFC Configuration page contains the following fields:
• Interface — Select the Unit/Port or LAG from drop-down menus for PFC treatment. Click Global to
specify all interfaces.
•
PFC Admin Mode — Sets the Admin Mode to enable or disable PFC on the selected interface.
•
PFC Status — Displays the operational status (Active/Inactive) of PFC on the selected interface.
•
Action — Select the action ( Drop / No-Drop ) to be applied for the corresponding Priority value on the
selected interface.
PFC Statistics
Use the PFC Statistics page to view the PFC statistics for interfaces on the switch.
To display the PFC Statistics page, click Switching
→ PFC → PFC Statistics in the navigation menu.

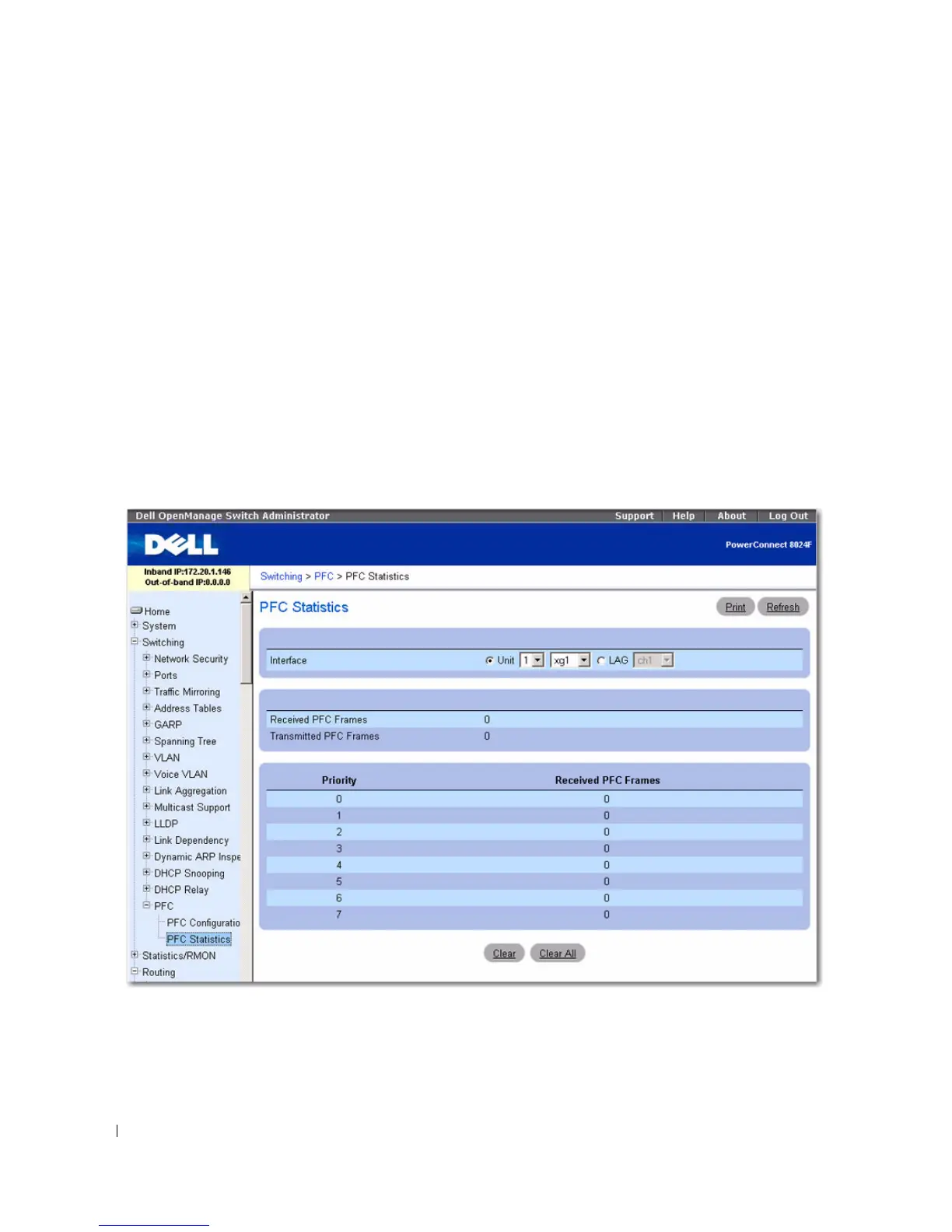

Figure 7-132. PFC Statistics
The PFC Statistics page contains the following fields:
• Received PFC Frames — Displays the total number of PFC frames that have been received by
selected interface.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
