Dell PowerConnect 8024 User Guide

Configuring System Information 237
Trap Flags
The Trap Flags page is used to specify which traps you want to enable or disable. When the condition
identified by an active trap is encountered by the switch, a trap message is sent to any enabled SNMP
Trap Receivers, and a message is written to the trap log.
To access the Trap Flags page, click System
→ Trap Manager → Trap Flags in the navigation tree.

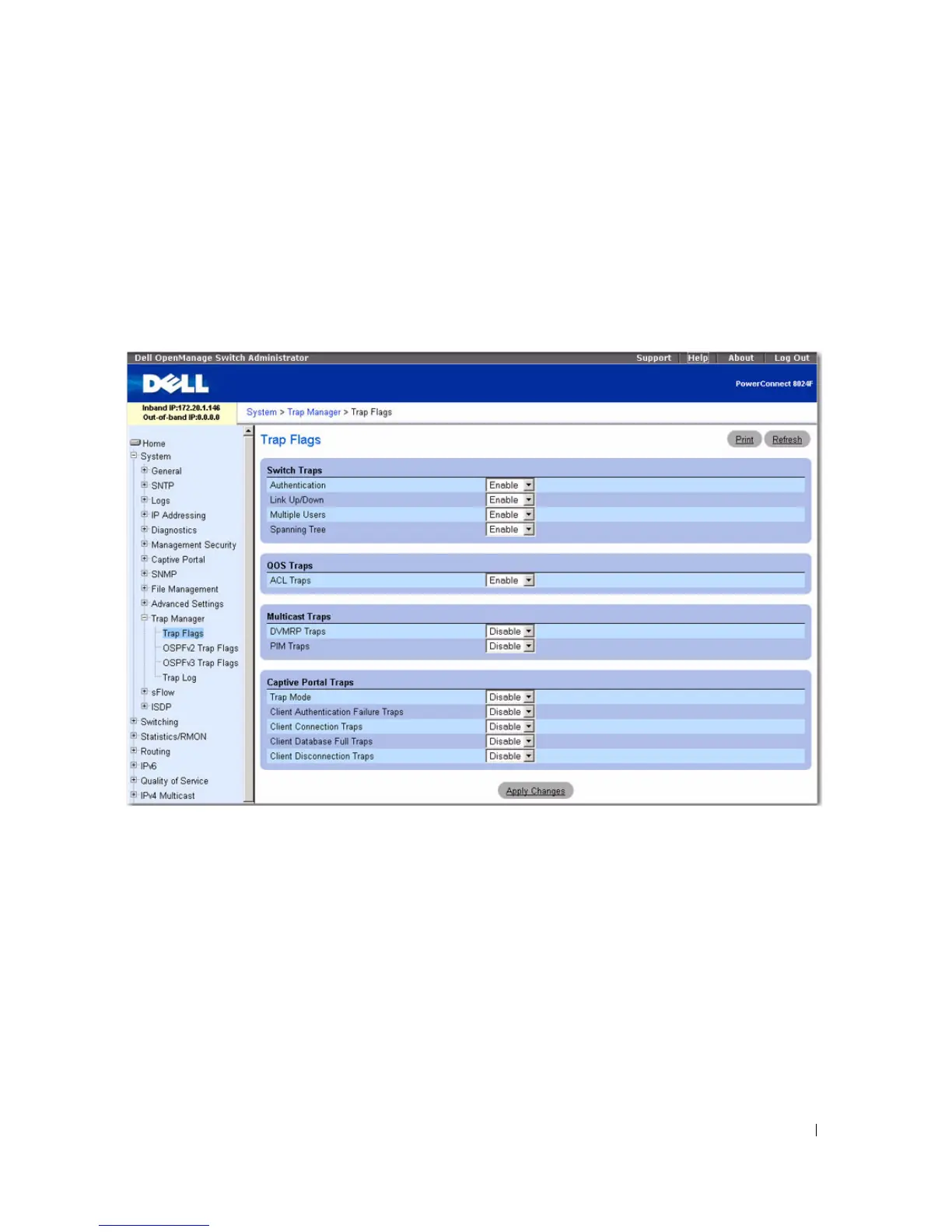

Figure 6-112. Trap Flags
The Trap Flags page contains the following fields:
•Switch Traps
– Authentication — Enable or disable activation of authentication failure traps by selecting the
corresponding line on the pull-down entry field. The factory default is enabled.
–
Link Up/Down — Enable or disable activation of link status traps by selecting the corresponding
line on the pull-down entry field. The factory default is enabled.
–
Multiple Users — Enable or disable activation of multiple user traps by selecting the
corresponding line on the pull-down entry field. The factory default is enabled. This trap is
triggered when the same user ID is logged into the switch more than once at the same time (either
via telnet or the serial port).

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
