Dell PowerConnect 8024 User Guide

462 Viewing Statistics and Remote Monitoring
EAP Statistics
Use the EAP Statistics page to display information about EAP packets received on a specific port. For
more information about EAP, see "Dot1x Authentication."
To display the EAP Statistics page, click Statistics/RMON
→ Table Views → EAP Statistics in the tree
view
.

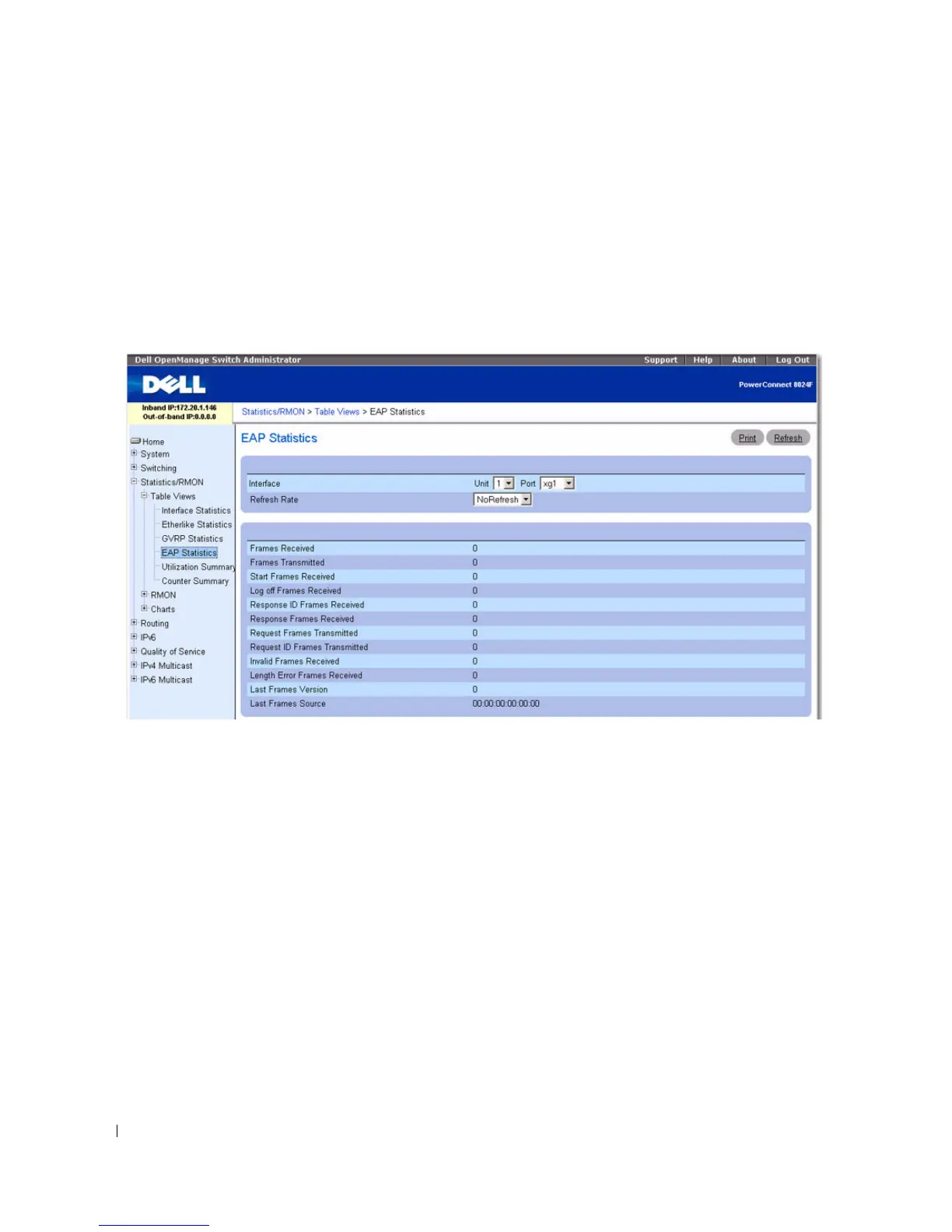

Figure 8-4. EAP Statistics
The EAP Statistics page contains the following fields:
• Interface — Specifies the interface which is polled for statistics.
•
Refresh Rate — Specifies amount of time that passes before statistics are refreshed. The possible field
values are No Refresh, 15, 30, and 60 seconds. Default is No Refresh.
•
Frames Received — Displays the number of valid EAPOL frames received on the port.
•
Frames Transmitted — Displays the number of EAPOL frames transmitted through the port.
•
Start Frames Received — Displays the number of EAPOL Start frames received on the port.
•
Log off Frames Received — Displays the number of EAPOL Log off frames that have been received
on the port.
•
Respond ID Frames Received — Displays the number of EAP Respond ID frames that have been
received on the port.
•
Respond Frames Received — Displays the number of valid EAP Respond frames received on the port.

Dell PowerConnect 8024 Specifications

General

Switching Capacity	480 Gbps
Stackable	Yes
Device Type	Switch
Enclosure Type	Rack-mountable
Power Redundancy	Optional
Width	17.3 in
Height	1.7 in
Jumbo Frame Support	Yes
Ports	24 x 10 Gigabit SFP+
Management	Web-based GUI, Command Line Interface (CLI), SNMP
VLAN Support	Yes
Power Supply	Internal
Routing Protocol	Static routing
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Operating Temperature	0 to 45 °C
Storage Temperature	-20 to 70 °C
Relative Humidity	10% to 90% (non-condensing)
MAC Address Table Size	32, 000 entries
