The following table summarizes the equivalent CLI commands for this feature.
PIM Global Status
Use the PIM Global Status
page to view the administrative status of PIM-DM or PIM-SM on the
switch.
To display the page, click IPv4 Multicast
→
PIM
→
Global Status or IPv6 Multicast
→
PIM
→
Global
Status in the tree view.

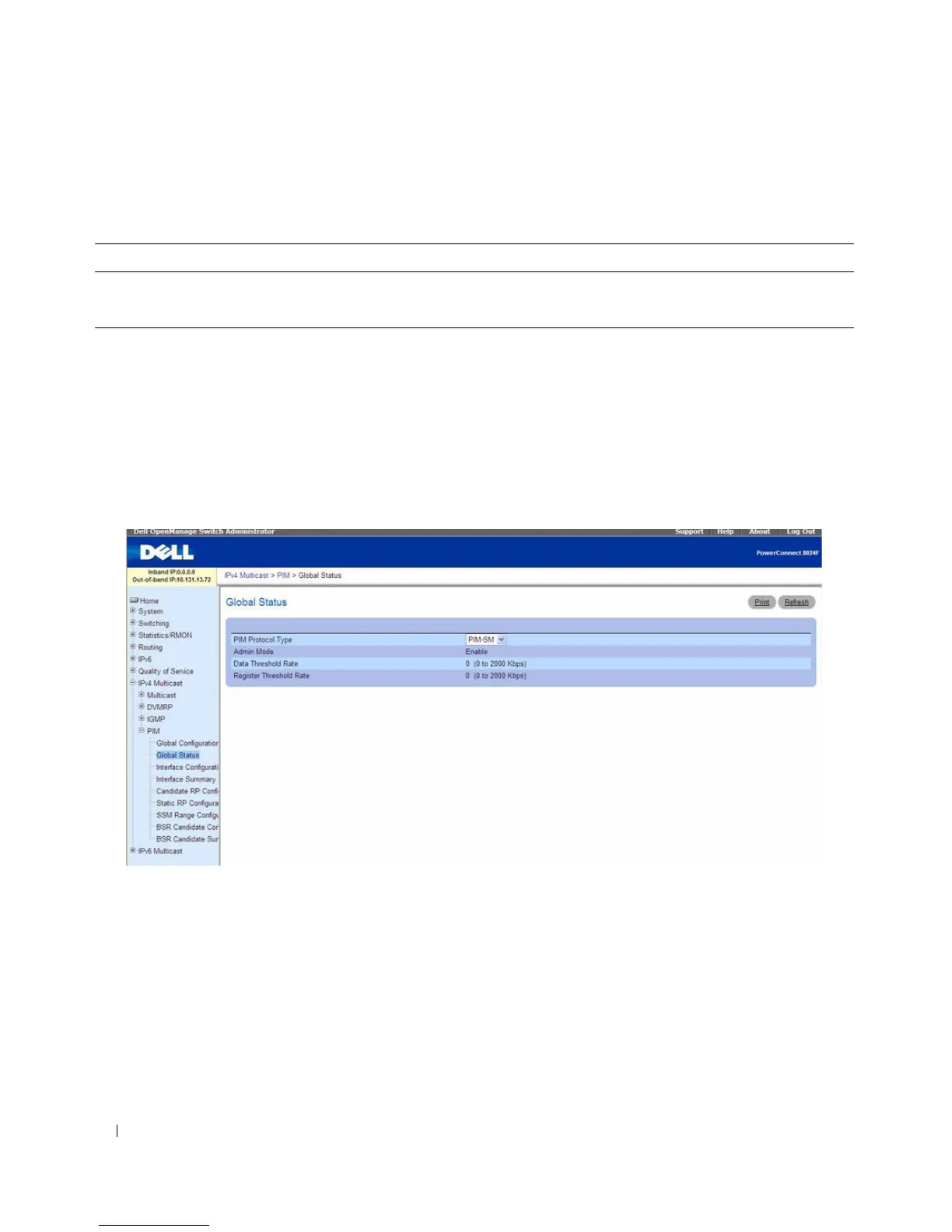

Figure 12-34. PIM Global Status
The PIM Global Status page contains the following fields:
•
PIM Protocol
— Select PIM-DM or PIM-SM. Only one PIM protocol can be enabled on the switch at
a time. If you select PIM-SM, additional fields appear.
•
Admin Mode
— Displays the administrative status of the selected PIM protocol on the system.
•
Data Threshold Rate
— If PIM-SM is selected as the protocol, shows the minimum source data rate in
Kbps above which the last-hop router switches to a source-specific shortest path tree.
•
Register Threshold Rate
— If PIM-SM is selected as the protocol, shows the minimum source data
rate in Kbps above which the Rendezvous Point router switches to a source-specific shortest path tree.
Table 12-32. PIM Global Configuration Commands
CLI Command Description
ip pimdm Enables the administrative mode of PIM-DM in the router.
ip pimsm Enables the administrative mode of PIM-SM in the router.
